Sale!

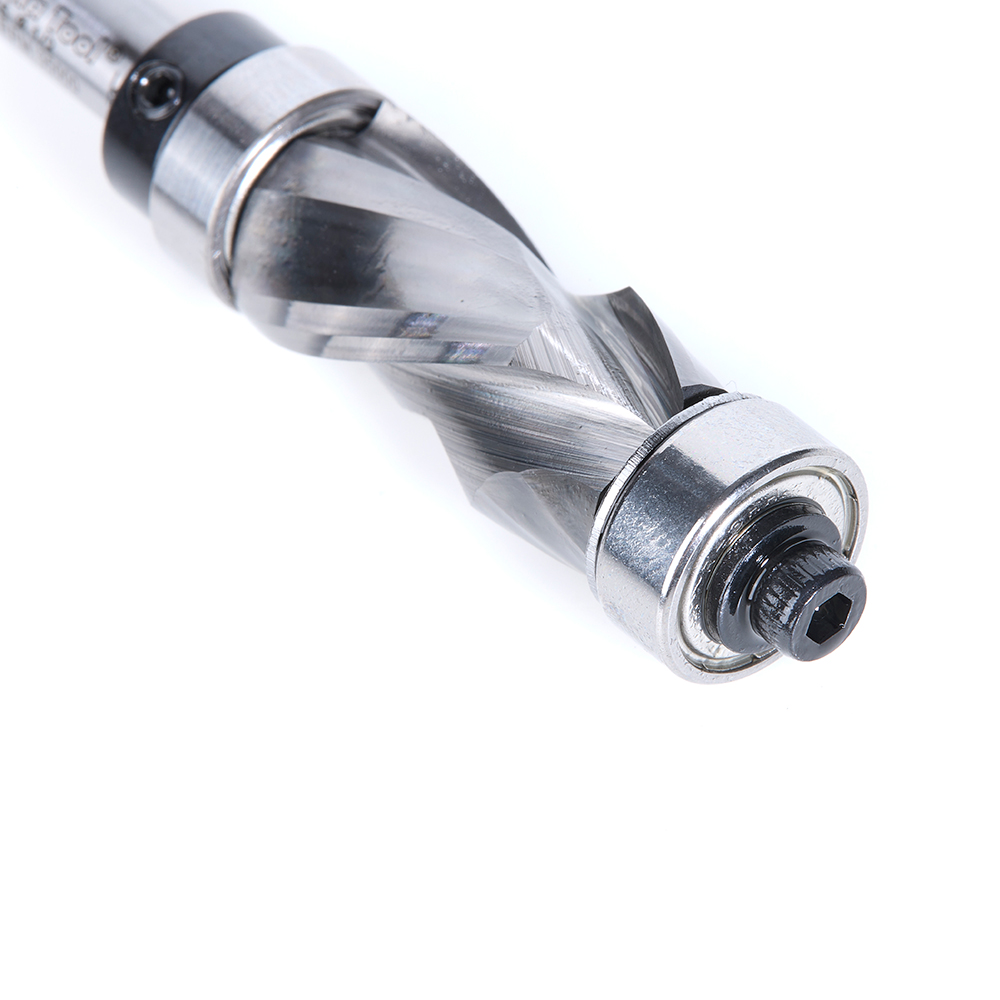

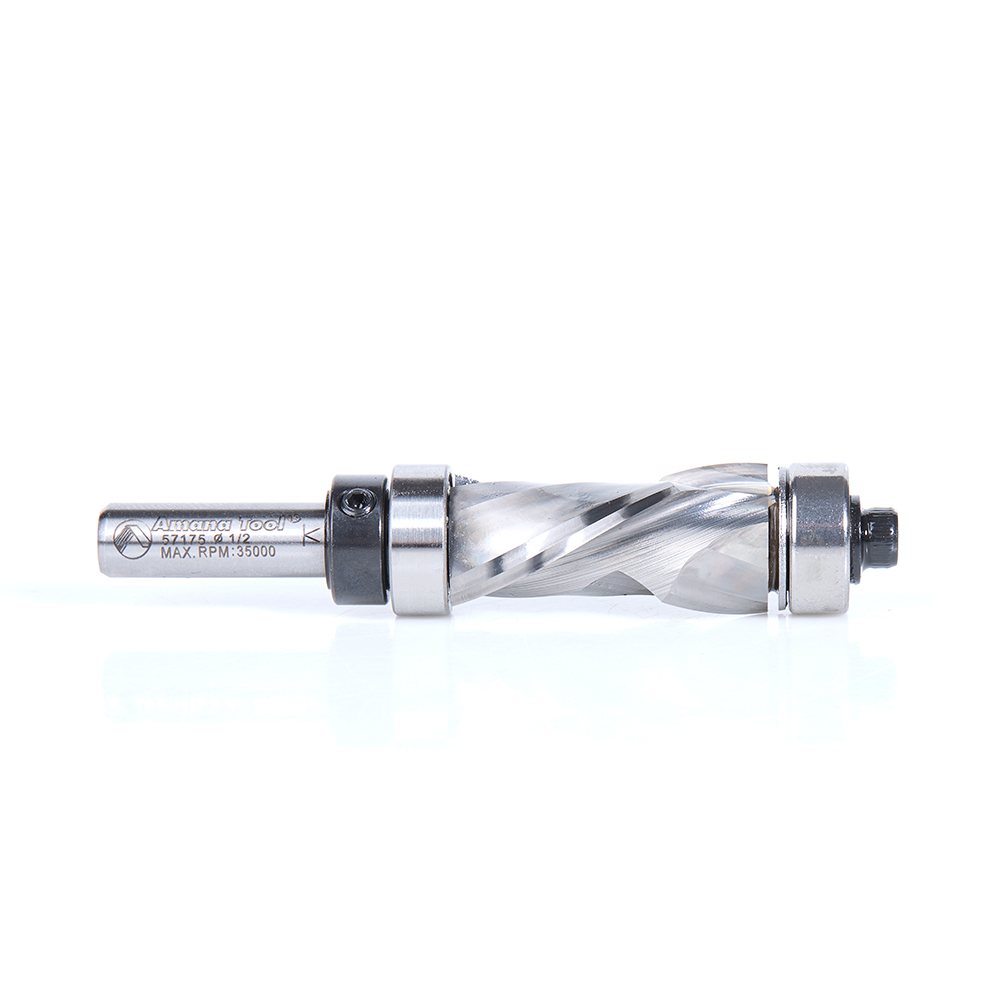

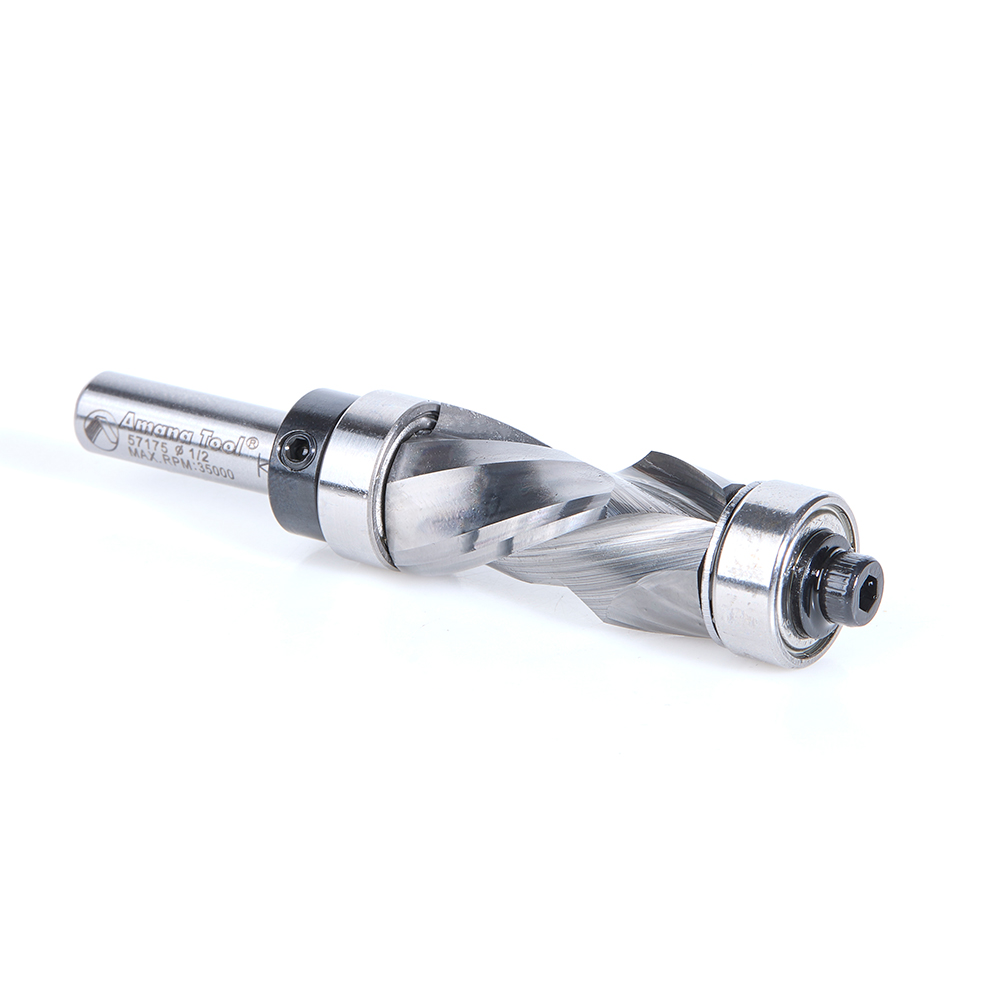

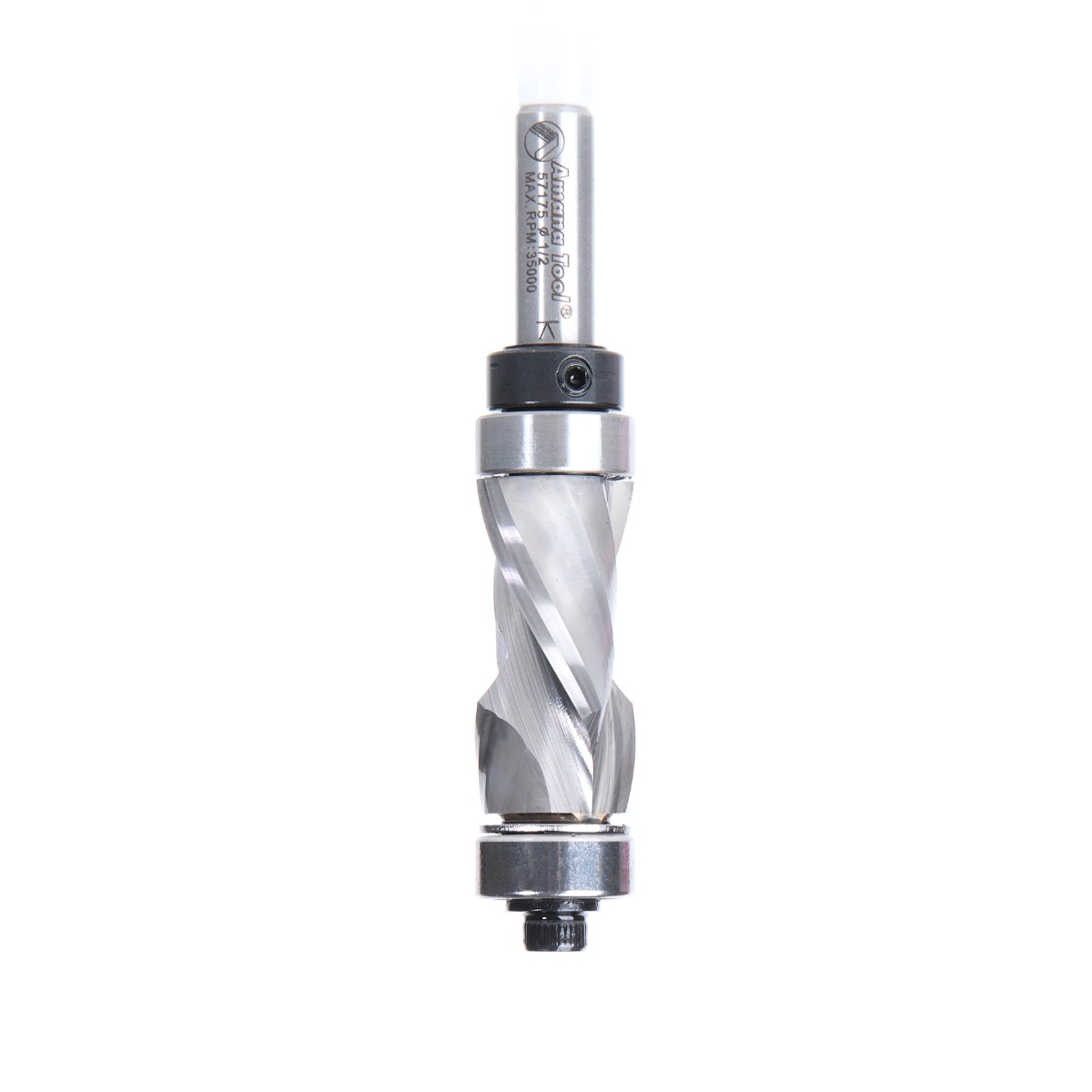

57175 Solid Carbide (Brazed To Steel Shank) Spiral Flush Trim Compression 1/2 Dia x 1 x 1/4 Inch Shank With Upper And Lower Ball Bearings

Amana 57175 Solid Carbide (Brazed To Steel Shank) Spiral Flush Trim Compression 1/2 Dia x 1 x 1/4 Inch Shank With Upper And Lower Ball Bearings

Name: Amana 57175 Solid Carbide (Brazed To Steel Shank) Spiral Flush Trim Compression 1/2 Dia x 1 x 1/4 Inch Shank With Upper And Lower Ball Bearings
SKU: Amana 57175
Availability: InStock

Original price was: $217.80.Current price is: $163.35.

1/2″ SPIRAL FLUSHTRIM COMPRESS

UPC: N/A SKU: Amana 57175 Categories: Amana Tool, Router Bits, Solid Carbide Spiral Flush Trim Compression Router Bits, Trimming Router Bits

Item Description

Plunge-cutting straight with a shank-mounted ball-bearing pilot. Useful for template/pattern routing or parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template.

Replacement Parts

Replacement Top Bearing	Replacement Bottom Bearing
47706	47701

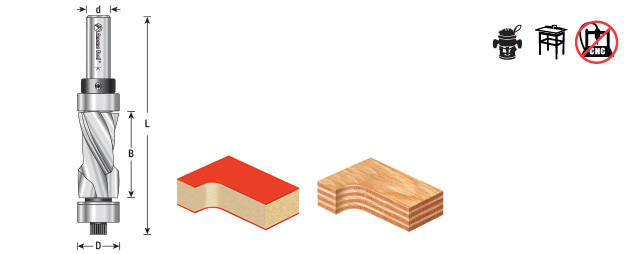

Specifications

Diameter (D)	1/2
Cutting Height (B)	1
Shank (d)	1/4
Overall Length (L)	2-5/8
Replacement Bearing	Top: 47706 Bottom: 47701
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	3-1/4	47706, 47701	3	58182
3/4 (19.05mm)	1-1/8	1/2 (12.70mm)	3-1/2	47830, 47798	2	58183
7/8 (22.23mm)	1-1/8	1/2 (12.70mm)	3-3/4	47830, 47798	2	57178
7/8 (22.23mm)	1-5/8	1/2 (12.70mm)	4-1/4	47830, 47798	2	58180

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
