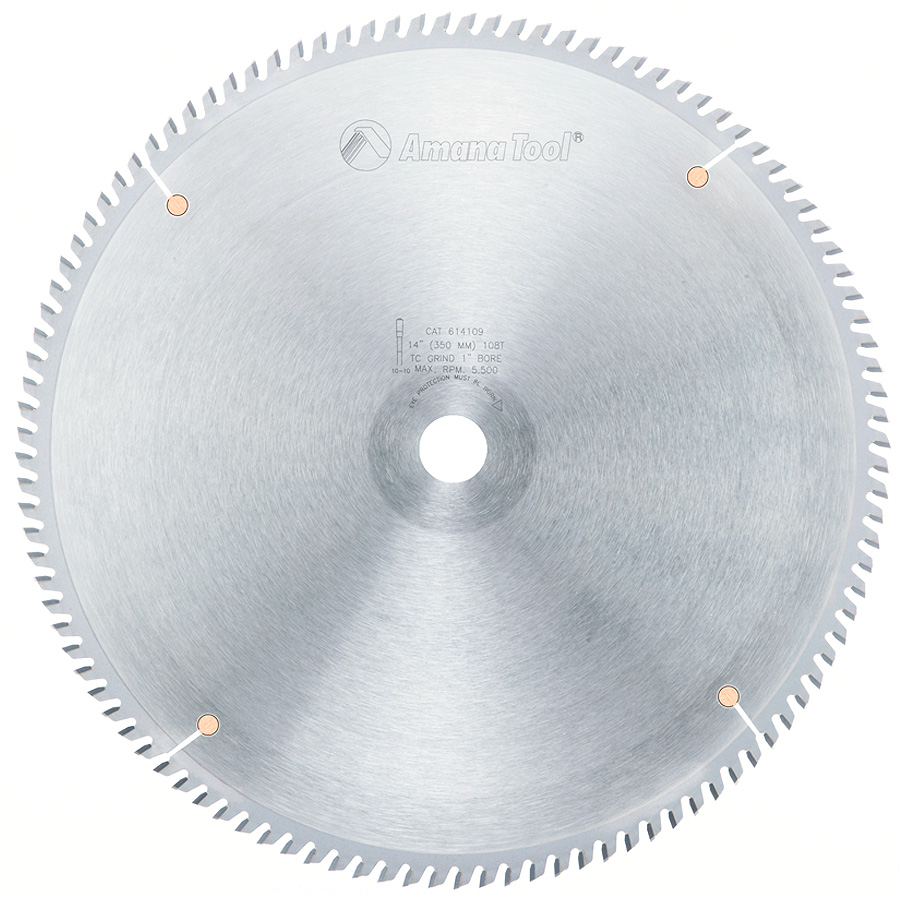

614109 Carbide Tipped Fine Cut-Off and Crosscut 14 Inch Dia x 108T TCG, 10 Deg, 1 Inch Bore

Amana 614109 Carbide Tipped Fine Cut-Off and Crosscut 14 Inch Dia x 108T TCG, 10 Deg, 1 Inch Bore

Name: Amana 614109 Carbide Tipped Fine Cut-Off and Crosscut 14 Inch Dia x 108T TCG, 10 Deg, 1 Inch Bore
SKU: Amana 614109
Availability: InStock

Original price was: $294.70.Current price is: $221.03.

14″/108T TRIM SAW T.C.G.GRIND

UPC: 738685641095 SKU: Amana 614109 Categories: Amana Tool, Cut-Off & Crosscut Saw Blades, Saw Blades, Single and Double Sided Laminate Cutting Saw Blades

Item Description

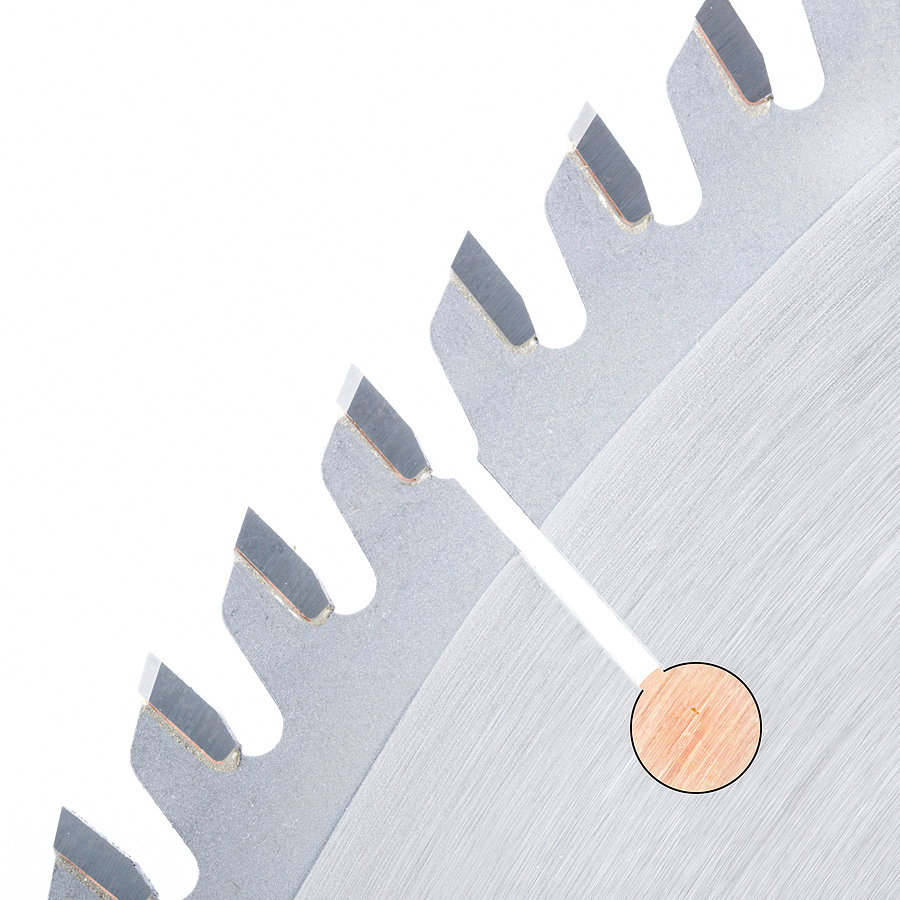

This blade is ideal for cutting materials with fragile surface layers, like veneers and laminates. High tooth counts yield smooth finishes. The 10° hook angle provides effortless feeding. The triple-chip tooth opens a narrow kerf, and the raker widens it.

Specifications

(D) Diameter	14 (350mm)
Teeth	108
(d) Bore	1
Tooth Grind	TCG
Hook Angle	10°
Kerf (B)	.137 (3.5mm)
Plate (C)	.098 (2.5mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
8	64	TCG	.118	.079	5/8 (15.88mm)	–	686401
10	80	TCG	.126	.087	5/8 (15.88mm)	–	610801
10	80	TCG	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	610801-30
10	80	TCG	.126	.087	5/8 (15.88mm)	–	610801C
12	96	TCG	.126	.087	1 (25.40mm)	–	612961
12	96	TCG	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612961-30
14	108	TCG	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614109-30
16	120	TCG	.137	.098	1 (25.40mm)	–	616129

Weight	5.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
