Sale!

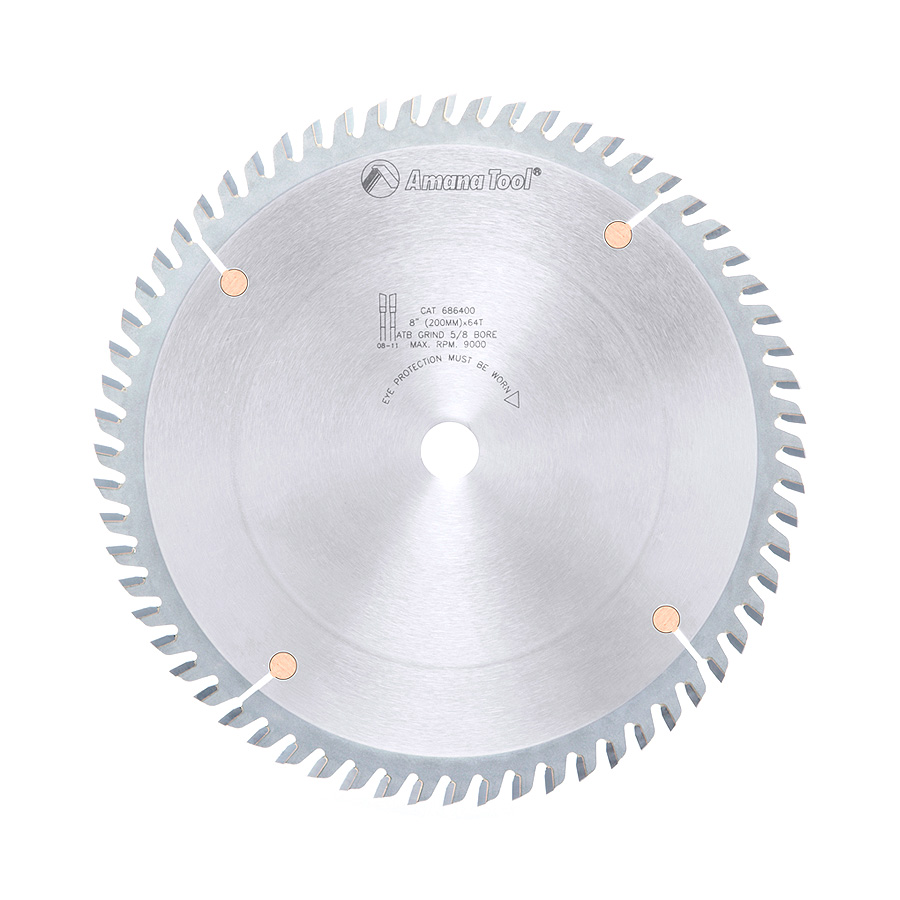

686400 Carbide Tipped Trim 8 Inch Dia x 64T ATB, 10 Deg, 5/8 Bore

Amana 686400 Carbide Tipped Trim 8 Inch Dia x 64T ATB, 10 Deg, 5/8 Bore

Name: Amana 686400 Carbide Tipped Trim 8 Inch Dia x 64T ATB, 10 Deg, 5/8 Bore
SKU: Amana 686400
Availability: InStock

Original price was: $214.15.Current price is: $160.62.

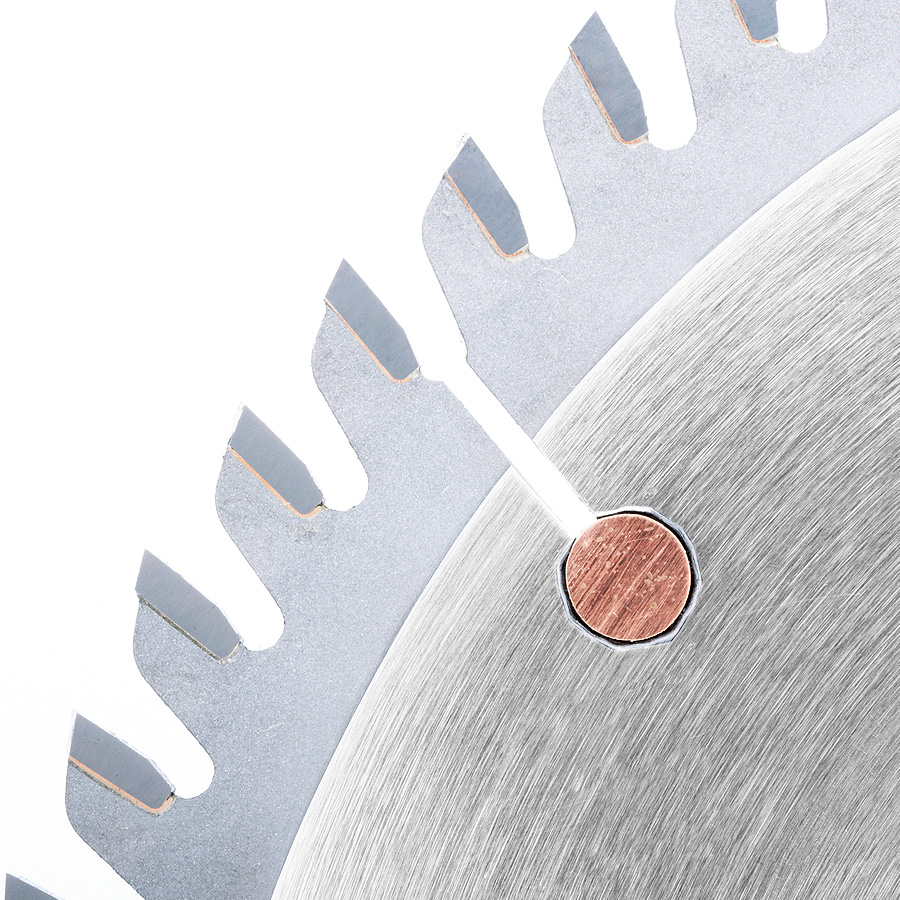

8″/64T TRIM SAW A.T.B. GRIND

UPC: 738685686409 SKU: Amana 686400 Categories: Amana Tool, Cut-Off & Crosscut Saw Blades, Plywood / Solid Wood / Chipboard Cutting Saw Blades For Extra Smooth Cut, Saw Blades

Item Description

Our trim blade, suitable for use on table saws, sliding table saws, radial arms, and miter saws of all types, leaves a super-smooth finish when cutting hard or softwood. It is especially suited to trimming and sizing veneers and laminates, in single sheets or in stacks. The alternate top bevel grind and high tooth counts produce excellent, chip-free cuts. The 10° hook angle provides effortless feeding.

Specifications

(D) Diameter	8 (200mm)
Teeth	64
(d) Bore	5/8
Tooth Grind	ATB
Hook Angle	10°
Kerf (B)	.118 (3.0mm)
Plate (C)	.079 (2.0mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
220mm	64	ATB	.118	.079	30mm	2/7/42	220T640
10	80	ATB	.126	.087	5/8 (15.88mm)	–	610800
10	80	ATB	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	610800-30
10	80	ATB	.126	.087	5/8 (15.88mm)	–	610800C
12	96	ATB	.126	.087	1 (25.40mm)	–	612960
12	96	ATB	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612960-30
14	108	ATB	.137	.098	1 (25.40mm)	–	614108
14	108	ATB	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614108-30
16	120	ATB	.137	.098	1 (25.40mm)	–	616128
18	132	ATB	.157	.110	1 (25.40mm)	–	618132

Weight	1.32 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
