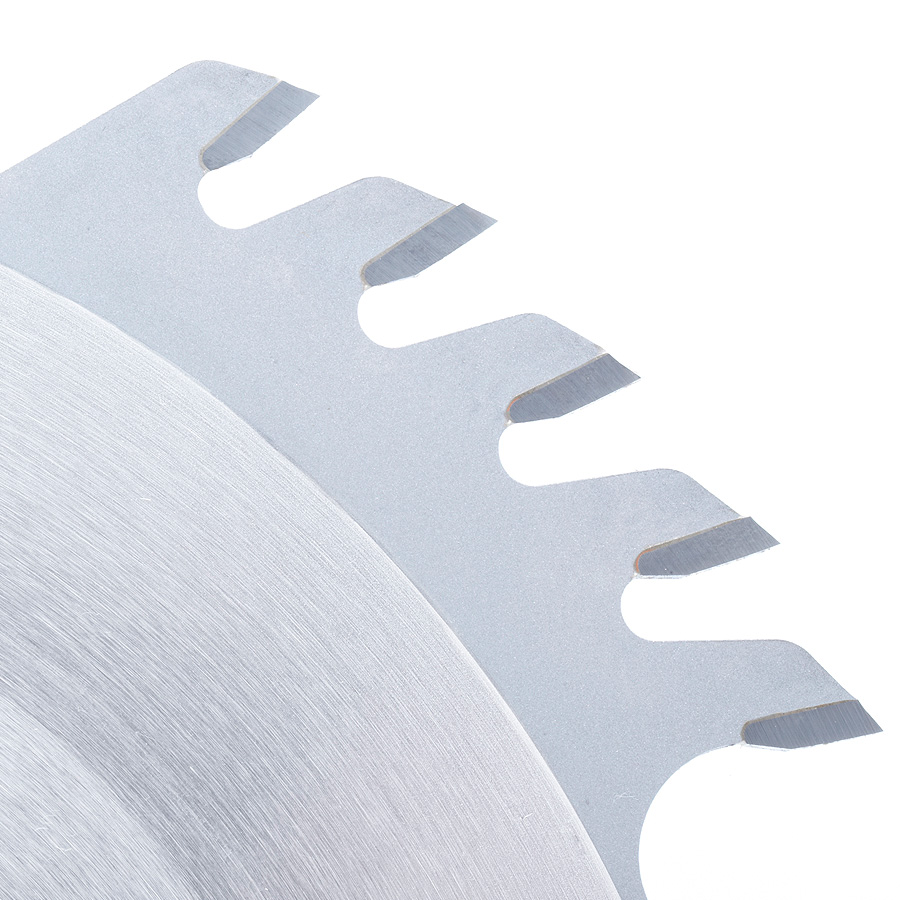

Amana 694004 Carbide Tipped Combination Ripping and Crosscut 9 Inch Dia x 40T 4+1, 15 Deg, 5/8 Bore

Name: Amana 694004 Carbide Tipped Combination Ripping and Crosscut 9 Inch Dia x 40T 4+1, 15 Deg, 5/8 Bore
SKU: Amana 694004
Availability: InStock

Original price was: $179.40.Current price is: $134.55.

9″/40T COMBINATION GRIND

UPC: 738685694046 SKU: Amana 694004 Categories: Amana Tool, Combination Ripping & Crosscut Saw Blades, Saw Blades

Item Description

Where one blade must do almost everything – ripping and crosscutting hardwood and softwood, cutting plywood– this blade is a good choice. It is in the traditional combination-blade configuration, with a flat-top tooth and 4 alternate top bevel teeth in groupings of five. The large gullets at the raker tooth allow deep cuts with improved chip ejection.

Specifications

(D) Diameter	9 (230mm)
Teeth	40
(d) Bore	5/8
Tooth Grind	4&1
Hook Angle	15°
Kerf (B)	.126 (3.2mm)
Plate (C)	.087 (2.2mm)

Weight	1.94 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
