ATEMAG Extra Function Line

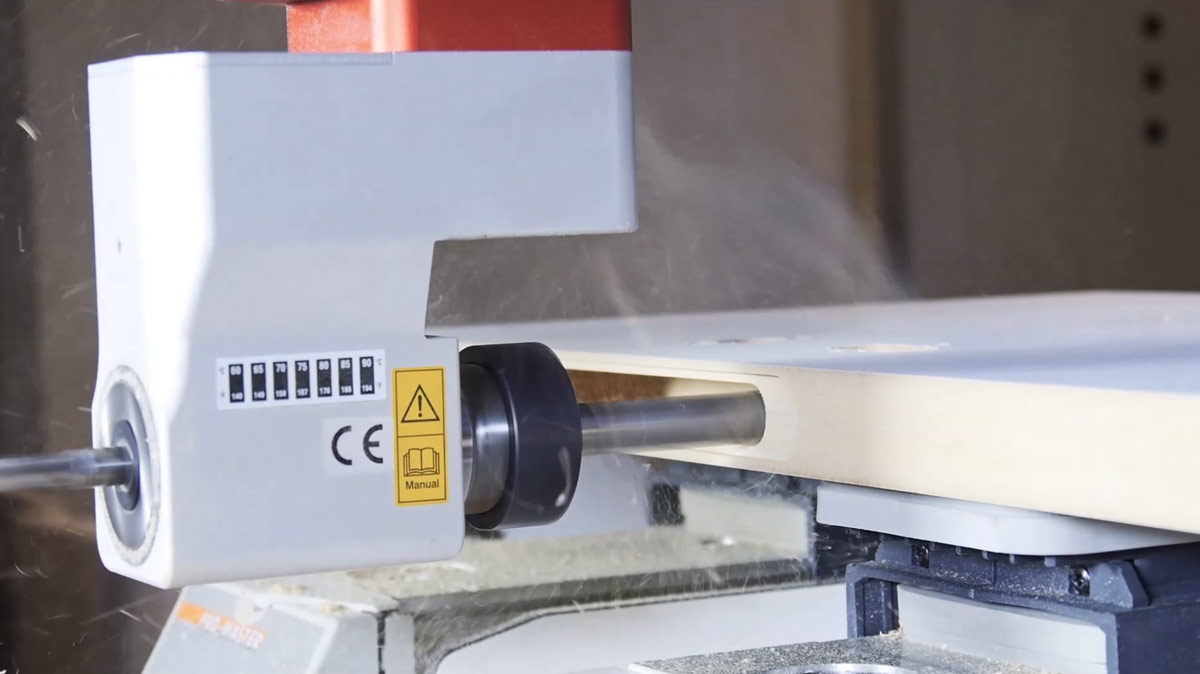

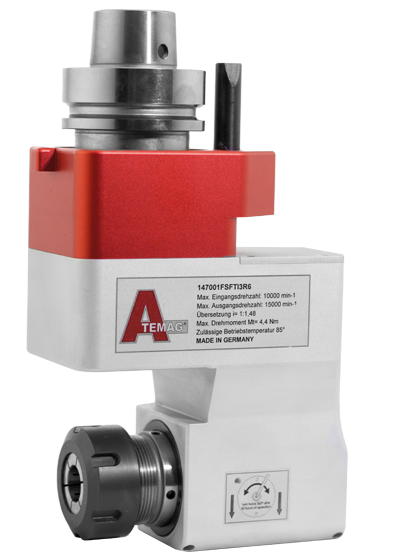

Lockset recess aggregate with two horizontal tool outputs specifically for lockset recess routing or baluster hole drilling.

Request a Quote

Technical Data

Machining options:		Drilling	Milling
Max. output speed:	10.000 rpm with Rota Lube: max. 12.100 rpm
Gear ratio:	15.000 rpm with Rota Lube: max. 18.000 rpm
Max. torque:	1 : 1,48
Max. Drehmoment:	20 Nm
Permissible operating temperature:	max. 85°C
Positioning of torque arm with respect to tool:	4 x 90°
Positioning of torque arm with respect to tool:	90°
Number of tool outputs:	2 / fixed
Lubrication:	Grease / Rota Lube – Lifetime lubrication

UPC: N/A Categories: Aggregates, FUNCTION LINE

Description
Brand

Product Information

The design permits the use of long tools with a small interference circle diameter – optionally also with a guide rail for tool stabilization for deep drilling.

Typical applications:

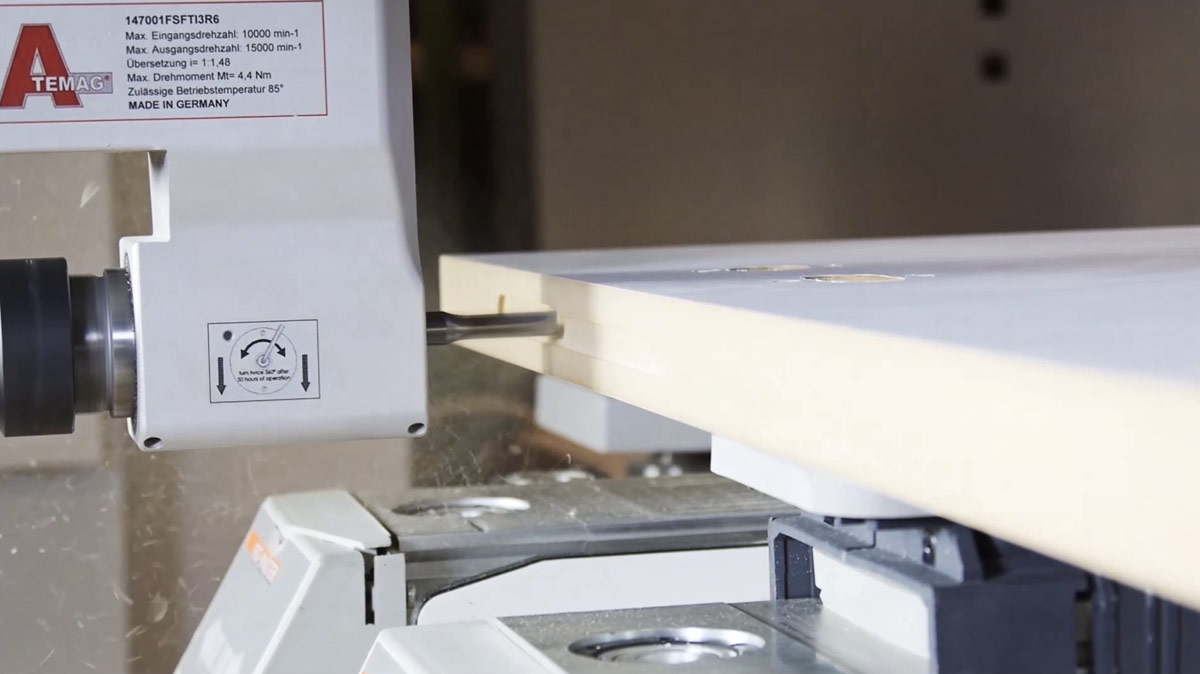

Doors: Lockset recess routing and forend routing in edges
Stairs: Baluster hole drilling in stringer or railing

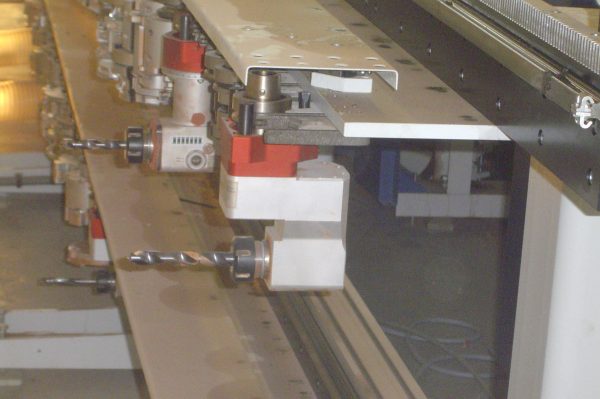

Furniture making: Dowel hole drilling and drilling of holes for insert boards

Tool connection:

ER 16
ER 32
Modular interface
Weldon
Other connections on request

Machine connection:

ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
