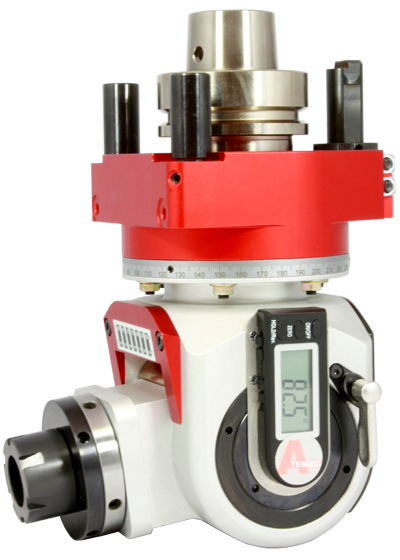

ATEMAG Vario Viso Function Line

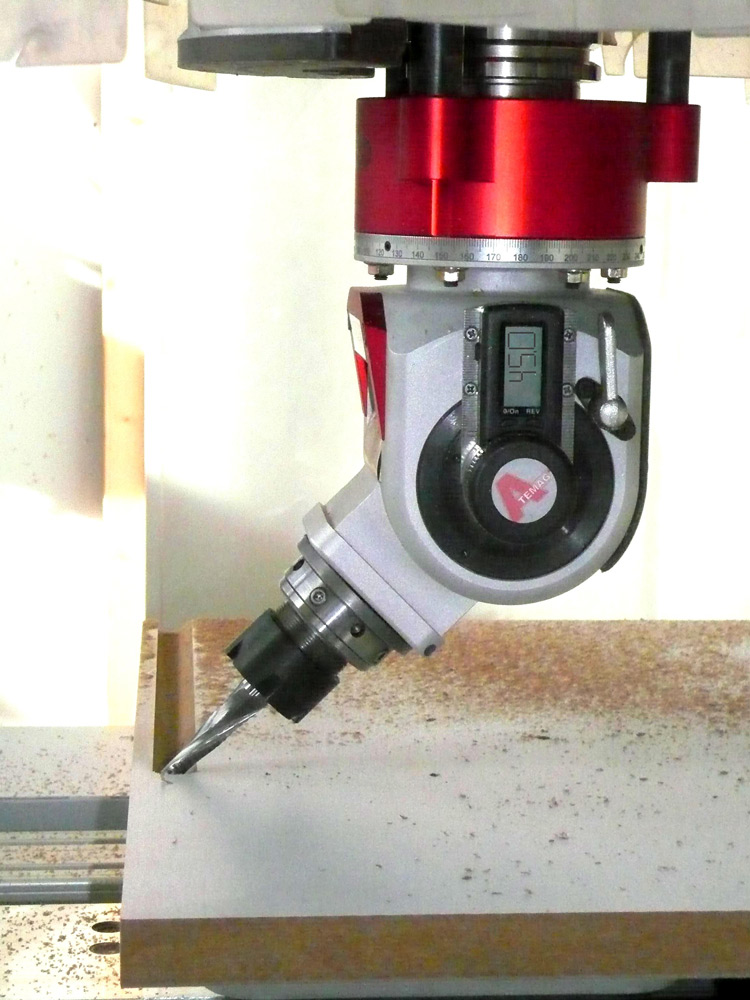

Machining aggregate with simple angle adjustment (0° to 100°) via fine gear and digital display – Fast positioning at 90°, 45°, and 0°.

Request a Quote

Technical Data

Machining options:	Drilling	Milling	Sawing	Grinding
Max. input speed:	15.000 rpm
Max. output speed:	15.000 rpm
Gear ratio:	1 : 1
Max. torque:	20 Nm
Permissible operating temperature:	max. 85°C
Positioning of torque arm with respect to tool:	360°
Machining angle:	0 – 100°
Angle display:	digital
Number of tool outputs:	1 / variable
Lubrication:	Grease / Lifetime lubrication

UPC: N/A Categories: Aggregates, FUNCTION LINE

Description
Brand

Product Information

Machining capabilities:

Drilling, routing, grinding, and sawing

Typical applications:

Doors: Drilling of hardware holes at an angle (e.g., 93° or 97° Anuba hinges)
Furniture making, exhibition stand construction, interior build-out: Clamex grooves in miters

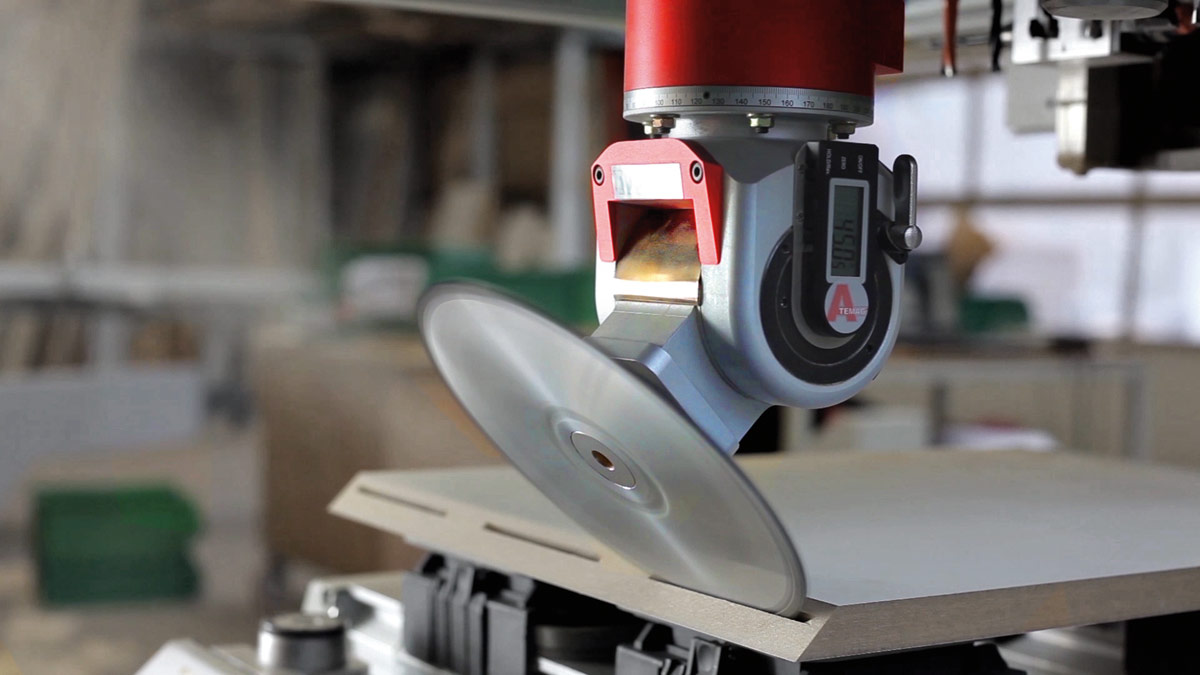

Miter cuts at any angle (corner joints)
Grinding of edges

Tool connections:

ER 25 Mini and saw blade flange (K1)
K2 saw blade flange
Modular interface
Other connections on request

Machine connection:

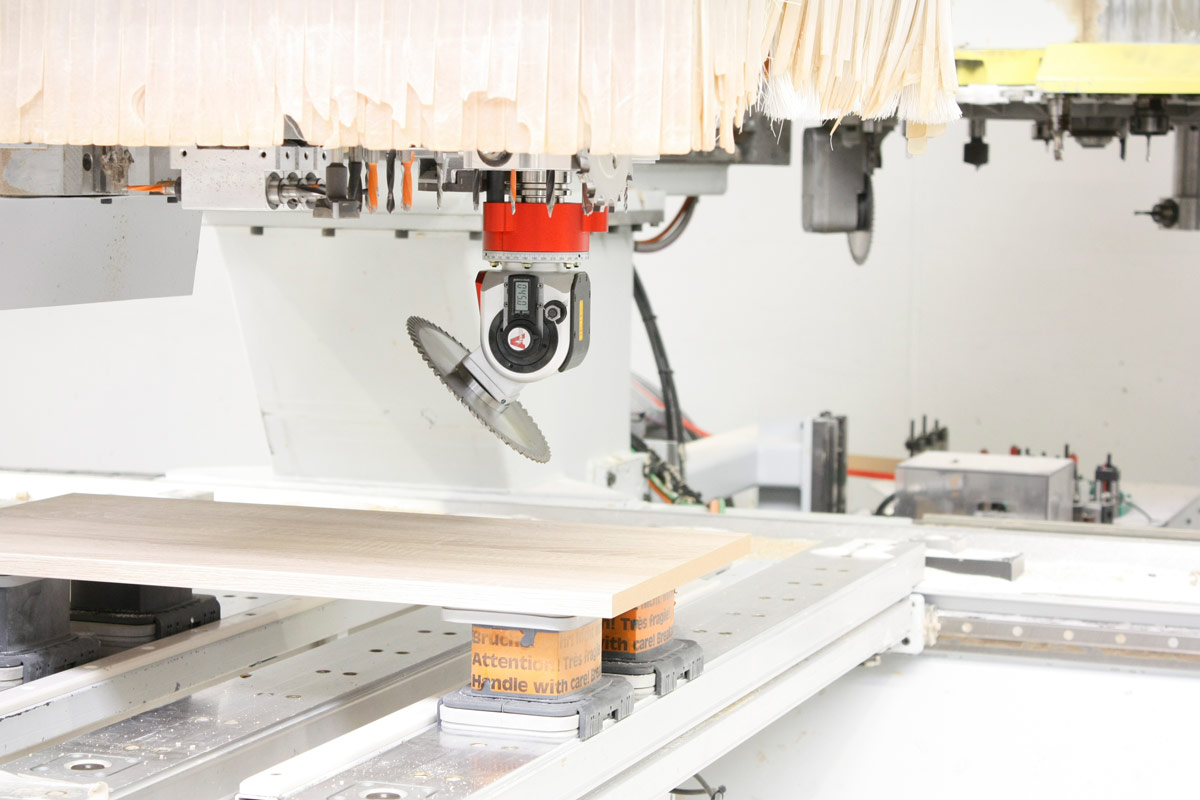

ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
