Techniks TP-C40 CAT40 43 Pc. Tooling Package Includes Holders & Collets

$1,315.00

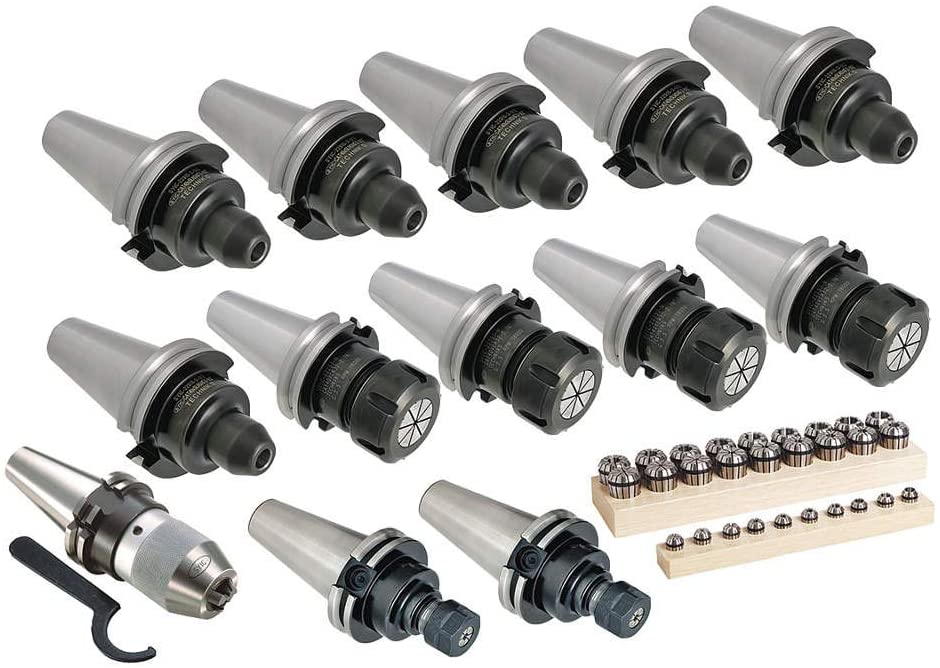

43 Piece CAT40 Tooling Package

Qty Part No. Description
4 22253 CAT 40 x ER32 Collet Chuck Holder, 2.76″ Projection
2 22225 CAT40 x ER16 Collet Chuck Holder, 2.76″ Projection
1 04212 (set) ER32 x 18 Piece Collet Set (Inch)
1 04209 (set) ER16 x 10 Piece Collet Set (Inch)
1 22911 CAT40 x 1/4″ End Mill Holder, 3″ Projection
1 22915 CAT40 x 3/8″ End Mill Holder, 3″ Projection
1 22917 CAT40 x 1/2″ End Mill Holder, 3″ Projection
1 22919 CAT40 x 5/8″ End Mill Holder, 3″ Projection
1 22921 CAT40 x 3/4″ End Mill Holder, 3.5″ Projection
1 22925 CAT40 x 1″ End Mill Holder, 4″ Projection
1 22403 CAT40 x 1/2″ Keyless Drill Chuck
1 04616 ER32 Slotted Nut Wrench
1 04609 ER16 Hex Nut Wrench

ER collet chucks handle a wide range of machining jobs without having to buy new tool holders. Simply choose the right size collet for the job, set tool depth, and tighten the collet nut and pull stud to the proper torque using a torque wrench and tightening fixture.

  • Balanced to 25,000 RPM at G2.5
  •  T.I.R. 0.0001″ measured from taper to collet pocket
  • PowerCOAT nut included for 75% more clamping power
