Sale!

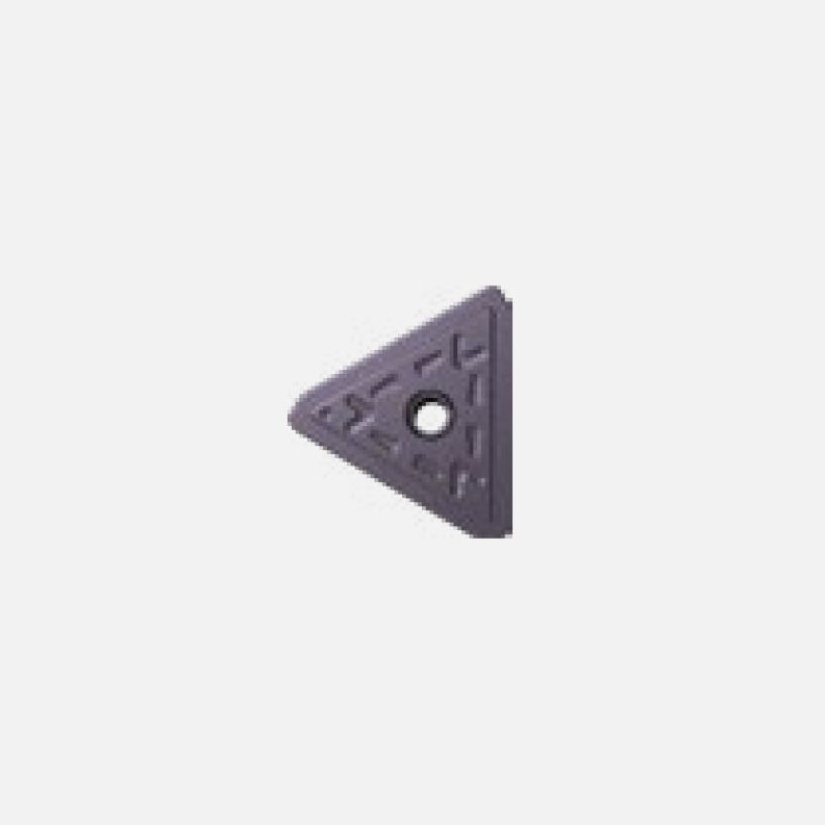

YG1-12000956 – RTPKN1603PDTR-YG612/TPKN32PDTR – Indexable Milling Insert

Original price was: $23.21.Current price is: $15.90.

RTPKN1603PDTR-YG612/TPKN32PDTR — YG-1 Indexable Milling Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-12000956 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	12000956
Description	RTPKN1603PDTR-YG612/TPKN32PDTR
Size/Dimension	TPKN1603PDTR-YG612/TPKN32PDTR
Material	Carbide
End Type	Single
Series	TPKN32, TPKN1603
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	TPKN
ANSI Code	TPKN32PDTR
ISO Code	TPKN1603PDTR
ANSI	ISO
Shape	Triangular
# of Cutting Edges	3
Depth of Cut	12
Clearance Angle	11°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.001
Height Tolerance (± mm)	0.025
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	Without clamping hole, no chipbreaker
Insert IC (inch)	0.375
Insert IC (mm)	9.525
Thickness (in)	0.125
Thickness (mm)	3.175
Corner Radius (in)	0.0469
Corner Radius (mm)	1.191
Chipbreaker Application	General Application
Cutting Edge Angle	90°
Wiper Edge Clearance	20°
Edge Condition	Chamfered
Feed Direction	Right hand insert
Wiper Edge Length	0.047
Grade	YG612
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	MILLING INSERT
Application	Steel, Stainless Steel, Super Alloy
System of Measurement	Inch
Application code	P,M,S

Specialized Multi-Nano Coated Grade with high wear resistance and chipping resistance. Special Multi-Nano coating prevent crack and providing predictible tool life. Special universal Grade can acheive stable tool life in any workpiece.
