YG1-38573 – 1/4 x 1/4 x 3/8 x 1/2 x 3 N.235 – 3 Flute Regular Length 40 Degree Helix Ball Nose Neck Alu-Power

Original price was: $45.00.Current price is: $33.75.

Alu-Power

UPC: N/A SKU: YG1-38573 Categories: Alu-Power, General Purpose Carbide End Mill, Milling, YG-1

EDP No.	38573
Description	3 FLUTE REGULAR LENGTH 40 DEGREE HELIX BALL NOSE NECK ALU-POWER
Size	1/4 x 1/4 x 3/8 x 1/2 x 3 N.235
Available Qty.	Call for availability

Specifications

Series	E5975

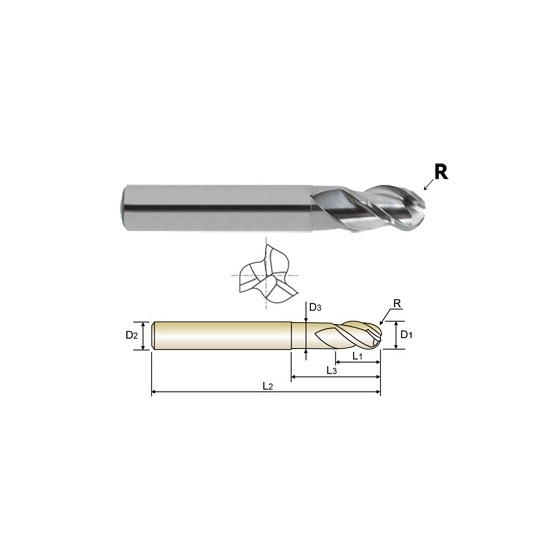

Long Description	1/4 x 3/8 x 3.0000 OAL Carbide 40° Helix 3 Flute Bright High Performance Ball Nose with Neck End Mill
Number of Flutes	3
Diameter (inch)	0.25
Diameter (mm)	6.35
Shank Dia. (inch)	0.25
Shank Dia. (mm)	6.35
Length of Cut (inch)	0.375
Length of Cut (mm)	9.525
LBS (inch)	0.5
LBS (mm)	12.7
Overall Length (inch)	3
Overall Length (mm)	76.2
Neck Diameter	0.235
Neck MM	5.969
Ball Nose Radius (inch)	0.125
Ball Nose Radius (mm)	3.175
Shank Style	Plain
Helix Angle	40°
Coating	Bright
Material	Carbide
Cut Type	Center Cut
Type	Ball Nose 40° Helix Long Length with Neck
Application	N
Cutting Direction	Right
System of Measurement	Inch
End	Ball Nose with Neck

Excellent cutting qualities on aluminum, copper. Increased tool life and superior chip evacuation. Reduces chipping of corner edges.
