| EDP No. | DH520103 |
|---|---|

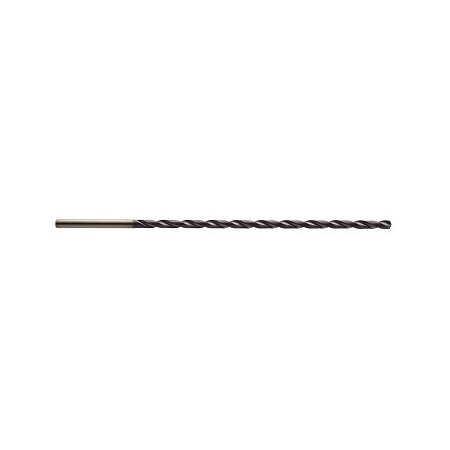

| Description | CARBIDE DRILL MQL TYPE W/ COOLANT (20XD) |
| Size | 10.3 x 11.0 x 242 x 306 |
| Available Qty. | Call for availability |
Specifications
| Series | DH520 |
|---|---|
| Long Description | 10.3 x 306 OAL 140 Point 20xD TiAlN Coolant thru High Performance Carbide Dream Drill MQL |
| Number of Flutes | 2 |
| Diameter (inch) | 0.4055 |
| Diameter (mm) | 10.3 |
| Shank Dia. (inch) | 0.4331 |
| Shank Dia. (mm) | 11 |
| Flute Length (inch) | 9.5276 |
| Flute Length (mm) | 242 |
| Overall Length (inch) | 12.0472 |
| Overall Length (mm) | 306 |
| Point Length (inch) | 0.0738 |
| Point Length (mm) | 1.874 |
| Point Angle | 140 |
| Helix Angle | 30° |
| Length/ Diameter | 20xD |
| Shank Tolerance | h6 |
| Coolant Through | Yes |
| Coolant Pressure | 45 Bar |
| Coating | TiAlN |
| Material | Carbide |
| Hole Tolerance | h7 |
| Type | Dream Drills MQL |
| Application | P |
| Cutting Direction | Right |
| System of Measurement | MM |
