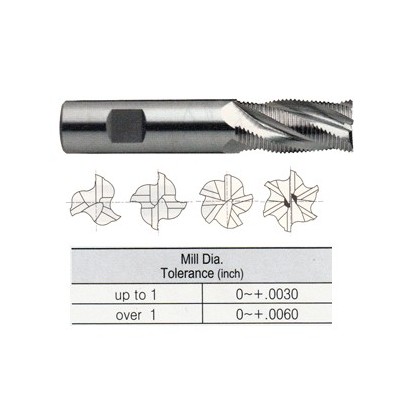

YG1-E9990909 – 3/4 x 3/4 x 2-1/2 x 4-3/4 – 4 Flute Medium Length Center Cut Fine Pitch Rougher Powder Metal Tank-Power

Original price was: $132.96.Current price is: $99.75.

Tank-Power

UPC: N/A SKU: YG1-E9990909 Categories: HSS & Cobalt End Mill, Milling, Tank-Power, YG-1

EDP No.	E9990909
Description	4 FLUTE MEDIUM LENGTH CENTER CUT FINE PITCH ROUGHER POWDER METAL TANK-POWER
Size	3/4 x 3/4 x 2-1/2 x 4-3/4
Available Qty.	Call for availability

Specifications

Series	E9990
Long Description	3/4 x 2 1/2 x 4 3/4 OAL Premium HSS-PM 30° Helix 4 Flute Bright Square End End Mill
Number of Flutes	4
Diameter (inch)	0.75
Diameter (mm)	19.05
Shank Dia. (inch)	0.75
Shank Dia. (mm)	19.05
Length of Cut (inch)	2.5
Length of Cut (mm)	63.5
Overall Length (inch)	4.75
Overall Length (mm)	120.65
Shank Style	Flat
Helix Angle	30°
Coating	Bright
Material	Premium HSS-PM
Cut Type	Center Cut
Type	Premium HSS-PM, 4 Flute Regular Length Fine Pitch Roughing
Application Code	P, M, K
Cutting Direction	Right
System of Measurement	Inch
End Type	Square End
Single or Double End	Single
Application	Steels, Stainless Steels, Cast iron
Extended reach	No

This TANK-POWER rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad spectrum of materials having up to high tensile strengths. In many cases, the milled surfaces are of acceptable quality
