YG1-P15708 – 7, 3 x 12-7/8 – Straight Shank & Straight Flute Standard Length Spade Drill Holder

Original price was: $1,181.91.Current price is: $777.60.

Spade Drill

UPC: N/A SKU: YG1-P15708 Categories: Drilling, Spade Drill, Spade Drill, YG-1

EDP No.	P15708
Description	STRAIGHT SHANK & STRAIGHT FLUTE STANDARD LENGTH SPADE DRILL HOLDER
Size	7, 3 x 12-7/8
Available Qty.	Call for availability

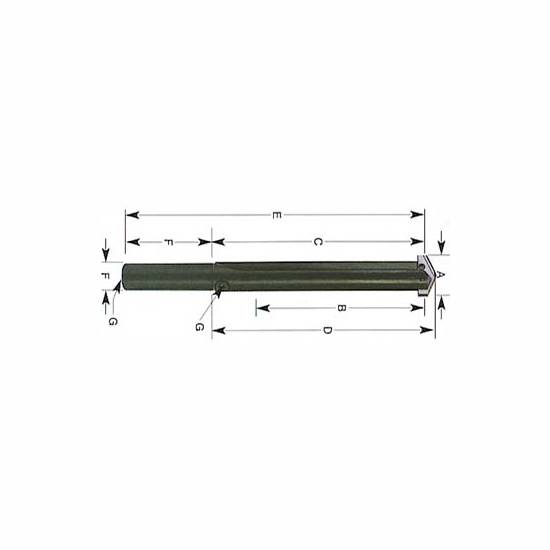

Specifications

Series	P15
Shank Type	Straight
Spade Drill Series	7-8
Number of Flutes	2
Flute Type	Straight
Min. Insert Diameter (inch)	3.5312
Min Insert Diameter (mm)	89.694
Max. Insert Diameter (inch)	4.5
Max Insert Diameter (mm)	114.3
Max Drill Depth (inch)	10.75
Max Drill Depth (mm)	273.05
Flute Length (inch)	12.875
Flute Length (mm)	327.025
Reference Length (inch)	13.125
Reference Length (mm)	333.375
Overall Length (inch)	17.875
Overall Length (mm)	454.025
Shank Dia. (inch)	3
Shank Dia. (mm)	76.2
Shank Length (inch)	5
Shank Length (mm)	127
Pipe Tap	0.5
Coolant Through	Yes
Coating	Oxide
Material	Steel
Type	Straight Shank Spade Drill Holder
Cutting Direction	Right
System of Measurement	Inch
