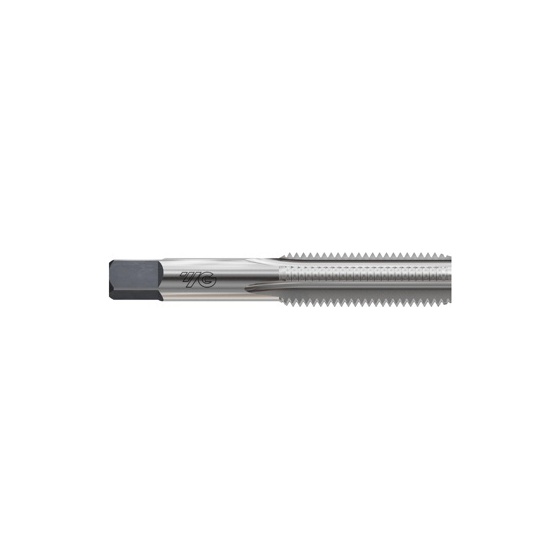

YG1-T7405208 – M3x0.5 D2 50.80L – 3 Flute Hss Bottoming Style Straight Flute Bright Finish Screw Thread Insert Tap For General Purpose

Original price was: $22.90.Current price is: $15.70.

Blue Ring Tap

UPC: N/A SKU: YG1-T7405208 Categories: General Purpose Tap, STI Taps, Tapping, YG-1

EDP No.	T7405208
Description	3 FLUTE HSS BOTTOMING STYLE STRAIGHT FLUTE BRIGHT FINISH SCREW THREAD INSERT TAP FOR GENERAL PURPOSE
Size	M3x0.5 D2 50.80L
Available Qty.	Call for availability

Specifications

Serial #	2
Series	T7405
Long Description	M3 x 0.5," 2.000,OAL HSS 3 Flute Bright D2 Bottoming Straight Flute YG-1 STI Tap
Tap Type	Straight Flute
Size & Pitch	M3 x 0.5
# of Flutes	3
Diameter (inch)	0.1181
Diameter (metric)	3
Pitch	0.5
Thread Series	M
Pitch Limit	D2
Chamfer Type	Bottoming
Chamfer Length	1.5P-2P
Finish	Bright
Material	GS
Blank Standard	322A
Overall Length (inch)	2
OAL (metric)	50.8
Thd. Lgth. (inch)	0.689
Thd. Lgth. (metric)	17.5
Sqr. Lgth. (inch)	0.19
Sqr. Lgth. (metric)	4.83
Shk. Dia. (inch)	0.141
Shk. Dia. (metric)	3.58
Sqr. Size (inch)	0.11
Sqr. Size (metric)	2.79
Neck Dia (inch)	0.094
Neck Dia (metric)	2.388
Neck Length (Inch)	0.965
Neck Length (Metric)	24.511
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.124
Drill Size (mm)	3.1496
Connection (in)	0.141 x 0.11
Connection (mm)	3.58 x 2.79
Length/ Diameter	2.0 x D
Useable Length (in)	0.69
Useable Length (mm)	17.53
Coolant Thru 0 With and X without	No
Trade Name	YG Tap STI
