Sale!

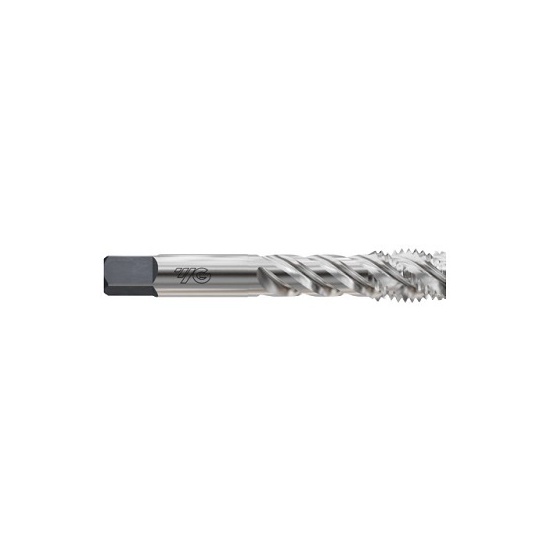

YG1-T7425504 – M12-1.75 D4 91.19L – 3 Flute Hss Spiral Fluted Screw Thread Insert Tap For General Purpose – Metric

Original price was: $59.38.Current price is: $40.65.

Blue Ring Tap

UPC: N/A SKU: YG1-T7425504 Categories: General Purpose Tap, STI Taps, Tapping, YG-1

EDP No.	T7425504
Description	3 FLUTE HSS SPIRAL FLUTED SCREW THREAD INSERT TAP FOR GENERAL PURPOSE – METRIC
Size	M12-1.75 D4 91.19L
Available Qty.	Call for availability

Specifications

Serial #	43
Series	T7425
Long Description	M12 x 1.75," 3.594,OAL HSS 3 Flute Bright D4 Bottoming Spiral Flute YG-1 STI Tap
Tap Type	Spiral Flute
Size & Pitch	M12 x 1.75
# of Flutes	3
Diameter (inch)	0.4724
Diameter (metric)	12
Pitch	1.75
Thread Series	M
Pitch Limit	D4
Chamfer Type	Bottoming
Chamfer Length	1.5P-2P
Finish	Bright
Material	GS
Blank Standard	322A
Helix Angle	50
Overall Length (inch)	3.594
OAL (metric)	91.288
Thd. Lgth. (inch)	0.709
Thd. Lgth. (metric)	18.01
Sqr. Lgth. (inch)	0.5
Sqr. Lgth. (metric)	12.7
Shk. Dia. (inch)	0.429
Shk. Dia. (metric)	10.897
Sqr. Size (inch)	0.322
Sqr. Size (metric)	8.18
Neck Dia (inch)	0.417
Neck Dia (metric)	10.592
Neck Length (Inch)	2.067
Neck Length (Metric)	52.502
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.4921
Drill Size (mm)	12.499
Connection (in)	0.429 x 0.322
Connection (mm)	10.8966 x 8.18
Length/ Diameter	2.5 x D
Useable Length (in)	1.66
Useable Length (mm)	42.16
Coolant Thru 0 With and X without	No
Trade Name	YG Tap STI
