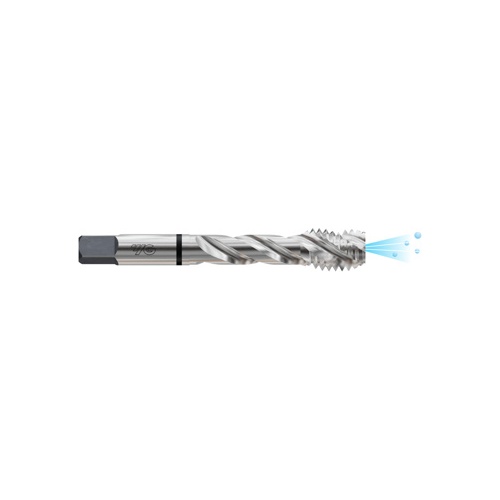

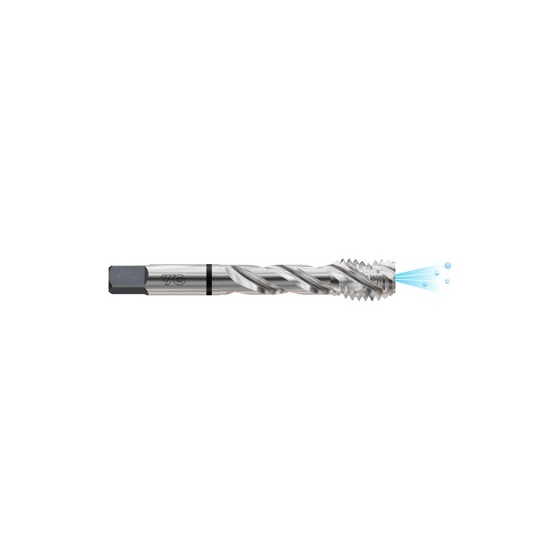

YG1-T8607 – M16 x 2.0 D7 – Hss-Ex Combo Modi Spiral Flute Tap Internal Coolant Bright Finish

Original price was: $119.83.Current price is: $78.85.

YG Tap INOX

UPC: N/A SKU: YG1-T8607 Categories: Combo Tap, Multipurpose & HSS-E Tap, Tapping, YG-1

EDP No.	T8607
Description	HSS-EX COMBO MODI SPIRAL FLUTE TAP INTERNAL COOLANT BRIGHT FINISH
Size	M16 x 2.0 D7
Available Qty.	Call for availability

Specifications

Serial #	235
Series	T8
Long Description	M16x2 3.8100 OAL HSS-E 3 Flute Bright D7 Modified Bottoming SPFL Combo Tap Tap
Tap Type	SPFL
Size & Pitch	M16x2
# of Flutes	3
Diameter (inch)	0.6299
Diameter (metric)	16
Pitch	2
Thread Series	M
Pitch Limit	D7
Chamfer Type	Modified Bottoming
Chamfer Length	2P – 3P
Finish	Bright
Material	HSS-E
Blank Standard	302A
Helix Angle	40
Overall Length (inch)	3.81
OAL (metric)	96.77
Thd. Lgth. (inch)	0.709
Thd. Lgth. (metric)	18.01
Sqr. Lgth. (inch)	0.56
Sqr. Lgth. (metric)	14.22
Shk. Dia. (inch)	0.48
Shk. Dia. (metric)	12.19
Sqr. Size (inch)	0.36
Sqr. Size (metric)	9.14
Neck Dia (inch)	0.469
Neck Dia (metric)	11.91
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.5583
Drill Size (mm)	14.181
Connection (in)	0.48 x 0.36
Connection (mm)	12.19 x 9.14
Length/ Diameter	2.5xD
Useable Length (in)	2.205
Useable Length (mm)	56.01
Coolant Thru 0 With and X without	Yes
Ring Color	Black
Trade Name	Combo Tap
Application	P,M,K,N

Spiral Flute for blind holes to pull the chip up and out of the hole. Spiral Point for through holes to push the chip through. Straight Flute taps for short chipping materials and hand tapping operations. Offered in Bright Finish, Steam Oxcide,TiN,and TiCN coating. Use Hardslick coating for gummy material.
