Sale!

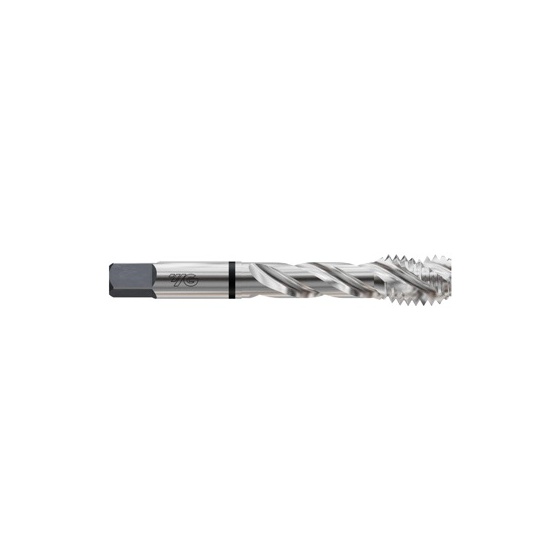

YG1-T9707 – M20 x 2.5 D7 – Hss-Ex Combo Modi Spiral Flute Tap Bright Finish

Original price was: $118.92.Current price is: $78.25.

YG Tap INOX

UPC: N/A SKU: YG1-T9707 Categories: Combo Tap, Multipurpose & HSS-E Tap, Tapping, YG-1

EDP No.	T9707
Description	HSS-EX COMBO MODI SPIRAL FLUTE TAP BRIGHT FINISH
Size	M20 x 2.5 D7
Available Qty.	Call for availability

Specifications

Serial #	328
Series	T9
Long Description	M20x2.5 4.4700 OAL HSS-E 4 Flute Bright D7 Bottoming SPFL Combo Tap Tap
Tap Type	SPFL
Size & Pitch	M20x2.5
# of Flutes	4
Diameter (inch)	0.7874
Diameter (metric)	20
Pitch	2.5
Thread Series	M
Pitch Limit	D7
Chamfer Type	Bottoming
Chamfer Length	1P – 2P
Finish	Bright
Material	HSS-E
Blank Standard	302A
Helix Angle	40
Overall Length (inch)	4.47
OAL (metric)	113.54
Thd. Lgth. (inch)	0.787
Thd. Lgth. (metric)	19.99
Sqr. Lgth. (inch)	0.69
Sqr. Lgth. (metric)	17.53
Shk. Dia. (inch)	0.652
Shk. Dia. (metric)	16.56
Sqr. Size (inch)	0.489
Sqr. Size (metric)	12.42
Neck Dia (inch)	0.64
Neck Dia (metric)	16.26
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.6979
Drill Size (mm)	17.727
Connection (in)	0.652 x 0.489
Connection (mm)	16.56 x 12.42
Length/ Diameter	2.5xD
Useable Length (in)	2.48
Useable Length (mm)	62.99
Coolant Thru 0 With and X without	No
Ring Color	Black
Trade Name	Combo Tap
Application	P,M,K,N

Spiral Flute for blind holes to pull the chip up and out of the hole. Spiral Point for through holes to push the chip through. Straight Flute taps for short chipping materials and hand tapping operations. Offered in Bright Finish, Steam Oxcide,TiN,and TiCN coating. Use Hardslick coating for gummy material.
