Sale!

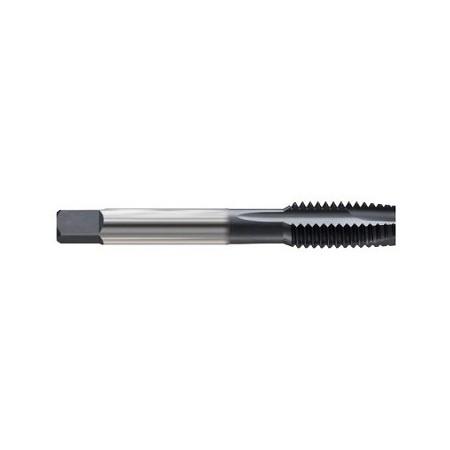

YG1-TQ808535 – M12 – 1.0 D5 – Hss-Pm 3 Flute Spiral Point Tap Plug Style Steels Up To 45Hrc Steam Oxide

Original price was: $54.87.Current price is: $41.20.

YG Tap TiNi

UPC: N/A SKU: YG1-TQ808535 Categories: High Performance & HSS PM Tap, Tapping, YG Tap Hardened, YG-1

EDP No.	TQ808535
Description	HSS-PM 3 FLUTE SPIRAL POINT TAP PLUG STYLE STEELS UP TO 45Hrc STEAM OXIDE
Size	M12 – 1.0 D5
Available Qty.	Call for availability

Specifications

Serial #	210
Series	TQ808
Long Description	M12 x 1.0 3.380 OAL HSS-PM 3 Flute Steam Oxide D5 Plug Spiral Point YG Hardened Steel Tap
Tap Type	Spiral Point
Size & Pitch	M12 x 1.0
# of Flutes	3
Diameter inch	0.4724
Diameter metric	12
Pitch	1
Thread Series	MF
Pitch Limit	D5
Chamfer Type	Plug
Chamfer Length	4P-5P
Finish	Steam Oxide
Material	HSS-PM
Blank Standard	302A
OAL inch	3.38
OAL metric	85.85
Thd. Lgth. Inch	0.984
Thd. Lgth. Metric	24.99
Sqr. Lgth. Inch	0.44
Sqr. Lgth. Metric	11.18
Shk. Dia. Inch	0.367
Shk. Dia. Metric	9.32
Sqr. Size inch	0.275
Sqr. Size metric	6.99
Neck Dia inch	0.354
Neck Dia metric	8.99
System of Measurement	Inch
Shank Type	Square
Drill Size inch	0.4366
Drill Size metric	11.09
Connection inch	0.367 x 0.275
Connection metric	9.32 x 6.99
Length/ Diameter	3.0 xD
Useable Length inch	1.657
Useable Length metric	42.09
Coolant Thru 0 With and X without	No
Application	Stainless Steels
Trade Name	YG Tap Hard Steel
Class of Fit	6H
