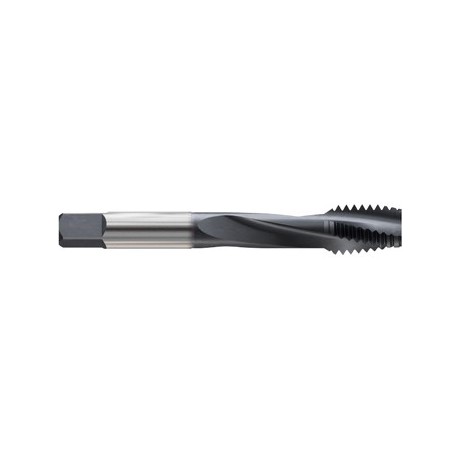

YG1-TQ858284 – M5 – 0.8 D4 60.3L – Hss-Pm 3 Flute Spiral Fluted Tap Modified Bottoming Style Steels Up To 45Hrc Steam Oxide

Original price was: $35.26.Current price is: $26.45.

YG Tap TiNi

UPC: N/A SKU: YG1-TQ858284 Categories: High Performance & HSS PM Tap, Tapping, YG Tap Hardened, YG-1

EDP No.	TQ858284
Description	HSS-PM 3 FLUTE SPIRAL FLUTED TAP MODIFIED BOTTOMING STYLE STEELS UP TO 45Hrc STEAM OXIDE
Size	M5 – 0.8 D4 60.3L
Available Qty.	Call for availability

Specifications

Serial #	224
Series	TQ858
Long Description	M5 x 0.8 2.380 OAL HSS-PM 3 Flute Steam Oxide D4 Modified Bottoming 15 Deg. Spiral Flute YG Hardened Steel Tap
Tap Type	Spiral Flute
Size & Pitch	M5 x 0.8
# of Flutes	3
Diameter inch	0.1969
Diameter metric	5
Pitch	0.8
Thread Series	M
Pitch Limit	D4
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	Steam Oxide
Material	HSS-PM
Blank Standard	302A
Helix Angle	15̊
OAL inch	2.38
OAL metric	60.45
Thd. Lgth. Inch	0.354
Thd. Lgth. Metric	8.99
Sqr. Lgth. Inch	0.25
Sqr. Lgth. Metric	6.35
Shk. Dia. Inch	0.194
Shk. Dia. Metric	4.93
Sqr. Size inch	0.152
Sqr. Size metric	3.86
Neck Dia inch	0.152
Neck Dia metric	3.86
System of Measurement	Inch
Shank Type	Square
Drill Size inch	0.1682
Drill Size metric	4.27
Connection inch	0.194 x 0.152
Connection metric	4.93 x 3.86
Length/ Diameter	3.0 xD
Useable Length inch	0.933
Useable Length metric	23.7
Coolant Thru 0 With and X without	No
Application	Stainless Steels
Trade Name	YG Tap Hard Steel
Class of Fit	6H
