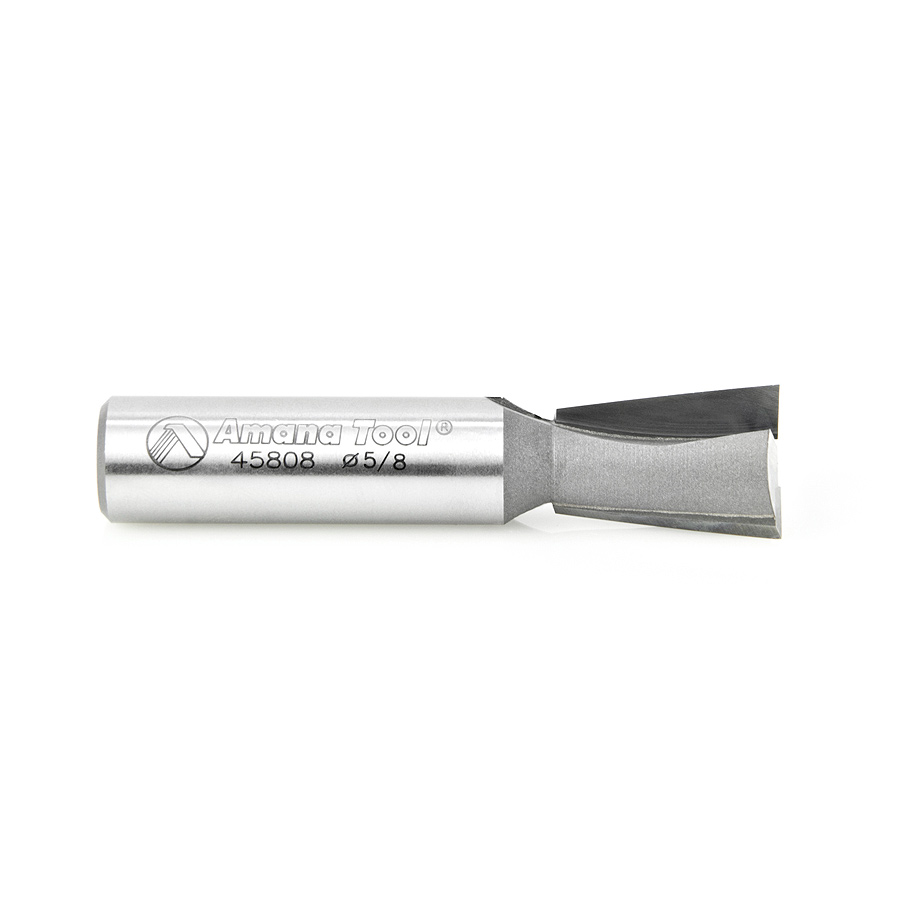

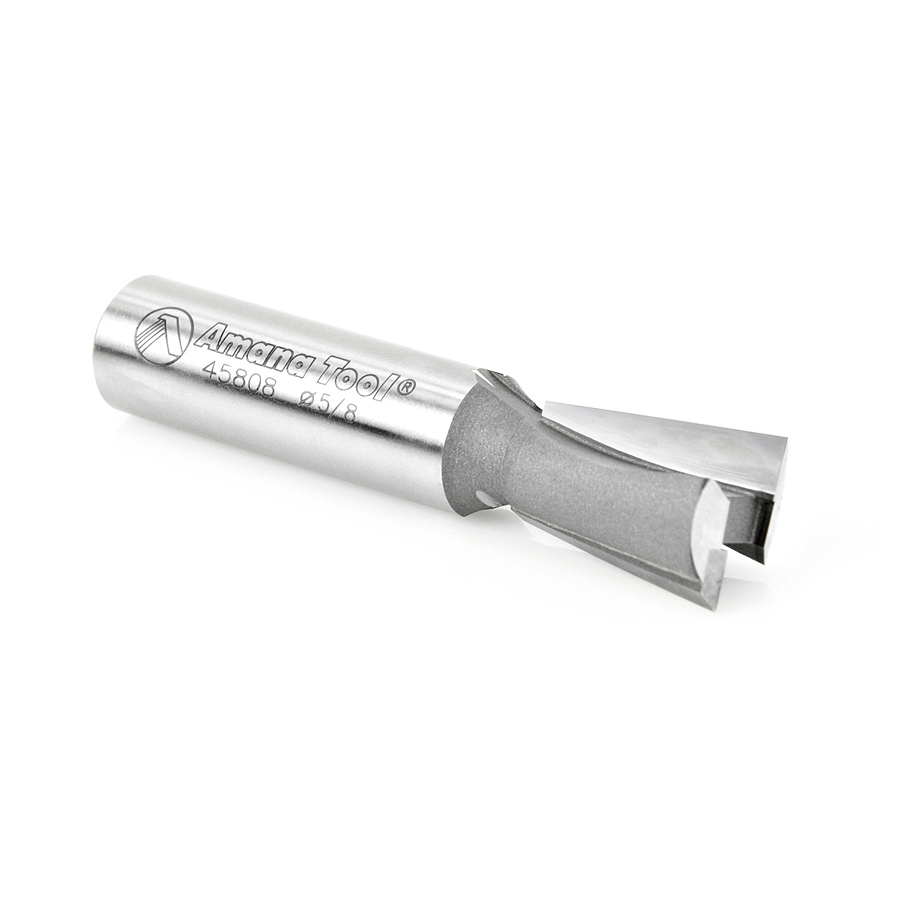

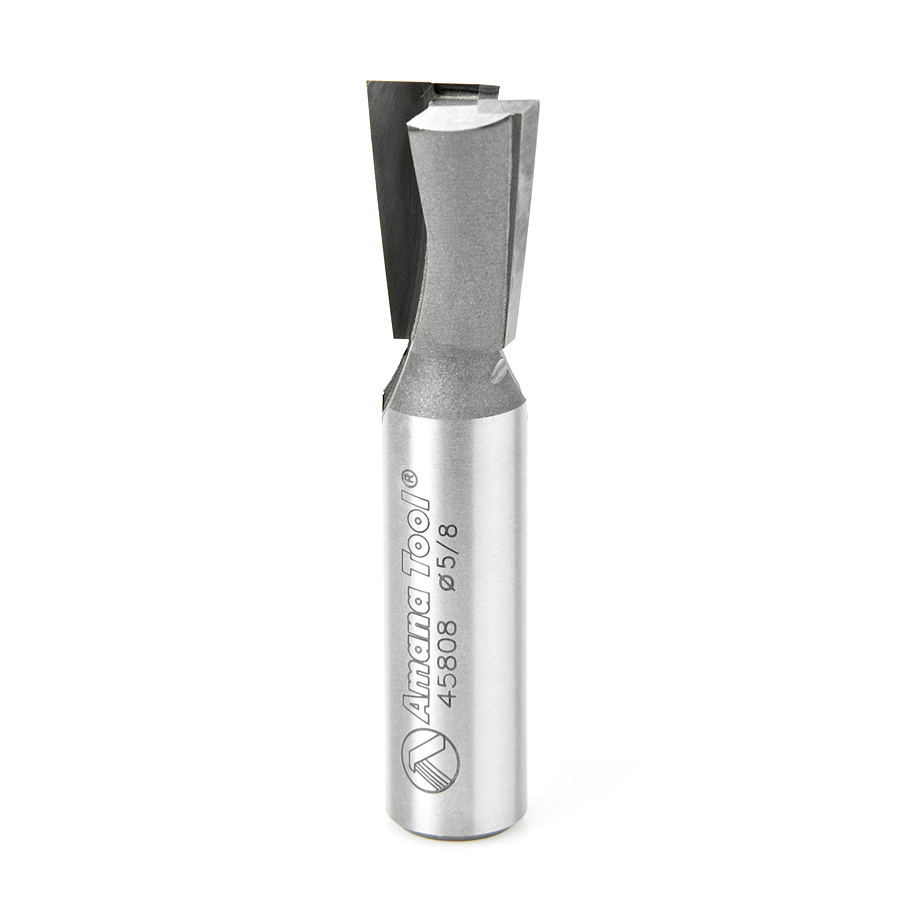

45808 Carbide Tipped Dovetail 7 Deg x 5/8 Dia x 7/8 x 1/2 Inch Shank

Amana 45808 Carbide Tipped Dovetail 7 Deg x 5/8 Dia x 7/8 x 1/2 Inch Shank

Name: Amana 45808 Carbide Tipped Dovetail 7 Deg x 5/8 Dia x 7/8 x 1/2 Inch Shank
SKU: Amana 45808
Availability: InStock

Original price was: $75.10.Current price is: $56.33.

DOVETAIL 5/8 DIA 1/2 SHANK

UPC: 738685858080 SKU: Amana 45808 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

For the Keller™ Dovetail Templates and certain Incra® applications, 7° dovetail bits are required. (Bits for the Keller™ system are supplied with shank-mounted bearings.) This angle is also used in cutting stair stringers.

Specifications

Angle (a°)	7°
Diameter (D)	5/8
Cutting Height (B)	7/8
Shank (d)	1/2
Overall Length (L)	2-5/8
Flutes	2
Application	Incra®

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Application	Tool No.
6.24°	9/32 (7.14mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-13/32	2	4212	45837
7°	3/4 (19.05mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-5/8	2	Incra®Incra®Incra®Incra®	45810
7°	7/8 (22.23mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-1/2	2	Stair	45812
7°	1/2 (12.70mm)	25/32 (19.84mm)	1/2 (12.70mm)	3-1/8	2	Omnijig®	45831
7°	17/32 (13.49mm)	13/16 (20.64mm)	1/2 (12.70mm)	2-3/8	2	4210 & 4212	45838

Weight	0.14 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
