Sale!

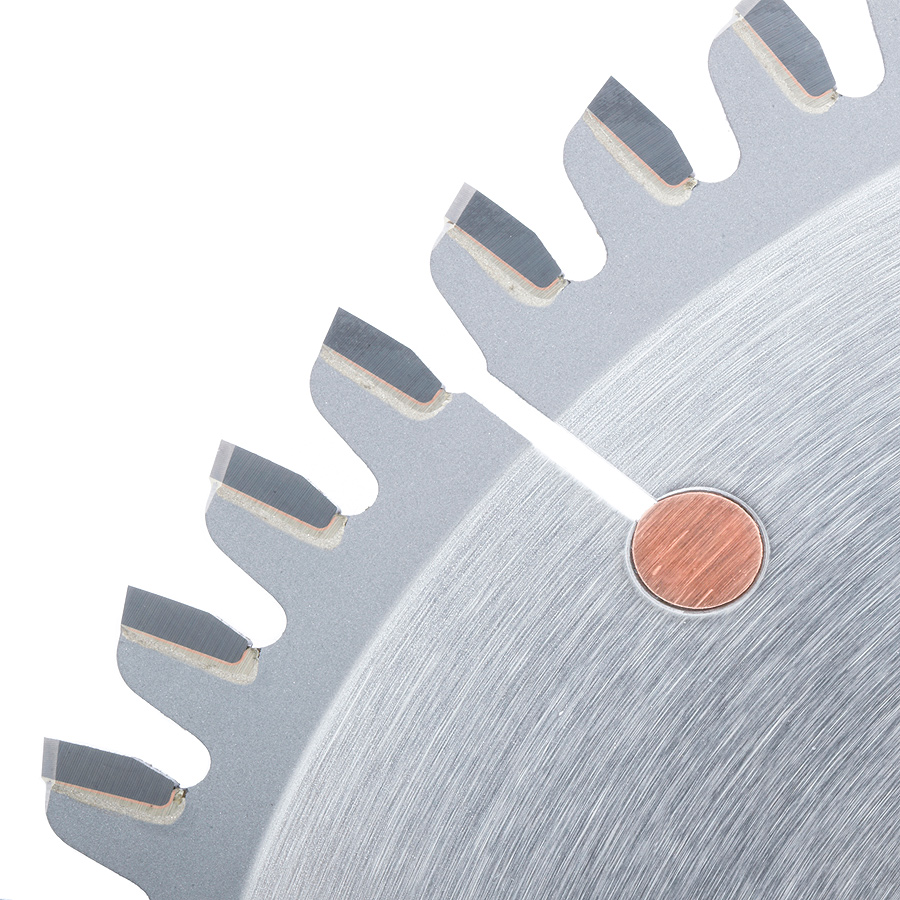

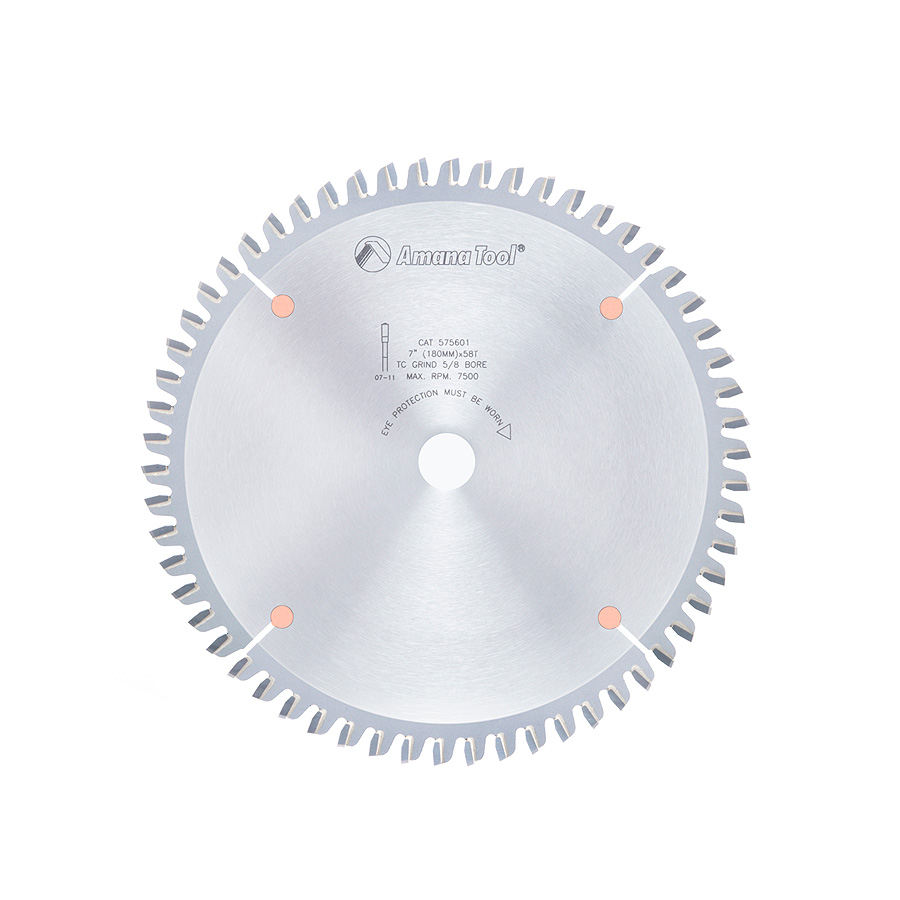

Amana 575601 Carbide Tipped Aluminum and Non-Ferrous Metals 7 Inch Dia x 58T TCG, -6 Deg, 5/8 Bore
Original price was: $168.70.$126.53Current price is: $126.53.
7″/58T NON FERROUS T.C.G GRIND
Item Description
Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).
Warning:**Never attempt to cut ferrous metals with these blades.
Clamp down the workpiece.
For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.
Specifications
| (D) Diameter | 7 (180mm) |
|---|---|
| Teeth | 58 |
| (d) Bore | 5/8 |
| Tooth Grind | TCG |
| Hook Angle | -6° |
| Kerf (B) | .110 (2.8mm) |
| Plate (C) | .087 (2.2mm) |
Other Sizes Available
| (D) Diameter | Teeth | Tooth Grind | Hook Angle | Kerf (B) | Plate (C) | (d) Bore | Pinholes | Machine | Tool No. |
|---|---|---|---|---|---|---|---|---|---|
| 8 | 64 | TCG | -6°6 | .110 | .087 | 5/8 (15.88mm) | – | – | 586401 |
| 10 | 100 | TCG | -6°6 | .126 | .102 | 5/8 (15.88mm) | – | – | 510101 |
| 10 | 80 | TCG | -6°6 | .126 | .102 | 5/8 (15.88mm) | – | – | 510801 |
| 10 | 80 | TCG | -6°6 | .126 | .102 | 30mm | 2/7/42, 2/9/46 & 2/10/60 | – | 510801-30 |
| 10 | 80 | TCG | -6°6 | .126 | .102 | 5/8 (15.88mm) | – | – | 510801C |
| 12 | 96 | TCG | -6°6 | .126 | .102 | 1 (25.40mm) | – | – | 512961 |
| 12 | 96 | TCG | -6°6 | .126 | .102 | 30mm | 2/7/42, 2/9/46 & 2/10/60 | – | 512961-30 |
| 14 | 100 | TCG | -6°6 | .146 | .118 | 5/8 (15.88mm) | – | Pistorious | 514101-5/8HD |
| 14 | 108 | TCG | -6°6 | .126 | .102 | 1 (25.40mm) | – | – | 514108 |
| 14 | 108 | TCG | – | .126 | .102 | 30mm | 2/7/42, 2/9/46 & 2/10/60 | – | 514108-30 |
| 15 | 100 | TCG | -6°6 | .120 | .098 | 1 (25.40mm) | – | Hitachi | 515101 |
| 16 | 120 | TCG | -6°6 | .150 | .126 | 1 (25.40mm) | – | – | 516121 |
| 18 | 120 | TCG | -6°6 | .150 | .126 | 1 (25.40mm) | – | – | 518121 |
| 20 | 120 | TCG | -6°6 | .174 | .134 | 1 (25.40mm) | – | – | 520121 |
| 20 | 120 | TCG | – | .174 | .152 | 30mm | 2/7/42, 2/9/46 & 2/10/60 | – | 520121-30 |
| Weight | 1.16 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
