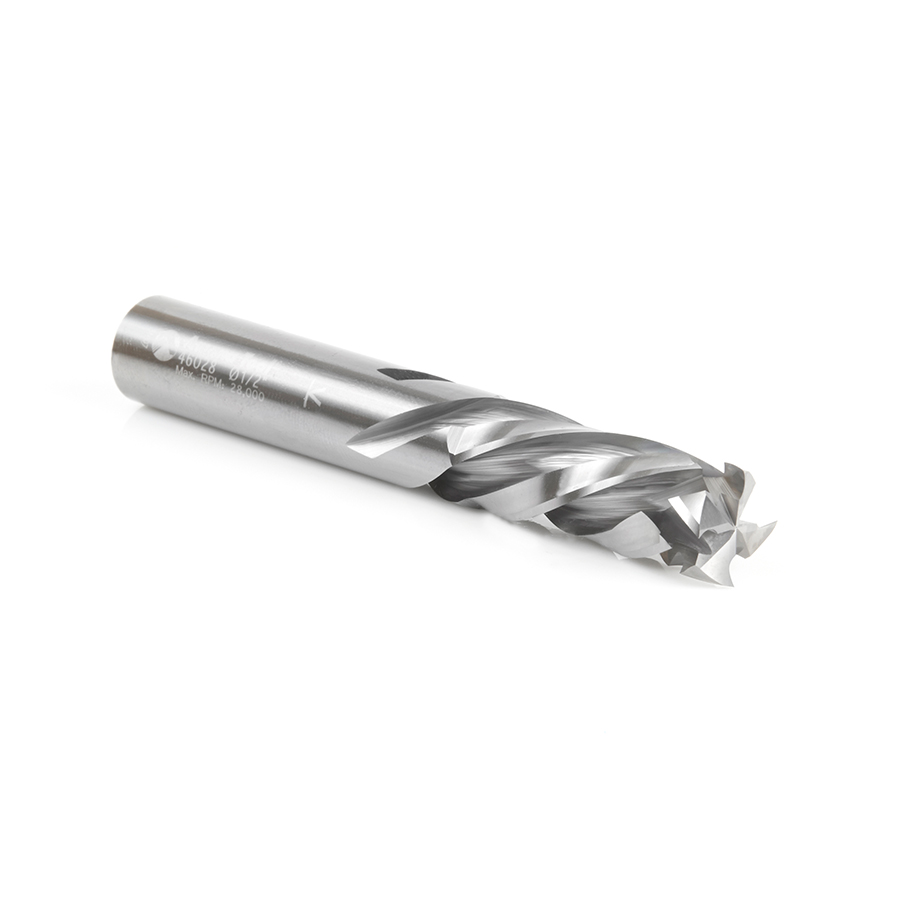

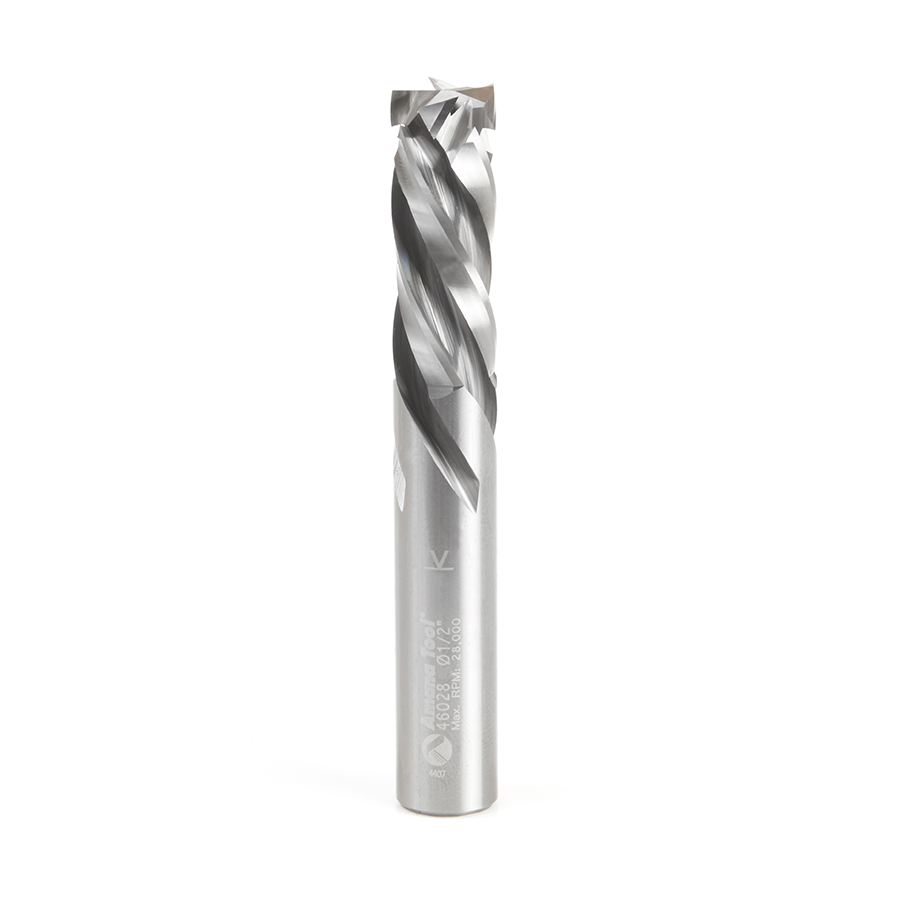

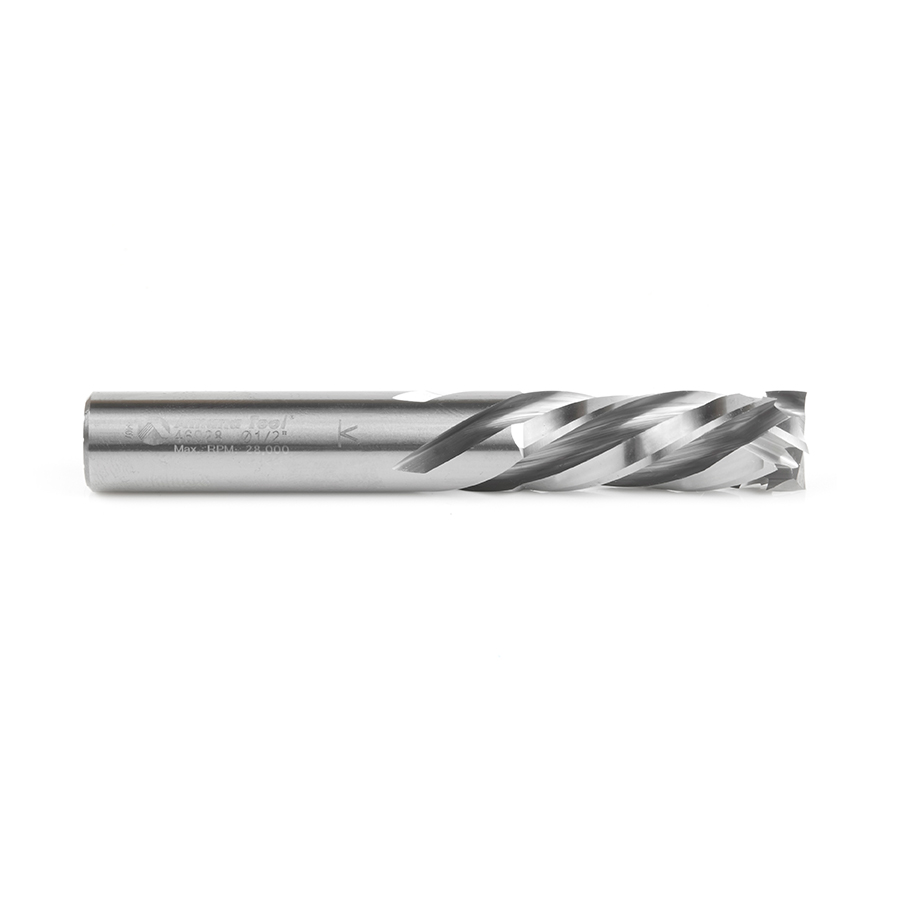

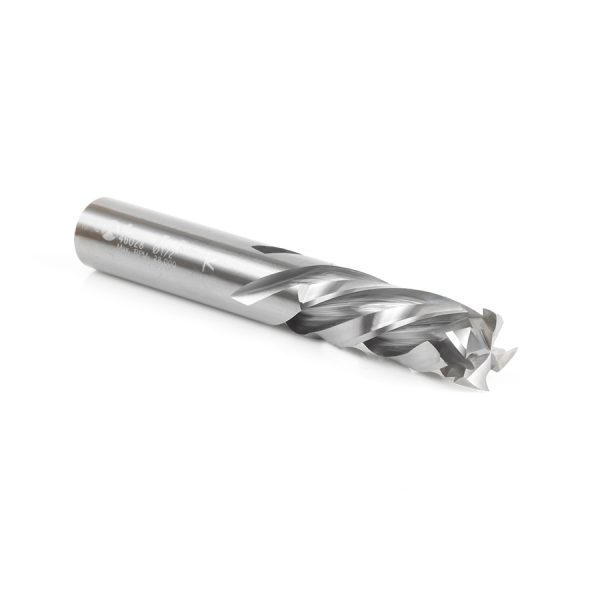

46028 CNC Solid Carbide Mortise Compression Spiral 4 Flute 1/2 Dia x 1-3/8 x 1/2 Inch Shank

Amana 46028 CNC Solid Carbide Mortise Compression Spiral 4 Flute 1/2 Dia x 1-3/8 x 1/2 Inch Shank

Name: Amana 46028 CNC Solid Carbide Mortise Compression Spiral 4 Flute 1/2 Dia x 1-3/8 x 1/2 Inch Shank
SKU: Amana 46028
Availability: InStock

Original price was: $302.95.Current price is: $227.22.

SOLID CAR.MORTISING 1/2″ DIA.

UPC: 738685460283 SKU: Amana 46028 Categories: Amana Tool, CNC Router Bits, Solid Carbide Mortise Compression Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado. 4 flute design for even smoother finish.

Excellent for cutting:

MDF/HDF
Composites
Laminate
Laminated Plywood
Melamine
Particle Board
Softwood/Hardwood
Veneered Plywood

Maximum RPM: 28,000.

Vectric compatible tool file for 46028 available for download, click here.

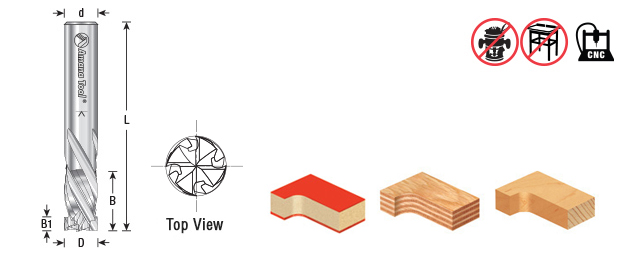

Specifications

(D) Diameter	1/2
(B) Cutting Height	1-3/8
B1	.20
(d) Shank	1/2
Overall Length (L)	3-1/2
Flutes	4

Other Sizes Available

(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Flutes	Description	Tool No.
1/4 (6.35mm)	1 (25.40mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	2	–	46350
1/4 (6.35mm)	1 (25.40mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	2	5	46350-5
1/4 (6.35mm)	1 (25.40mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	1	–	46393
3/8 (9.53mm)	1 (25.40mm)	3/16 (4.76mm)	3/8 (9.53mm)	3 (76.20mm)	3	–	46020
3/8 (9.53mm)	1-1/4	3/16 (4.76mm)	1/2 (12.70mm)	3 (76.20mm)	2	–	46352
3/8 (9.53mm)	7/8 (22.23mm)	1/8 (3.18mm)	3/8 (9.53mm)	3 (76.20mm)	2	–	46367
3/8 (9.53mm)	7/8 (22.23mm)	1/8 (3.18mm)	3/8 (9.53mm)	3 (76.20mm)	2	5	46367-5
3/8 (9.53mm)	1-1/16	0.202mm	3/8 (9.53mm)	3 (76.20mm)	2	–	46395
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	3 (76.20mm)	3	–	46022
1/2 (12.70mm)	1-3/8	1/4 (6.35mm)	1/2 (12.70mm)	3-1/2	3	–	46024
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	1/2 (12.70mm)	3 (76.20mm)	2	–	46354
1/2 (12.70mm)	1-5/8	1/4 (6.35mm)	1/2 (12.70mm)	3-1/2	2	–	46356
1/2 (12.70mm)	2-1/8	1/4 (6.35mm)	1/2 (12.70mm)	4 (101.60mm)	2	–	46360

Weight	0.3 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
