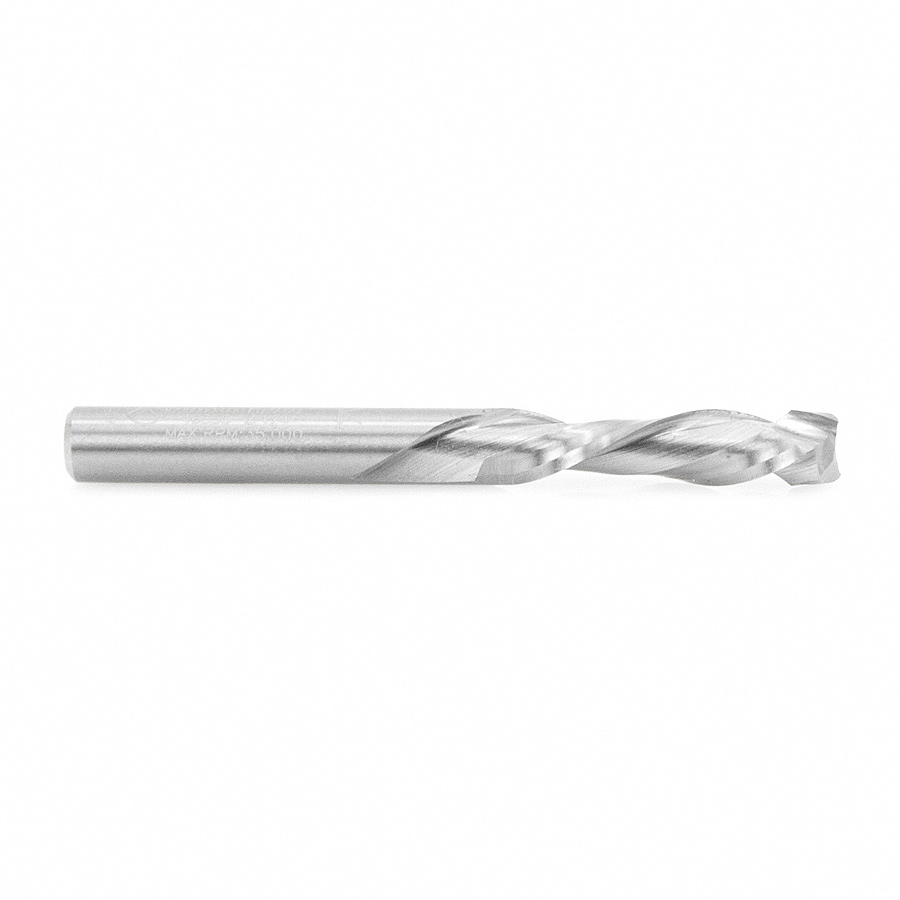

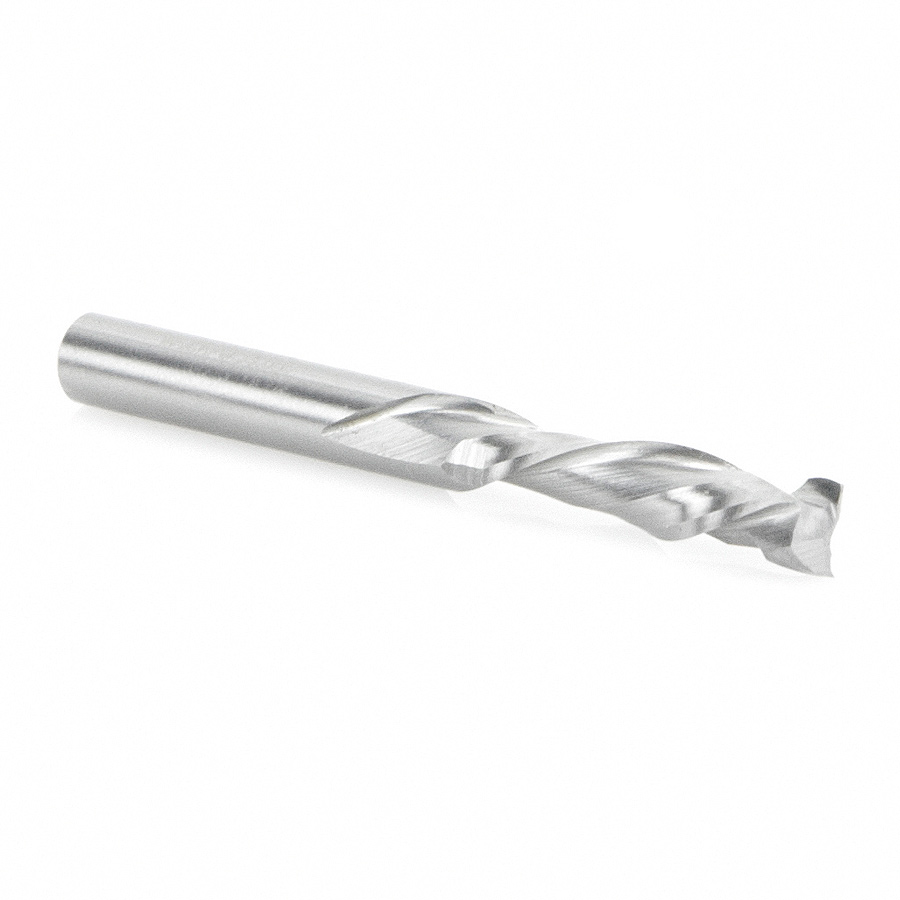

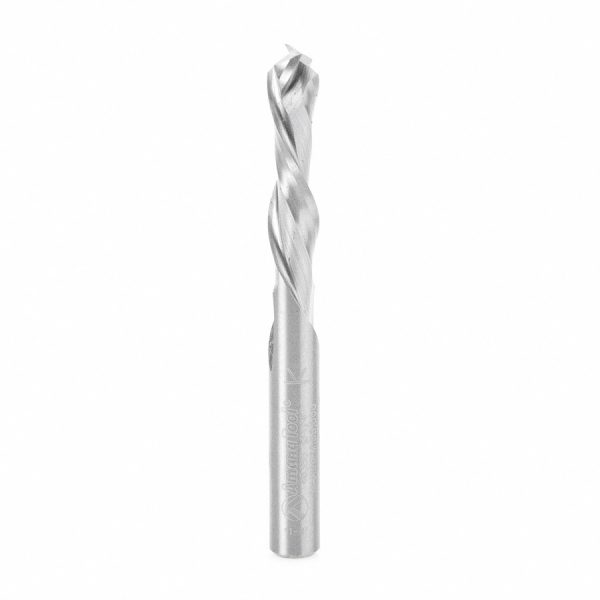

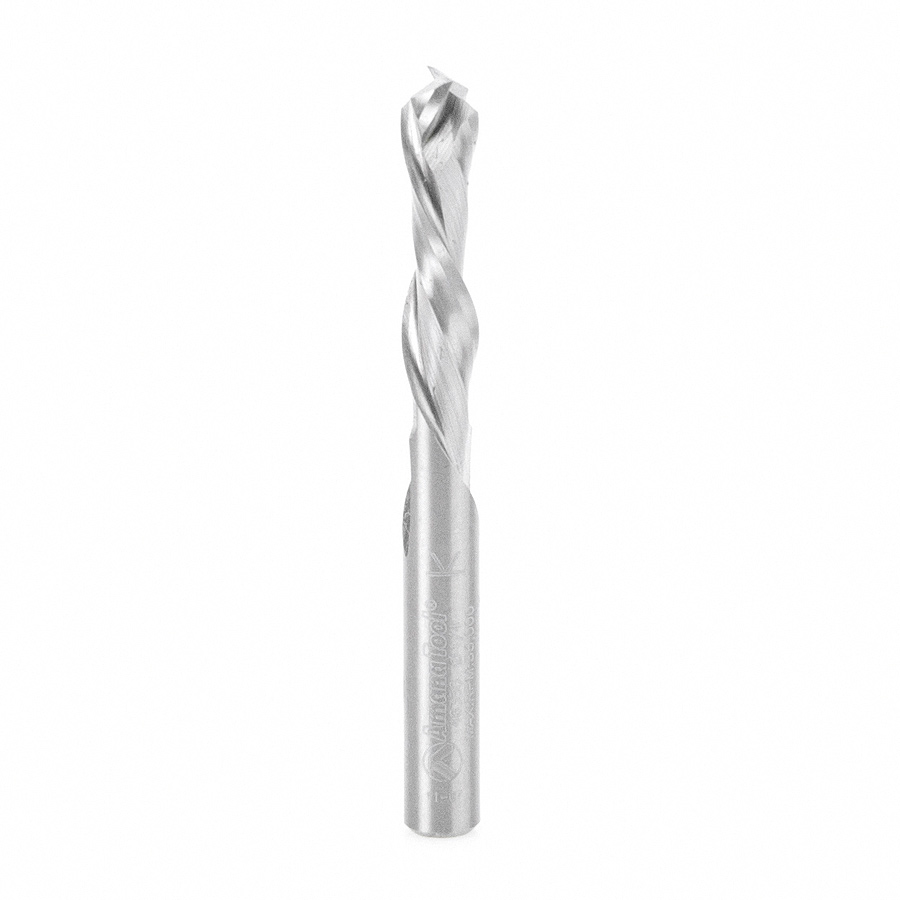

46350 CNC Solid Carbide Mortise Compression Spiral 1/4 Dia x 1 Inch x 1/4 Shank

Amana 46350 CNC Solid Carbide Mortise Compression Spiral 1/4 Dia x 1 Inch x 1/4 Shank

Name: Amana 46350 CNC Solid Carbide Mortise Compression Spiral 1/4 Dia x 1 Inch x 1/4 Shank
SKU: Amana 46350
Availability: InStock

Original price was: $95.70.Current price is: $71.78.

SOLID CAR.MORTISING 1/4″ DIA.

UPC: 738685463505 SKU: Amana 46350 Categories: Amana Tool, CNC Router Bits, Solid Carbide Mortise Compression Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado.

Excellent for cutting:

MDF/HDF
Laminate
Laminated Plywood
Melamine
Particle Board
Softwood/Hardwood
Veneered Plywood

Recommended RPM 20,000-21,000.

Vectric and Fusion 360 compatible tool files for 46350 available for download, click here.

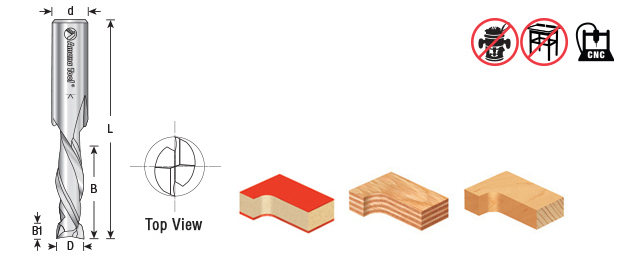

Specifications

(D) Diameter	1/4
(B) Cutting Height	1
B1	1/8
(d) Shank	1/4
Overall Length (L)	2-1/2
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Flutes	Description	Tool No.
1/4 (6.35mm)	1 (25.40mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	2	5	46350-5
1/4 (6.35mm)	1 (25.40mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	1	–	46393
3/8 (9.53mm)	1 (25.40mm)	3/16 (4.76mm)	3/8 (9.53mm)	3 (76.20mm)	3	–	46020
3/8 (9.53mm)	1-1/4	3/16 (4.76mm)	1/2 (12.70mm)	3 (76.20mm)	2	–	46352
3/8 (9.53mm)	7/8 (22.23mm)	1/8 (3.18mm)	3/8 (9.53mm)	3 (76.20mm)	2	–	46367
3/8 (9.53mm)	7/8 (22.23mm)	1/8 (3.18mm)	3/8 (9.53mm)	3 (76.20mm)	2	5	46367-5
3/8 (9.53mm)	1-1/16	0.202mm	3/8 (9.53mm)	3 (76.20mm)	2	–	46395
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	3 (76.20mm)	3	–	46022
1/2 (12.70mm)	1-3/8	1/4 (6.35mm)	1/2 (12.70mm)	3-1/2	3	–	46024
1/2 (12.70mm)	1-3/8	.20 (5.08mm)	1/2 (12.70mm)	3-1/2	4	–	46028
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	1/2 (12.70mm)	3 (76.20mm)	2	–	46354
1/2 (12.70mm)	1-5/8	1/4 (6.35mm)	1/2 (12.70mm)	3-1/2	2	–	46356
1/2 (12.70mm)	2-1/8	1/4 (6.35mm)	1/2 (12.70mm)	4 (101.60mm)	2	–	46360

Weight	0.06 lbs
