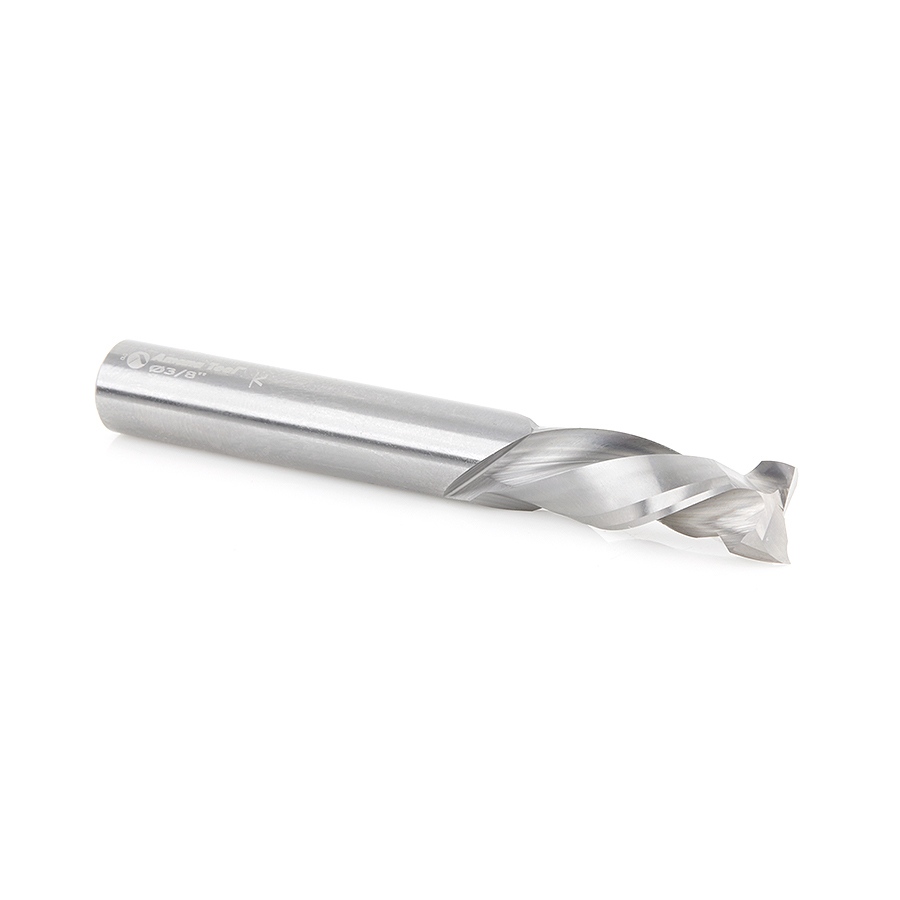

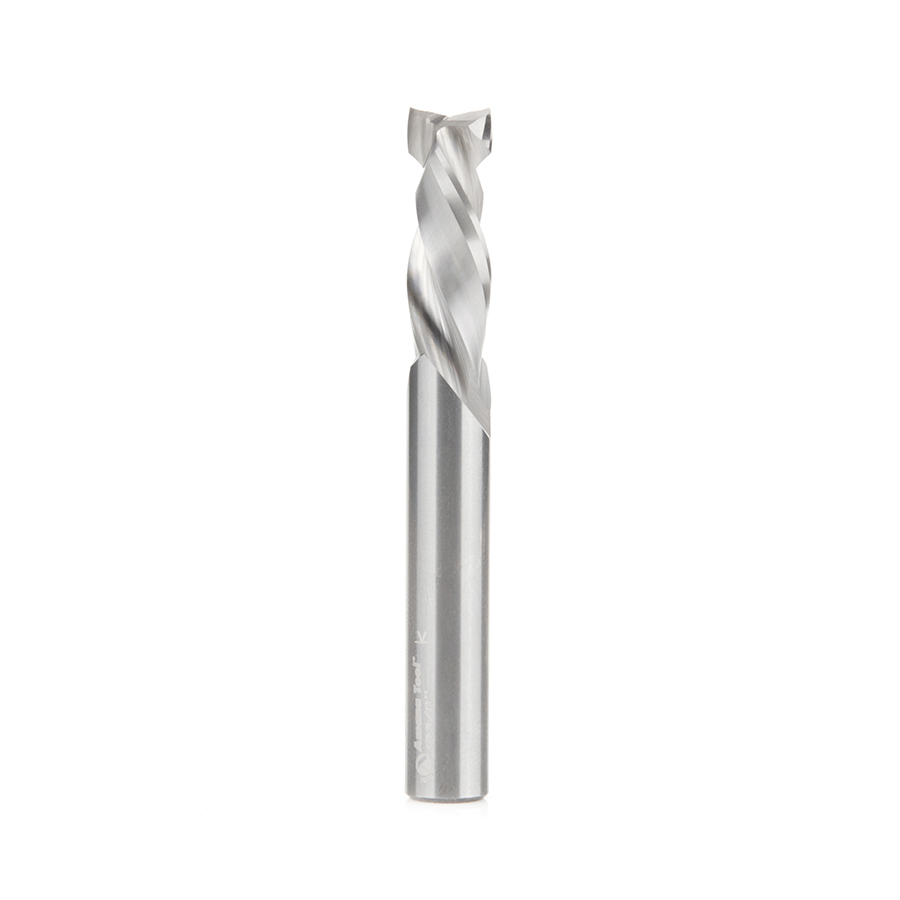

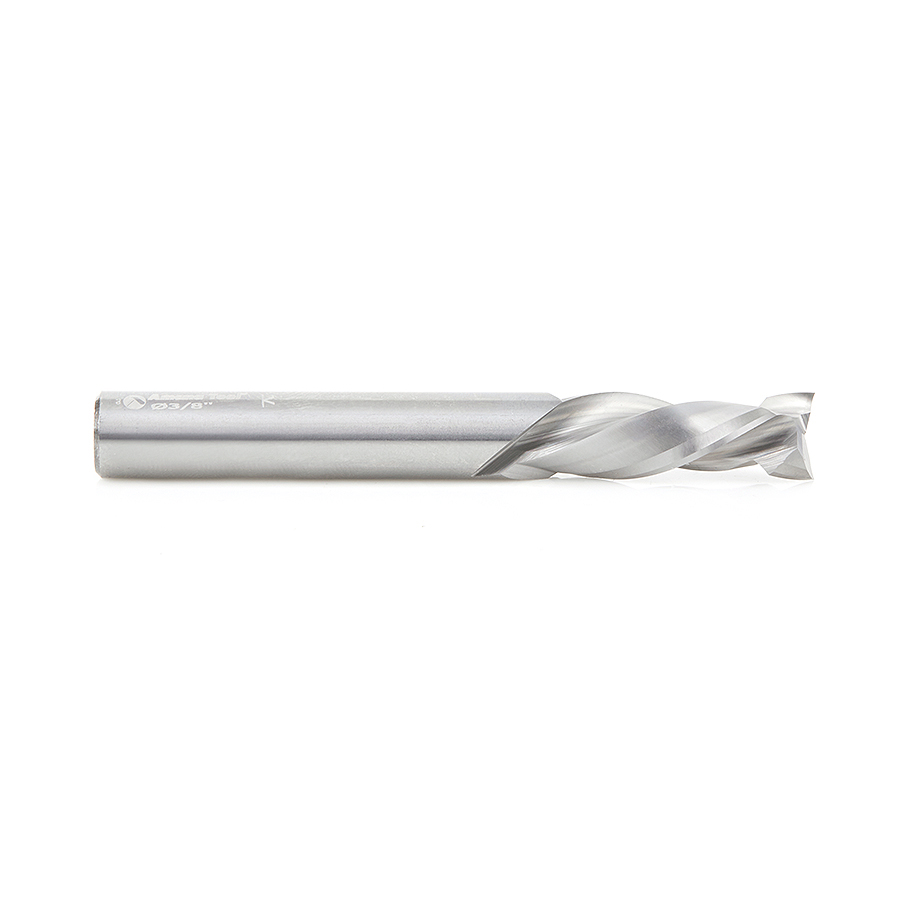

46395 CNC Solid Carbide Mortise Compression Spiral 3/8 Dia x 1-1/16 x 3/8 Shank

Amana 46395 CNC Solid Carbide Mortise Compression Spiral 3/8 Dia x 1-1/16 x 3/8 Shank

Name: Amana 46395 CNC Solid Carbide Mortise Compression Spiral 3/8 Dia x 1-1/16 x 3/8 Shank
SKU: Amana 46395
Availability: InStock

Original price was: $140.30.Current price is: $105.23.

SOLID CAR.MORTISING 3/8″ DIA.

UPC: 738685463956 SKU: Amana 46395 Categories: Amana Tool, CNC Router Bits, Solid Carbide Mortise Compression Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado.

Excellent for cutting:

MDF/HDF
Laminate
Laminated Plywood
Melamine
Particle Board
Softwood/Hardwood
Veneered Plywood

Recommended RPM 20,000-21,000.

Vectric compatible tool file for 46395 available for download,click here.

Specifications

(D) Diameter	3/8
(B) Cutting Height	1-1/16
B1	0.202mm
(d) Shank	3/8
Overall Length (L)	3
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	B1	Flutes	Tool No.
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	1/8 (3.18mm)	2	46350
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	1/8 (3.18mm)	2	46350-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	1/8 (3.18mm)	1	46393
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	3 (76.20mm)	3/16 (4.76mm)	3	46020
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	3/16 (4.76mm)	2	46352
3/8 (9.53mm)	7/8 (22.23mm)	3/8 (9.53mm)	3 (76.20mm)	1/8 (3.18mm)	2	46367
3/8 (9.53mm)	7/8 (22.23mm)	3/8 (9.53mm)	3 (76.20mm)	1/8 (3.18mm)	2	46367-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	1/4 (6.35mm)	3	46022
1/2 (12.70mm)	1-3/8	1/2 (12.70mm)	3-1/2	1/4 (6.35mm)	3	46024
1/2 (12.70mm)	1-3/8	1/2 (12.70mm)	3-1/2	.20 (5.08mm)	4	46028
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	1/4 (6.35mm)	2	46354
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	1/4 (6.35mm)	2	46356
1/2 (12.70mm)	2-1/8	1/2 (12.70mm)	4 (101.60mm)	1/4 (6.35mm)	2	46360

Weight	0.16 lbs
