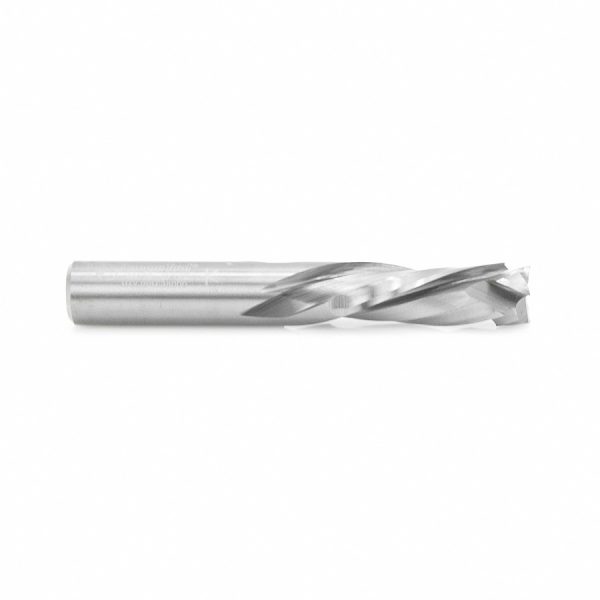

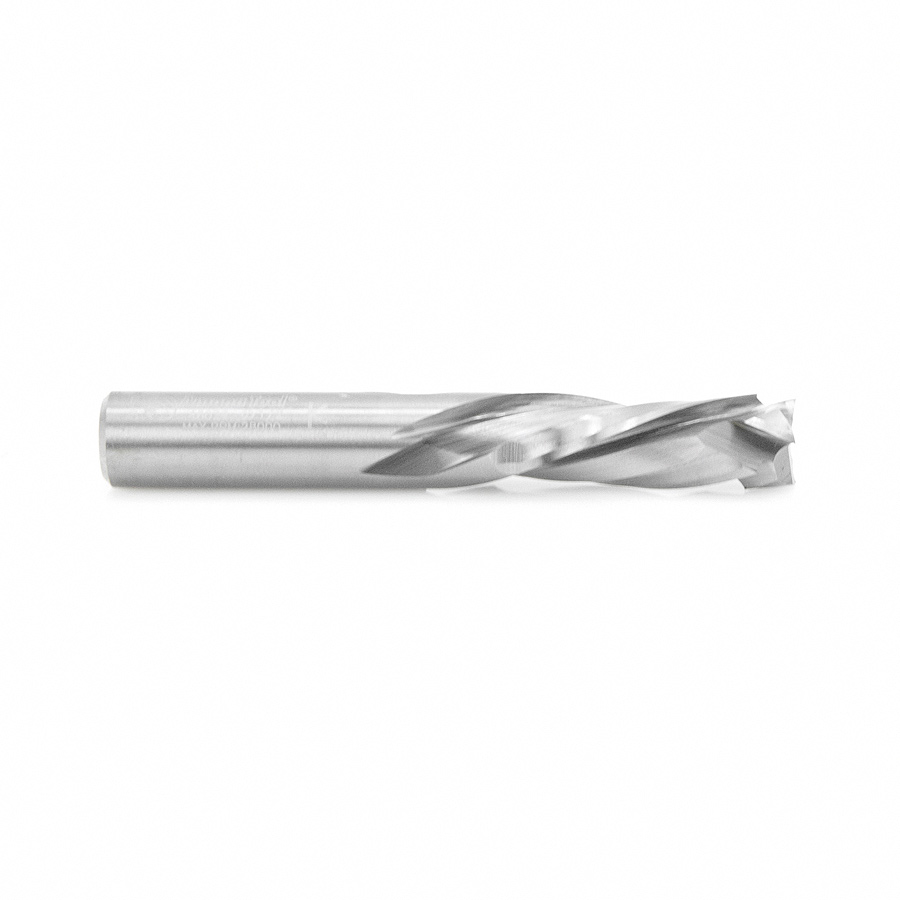

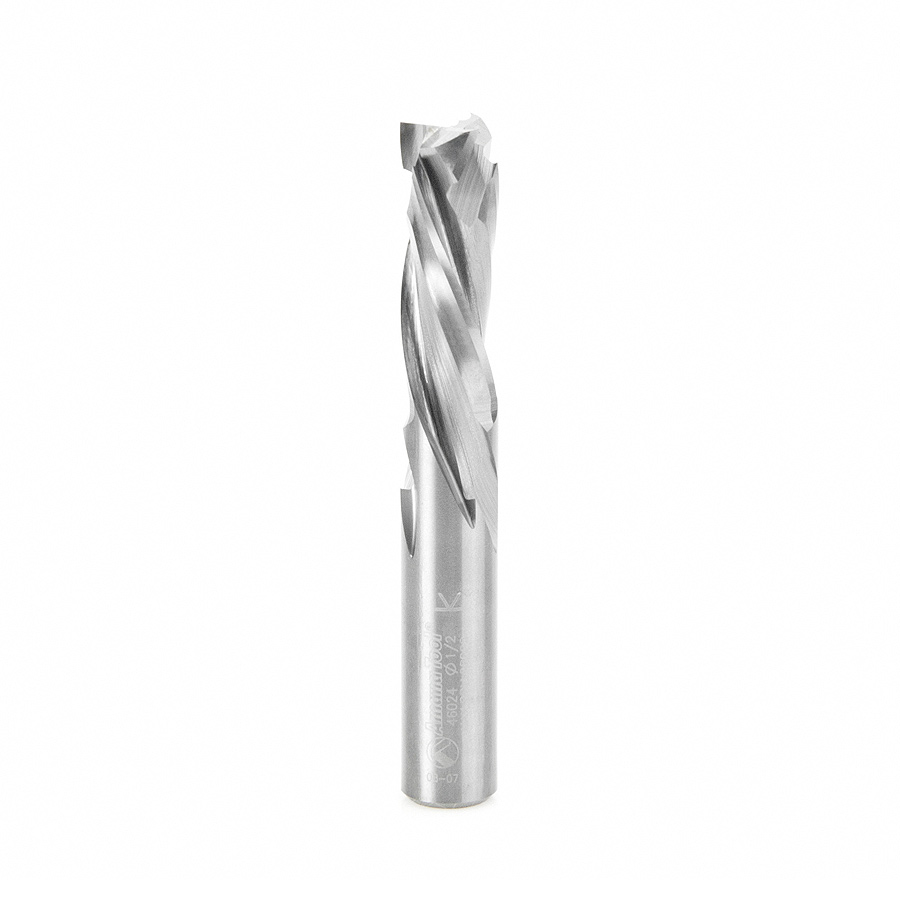

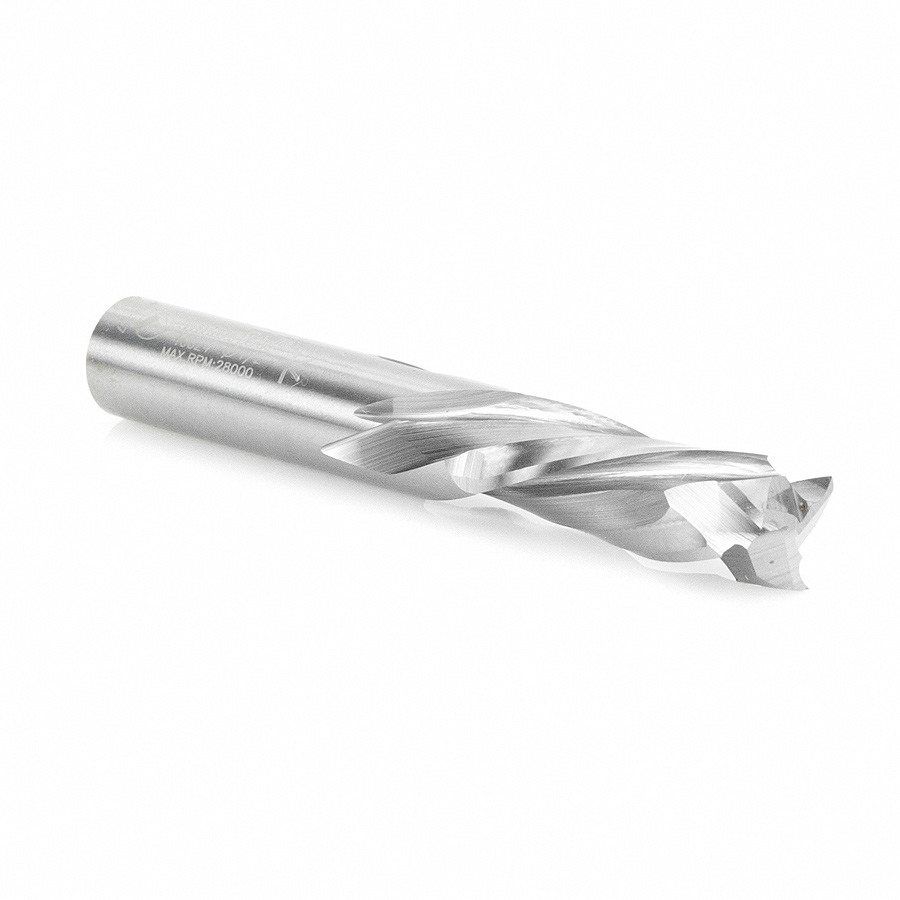

46024 CNC Solid Carbide Mortise Compression Spiral 3 Flute 1/2 Dia x 1-3/8 x 1/2 Inch Shank

Amana 46024 CNC Solid Carbide Mortise Compression Spiral 3 Flute 1/2 Dia x 1-3/8 x 1/2 Inch Shank

Name: Amana 46024 CNC Solid Carbide Mortise Compression Spiral 3 Flute 1/2 Dia x 1-3/8 x 1/2 Inch Shank
SKU: Amana 46024
Availability: InStock

Original price was: $223.20.Current price is: $167.40.

SOLID CAR.MORTISING 1/2″ DIA.

UPC: 738685460245 SKU: Amana 46024 Categories: Amana Tool, CNC Router Bits, Solid Carbide Mortise Compression Spiral CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado. The 3 flute design provides an extra-smooth finish.

Excellent for cutting:

MDF/HDF
Laminate
Laminated Plywood
Melamine
Particle Board
Softwood/Hardwood
Veneered Plywood

Maximum RPM: 28,000.

Vectric compatible tool file for 46024 available for download,click here.

Specifications

(D) Diameter	1/2
(B) Cutting Height	1-3/8
B1	1/4
(d) Shank	1/2
Overall Length (L)	3-1/2
Flutes	3

Other Sizes Available

(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Flutes	Description	Tool No.
1/4 (6.35mm)	1 (25.40mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	2	–	46350
1/4 (6.35mm)	1 (25.40mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	2	5	46350-5
1/4 (6.35mm)	1 (25.40mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/2	1	–	46393
3/8 (9.53mm)	1 (25.40mm)	3/16 (4.76mm)	3/8 (9.53mm)	3 (76.20mm)	3	–	46020
3/8 (9.53mm)	1-1/4	3/16 (4.76mm)	1/2 (12.70mm)	3 (76.20mm)	2	–	46352
3/8 (9.53mm)	7/8 (22.23mm)	1/8 (3.18mm)	3/8 (9.53mm)	3 (76.20mm)	2	–	46367
3/8 (9.53mm)	7/8 (22.23mm)	1/8 (3.18mm)	3/8 (9.53mm)	3 (76.20mm)	2	5	46367-5
3/8 (9.53mm)	1-1/16	0.202mm	3/8 (9.53mm)	3 (76.20mm)	2	–	46395
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	1/2 (12.70mm)	3 (76.20mm)	3	–	46022
1/2 (12.70mm)	1-3/8	.20 (5.08mm)	1/2 (12.70mm)	3-1/2	4	–	46028
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	1/2 (12.70mm)	3 (76.20mm)	2	–	46354
1/2 (12.70mm)	1-5/8	1/4 (6.35mm)	1/2 (12.70mm)	3-1/2	2	–	46356
1/2 (12.70mm)	2-1/8	1/4 (6.35mm)	1/2 (12.70mm)	4 (101.60mm)	2	–	46360

Weight	0.32 lbs
