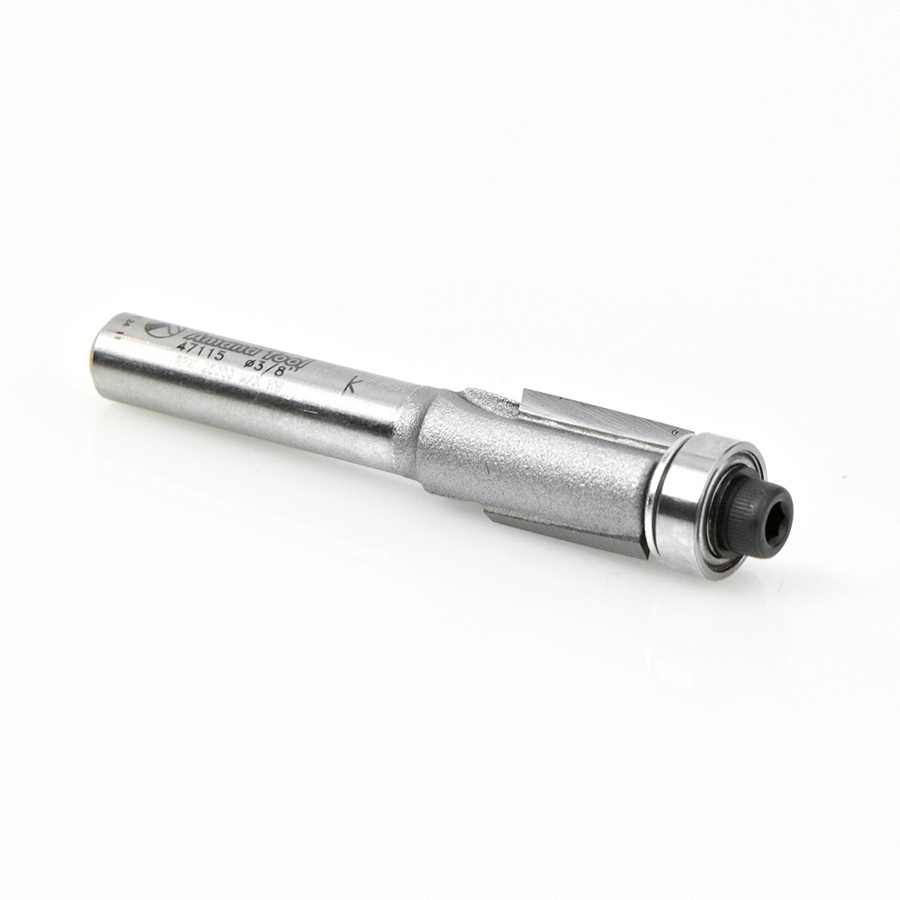

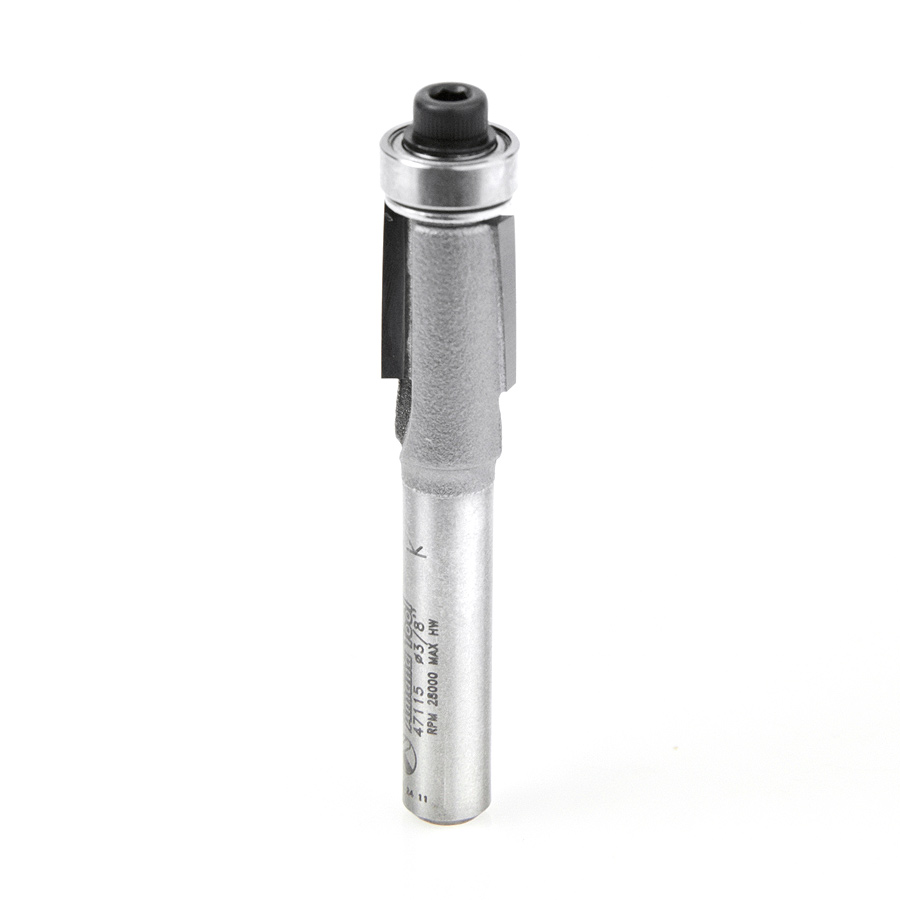

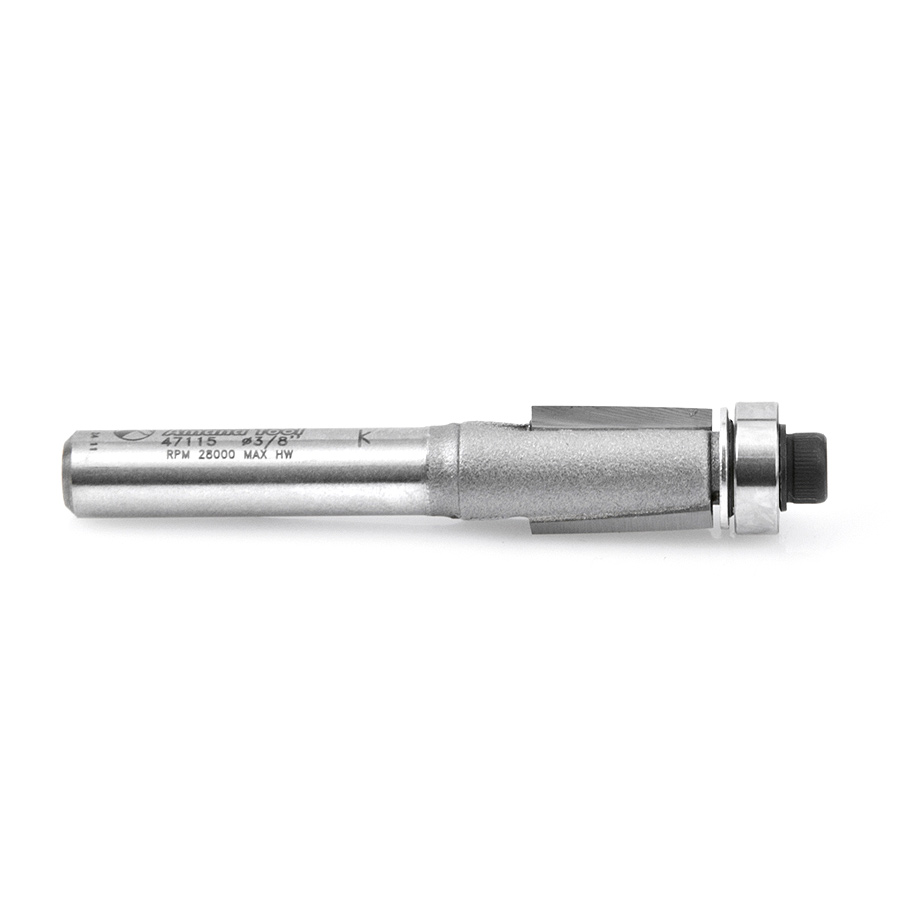

47115 Carbide Tipped Dynabit Laminate Flush Trim 3/8 Dia x 1/2 Inch x 1/4 Shank

Amana 47115 Carbide Tipped Dynabit Laminate Flush Trim 3/8 Dia x 1/2 Inch x 1/4 Shank

Name: Amana 47115 Carbide Tipped Dynabit Laminate Flush Trim 3/8 Dia x 1/2 Inch x 1/4 Shank
SKU: Amana 47115
Availability: InStock

Original price was: $39.10.Current price is: $29.33.

FLUSH TRIM DOWNSHEAR 1/4 SHANK

UPC: 738685471159 SKU: Amana 47115 Categories: Amana Tool, Dynabit Laminate Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

The Dynabit™ line features a modest down-shear for an excellent finish. The helix bits have a spiral-like twist to the cutting edges, making them especially good on difficult materials such as melamine. An adhesive-trapping gap between cutting edges and pilot bearing is featured on tools #47111 & #47113.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Direction	Down-Shear
Diameter (D)	3/8
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2-1/8
Type	Down-shear
Replacement Bearing	47702
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Replacement Bearing	Tool No.
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	Down-shear	47706	47105
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Down-shear	47706	47109
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	Down-shear	47706	47111
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	Down-shear	47706	47129
5/8 (15.88mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	Flush Helix	47712	47180
3/4 (19.05mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	Flush Helix	47714	47182

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
