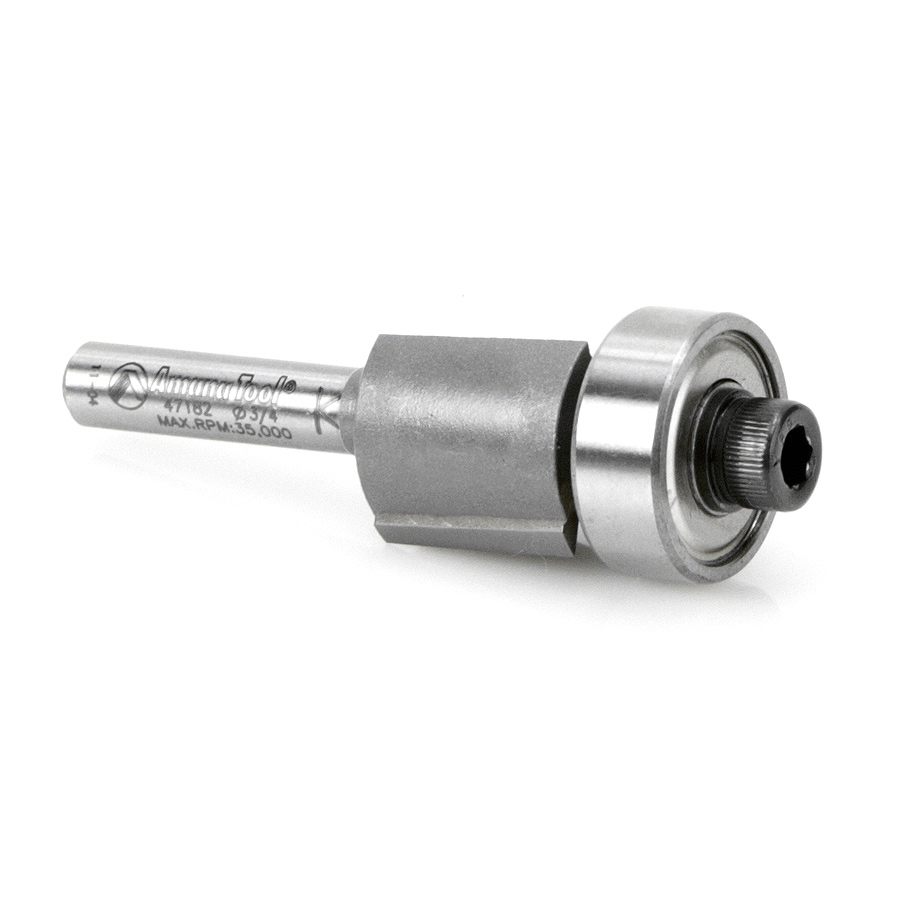

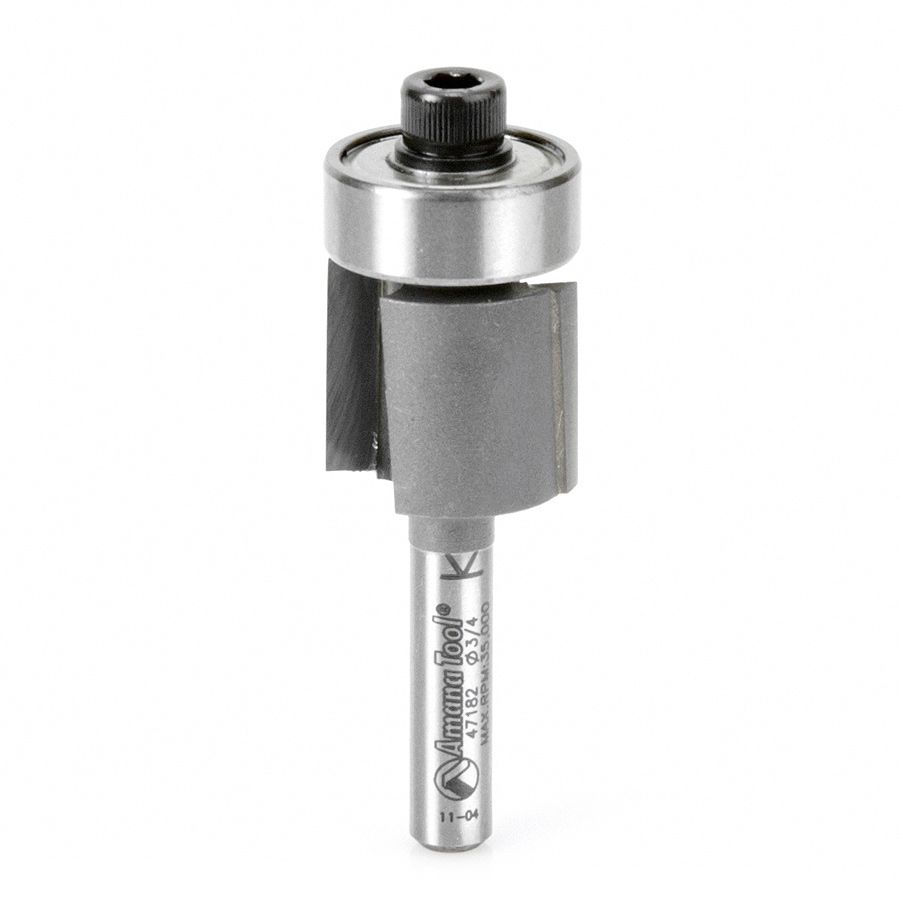

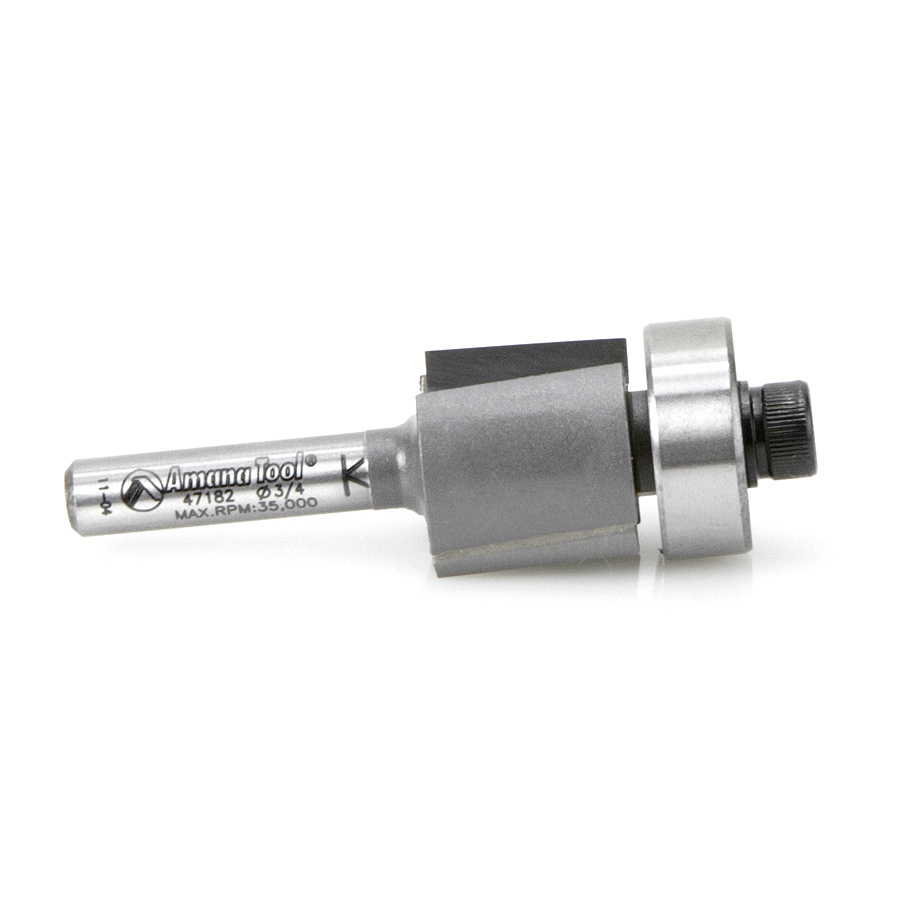

47182 Carbide Tipped Dynabit Laminate Trim Flush Helix 3/4 Dia x 5/8 x 1/4 Inch Shank

Amana 47182 Carbide Tipped Dynabit Laminate Trim Flush Helix 3/4 Dia x 5/8 x 1/4 Inch Shank

Name: Amana 47182 Carbide Tipped Dynabit Laminate Trim Flush Helix 3/4 Dia x 5/8 x 1/4 Inch Shank
SKU: Amana 47182
Availability: InStock

Original price was: $52.75.Current price is: $39.57.

HELIX BIT 3/4 DIAMETER

UPC: 738685871829 SKU: Amana 47182 Categories: Amana Tool, Dynabit Laminate Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

The Dynabit™ line features a modest down-shear for an excellent finish. The helix bits have a spiral-like twist to the cutting edges, making them especially good on difficult materials such as melamine. An adhesive-trapping gap between cutting edges and pilot bearing is featured on tools #47111 & #47113.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Diameter (D)	3/4
Cutting Height (B)	5/8
Shank (d)	1/4
Overall Length (L)	2-1/4
Type	Flush Helix
Replacement Bearing	47714
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Replacement Bearing	Tool No.
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	Down-shear	47702	47115
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	Down-shear	47706	47105
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Down-shear	47706	47109
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	Down-shear	47706	47111
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	Down-shear	47706	47129
5/8 (15.88mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	Flush Helix	47712	47180

Weight	0.12 lbs
