49532 Carbide Tipped Edge Detail for Rosettes 20 Deg x 15/16 Dia x 1/4 x 1/4 Inch Shank

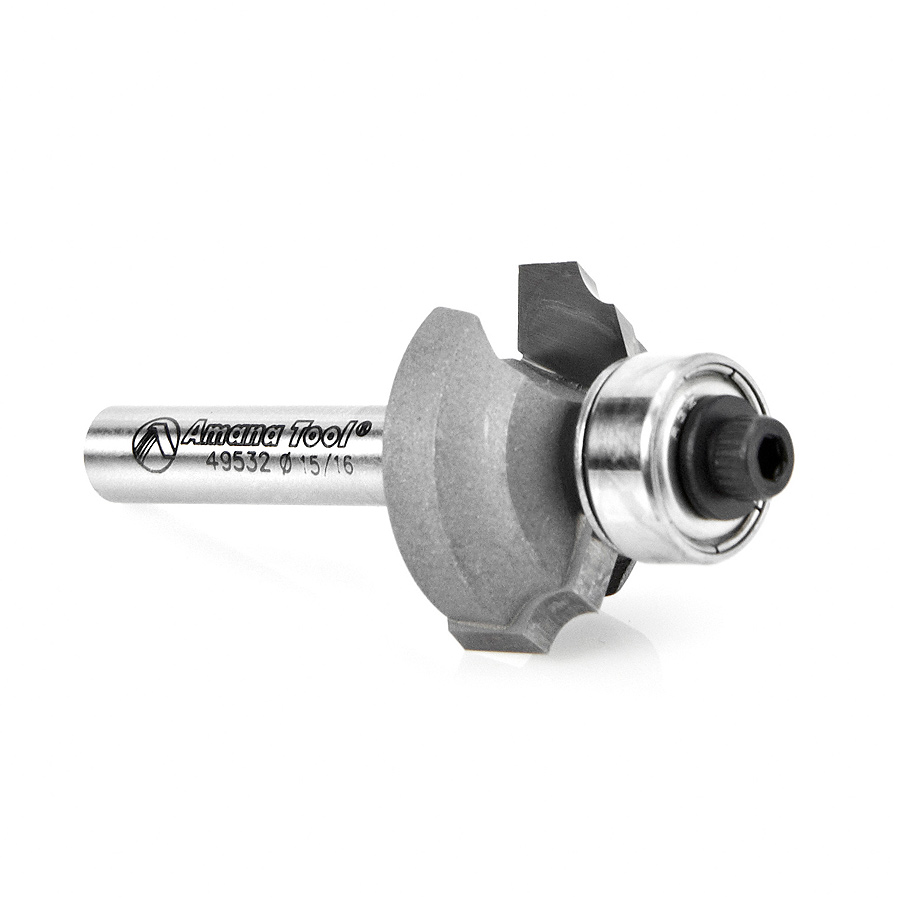

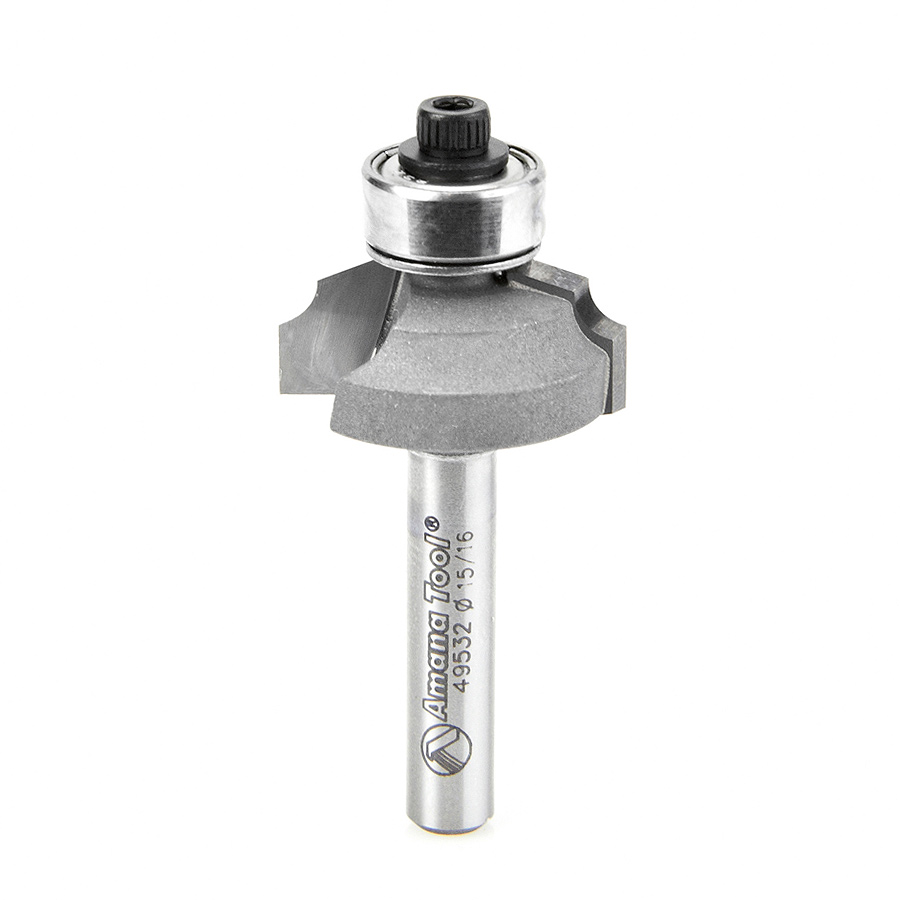

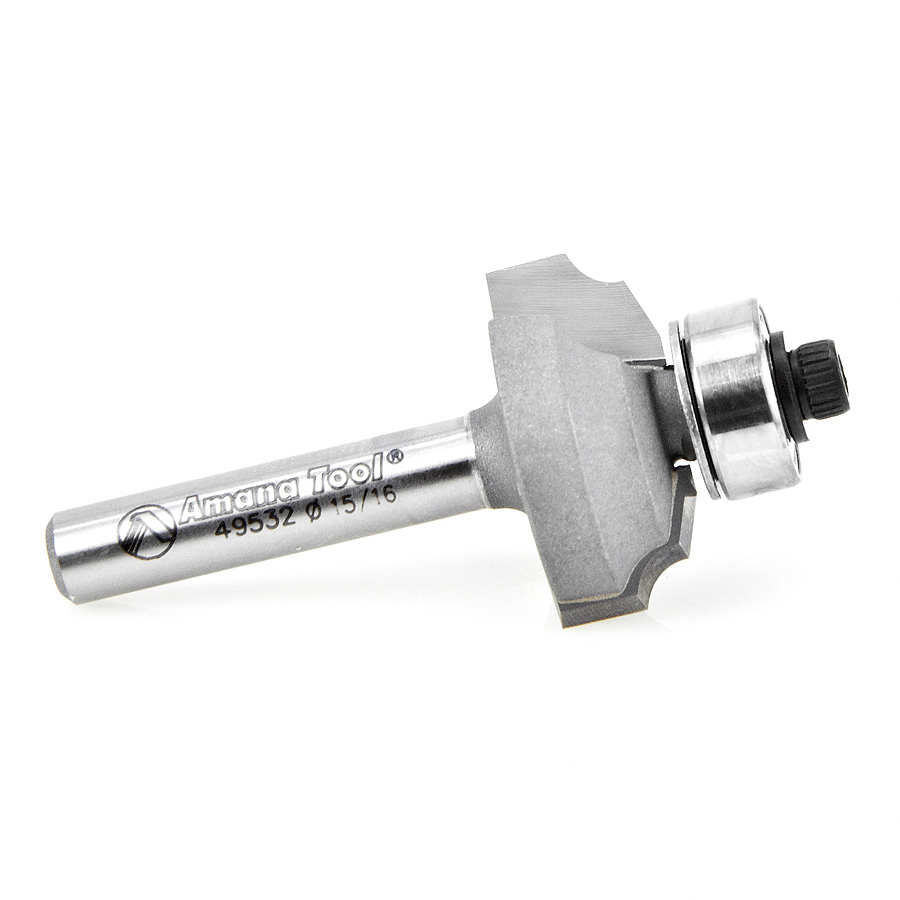

Amana 49532 Carbide Tipped Edge Detail for Rosettes 20 Deg x 15/16 Dia x 1/4 x 1/4 Inch Shank

Name: Amana 49532 Carbide Tipped Edge Detail for Rosettes 20 Deg x 15/16 Dia x 1/4 x 1/4 Inch Shank
SKU: Amana 49532
Availability: InStock

Original price was: $62.65.Current price is: $46.99.

9/64″ RADIUS DOOR EDGE

UPC: 738685495322 SKU: Amana 49532 Categories: Amana Tool, Boring & Drilling Bits, Edge Detail Router Bits for Rosettes, Rosette Cutter System

Item Description

Cuts a decorative edge on cabinet fronts. Shallow design will also work well with European hinges. Create the edge detail to the rosette to achieve the finished look.

Replacement Parts

Tool No.	Bearing(s)
49532	47706

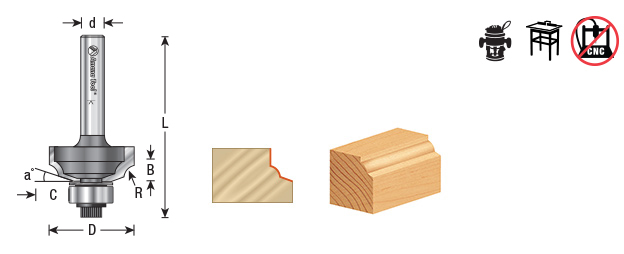

Specifications

Diameter (D)	15/16
Radius (R)	9/64
Cutting Height (B)	1/4
Shank (d)	1/4
Overall Length (L)	1-5/8
Replacement Bearing	47706
C	7/32

Other Sizes Available

Diameter (D)	D1	Radius (R)	R1	R2	Cutting Height (B)	C	Shank (d)	Overall Length (L)	Replacement Bearing	Tool No.
1-9/16	1/2 (12.70mm)	9/64 (3.57mm)	11/32 (8.73mm)	–	7/16 (11.11mm)	17/32 (13.49mm)	1/2 (12.70mm)	2-19/64	47706	49535
1-1/4	1/2 (12.70mm)	5/64 (1.98mm)	–	–	3/8 (9.53mm)	3/8 (9.53mm)	1/2 (12.70mm)	1-7/8	47706	49530
1-1/4	–	7/32 (5.56mm)	9/64 (3.57mm)	–	7/16 (11.11mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-25/64	47706	49534
1-3/4	1/2 (12.70mm)	7/64 (2.78mm)	17/32 (13.49mm)	3/32 (2.38mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	47706	49536
1-3/4	1/2 (12.70mm)	1/8 (3.18mm)	31/64 (12.30mm)	–	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	47706	49537
1-3/4	1/2 (12.70mm)	1/4 (6.35mm)	17/64 (6.75mm)	–	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	47706	49538

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
