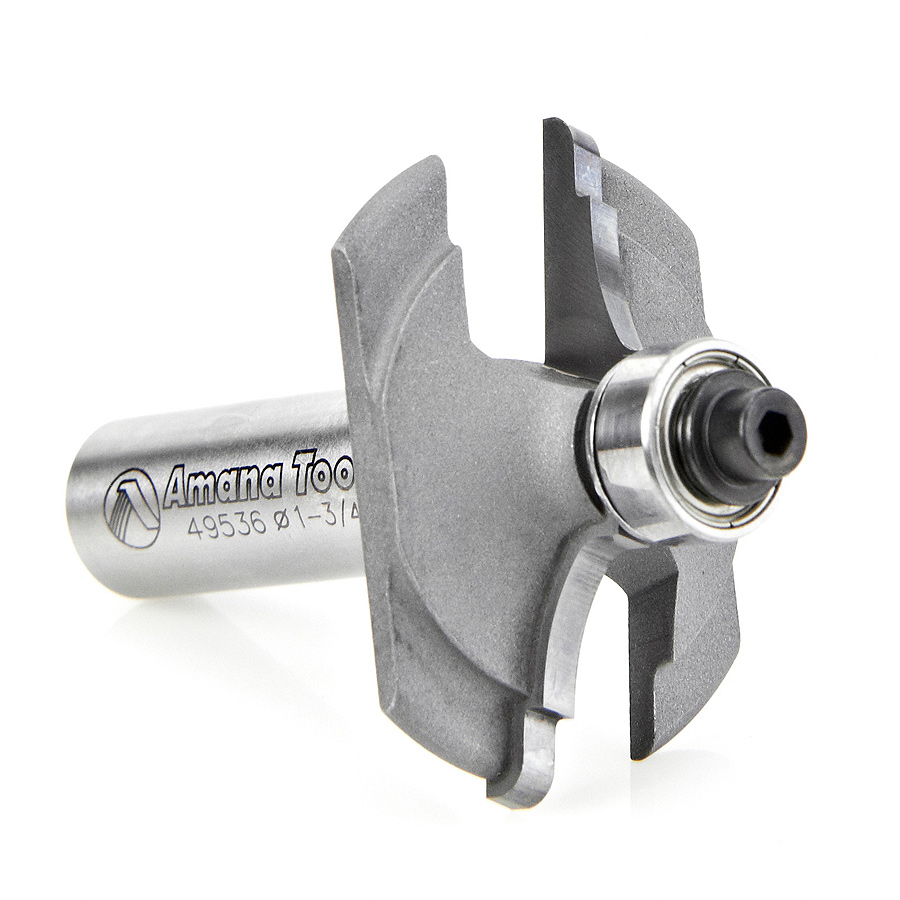

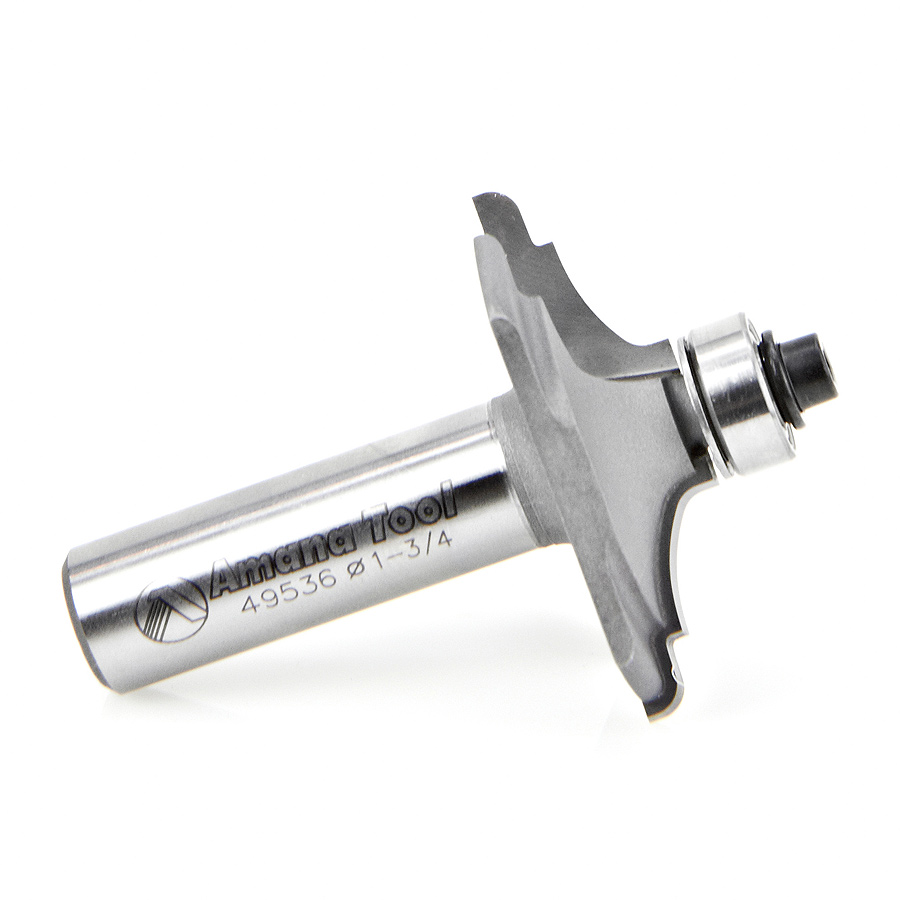

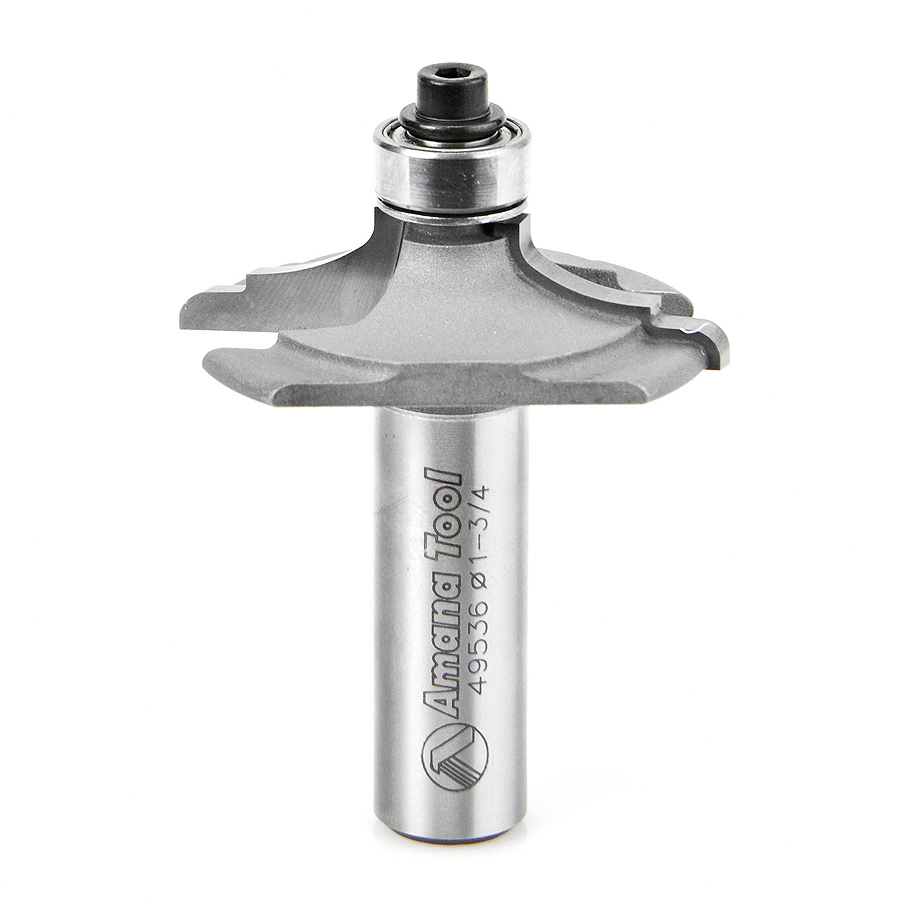

49536 Carbide Tipped Cabinet Door Edge - Front Face Edge - 7/64 Radius x 1-3/4 Dia x 7/16 x 1/2 Inch Shank

Amana 49536 Carbide Tipped Cabinet Door Edge – Front Face Edge – 7/64 Radius x 1-3/4 Dia x 7/16 x 1/2 Inch Shank

Name: Amana 49536 Carbide Tipped Cabinet Door Edge - Front Face Edge - 7/64 Radius x 1-3/4 Dia x 7/16 x 1/2 Inch Shank
SKU: Amana 49536
Availability: InStock

Original price was: $92.00.Current price is: $69.00.

DOOR/FRONT FACE EDGE 17/32″R

UPC: 738685495360 SKU: Amana 49536 Categories: Amana Tool, Cabinet Door Edge Router Bits, Door Making Router Bits, Router Bits

Item Description

Cuts a decorative edge on cabinet fronts. Shallow design will also work well with European hinges.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49536	47706	67096	67098	67101

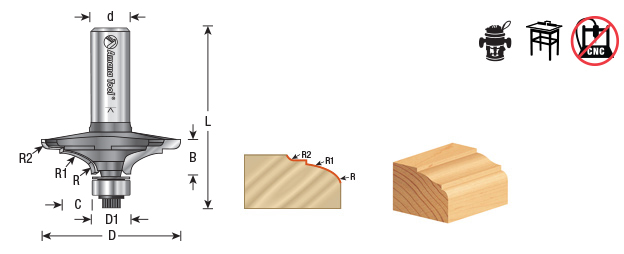

Specifications

Diameter (D)	1-3/4
D1	1/2
Radius (R)	7/64
Cutting Height (B)	7/16
Shank (d)	1/2
Overall Length (L)	2-1/2
R2	3/32
Replacement Bearing	47706
R1	17/32
Flutes	2
C	5/8

Other Sizes Available

Diameter (D)	D1	Radius (R)	R1	Cutting Height (B)	C	Shank (d)	Overall Length (L)	Replacement Bearing	Tool No.
15/16 (23.81mm)	–	9/64 (3.57mm)	–	1/4 (6.35mm)	7/32 (5.56mm)	1/4 (6.35mm)	1-5/8	47706	49532
1-9/16	1/2 (12.70mm)	9/64 (3.57mm)	11/32 (8.73mm)	7/16 (11.11mm)	17/32 (13.49mm)	1/2 (12.70mm)	2-19/64	47706	49535
1-1/4	1/2 (12.70mm)	5/64 (1.98mm)	–	3/8 (9.53mm)	3/8 (9.53mm)	1/2 (12.70mm)	1-7/8	47706	49530
1-1/4	–	7/32 (5.56mm)	9/64 (3.57mm)	7/16 (11.11mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-25/64	47706	49534
1-3/4	1/2 (12.70mm)	1/8 (3.18mm)	31/64 (12.30mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	47706	49537
1-3/4	1/2 (12.70mm)	1/4 (6.35mm)	17/64 (6.75mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	47706	49538

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
