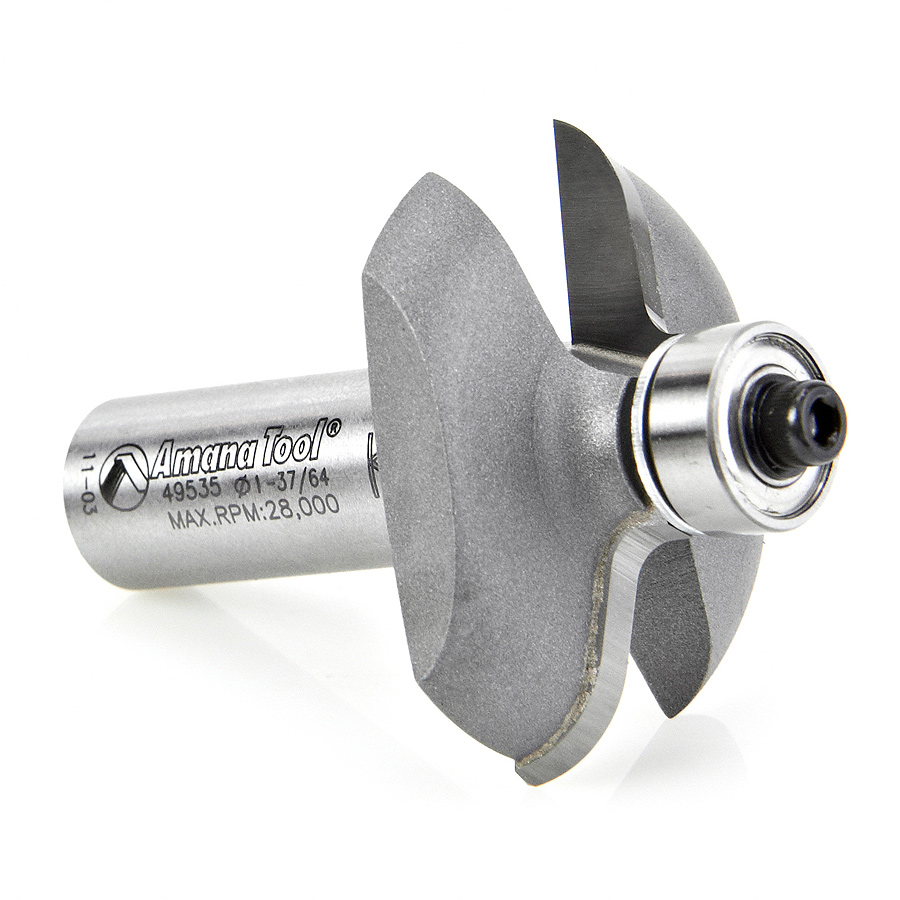

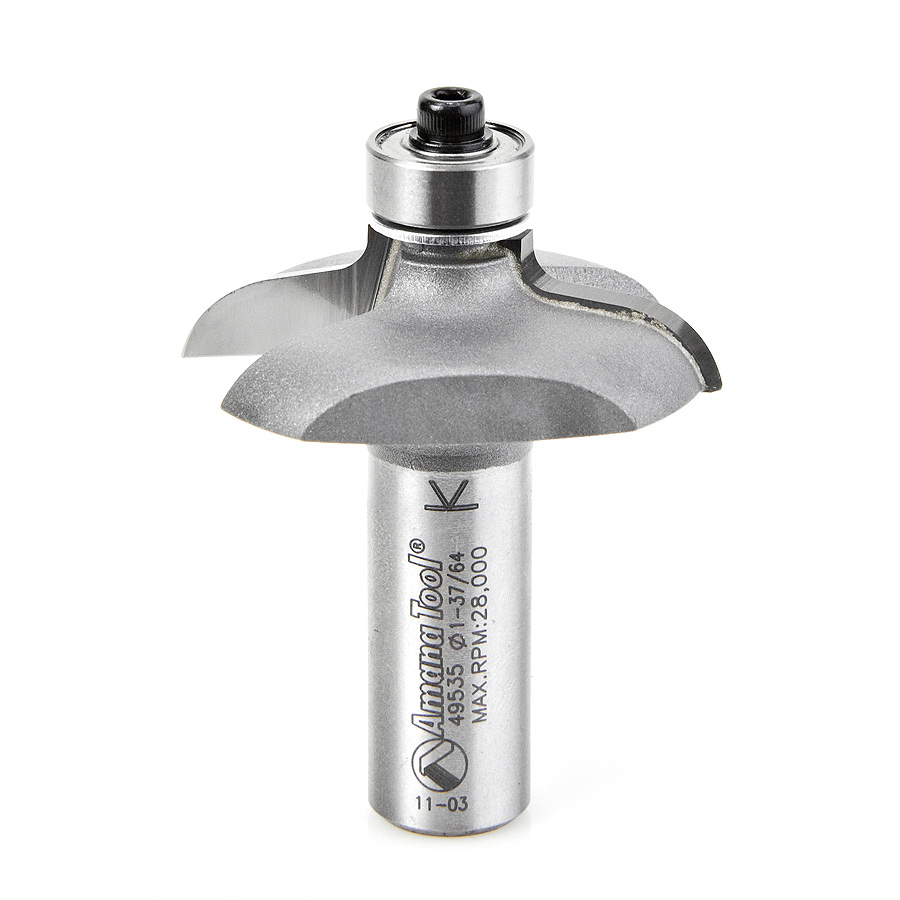

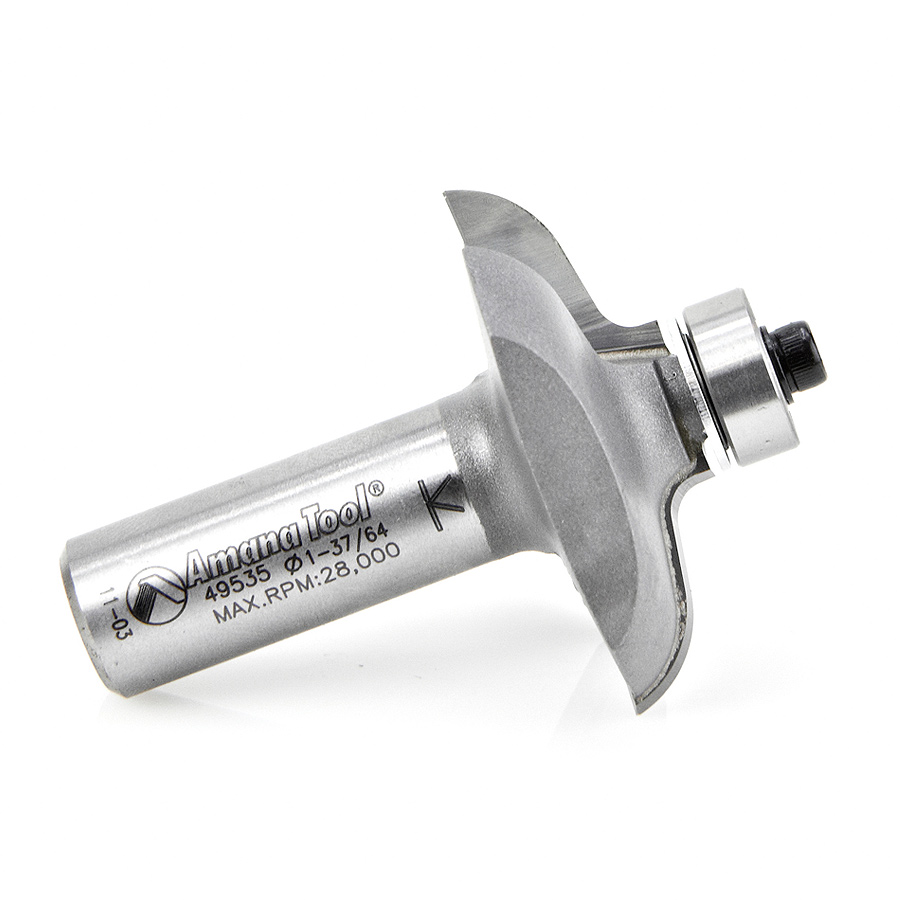

49535 Carbide Tipped Cabinet Door Edge - Front Face Edge - 1/8 x 11/32 Radius x 1-5/8 Dia x 7/16 x 1/2 Inch Shank

Amana 49535 Carbide Tipped Cabinet Door Edge – Front Face Edge – 1/8 x 11/32 Radius x 1-5/8 Dia x 7/16 x 1/2 Inch Shank

Name: Amana 49535 Carbide Tipped Cabinet Door Edge - Front Face Edge - 1/8 x 11/32 Radius x 1-5/8 Dia x 7/16 x 1/2 Inch Shank
SKU: Amana 49535
Availability: InStock

Original price was: $88.10.Current price is: $66.08.

DOOR/FRONT FACE EDGE 11/32″R

UPC: 738685495353 SKU: Amana 49535 Categories: Amana Tool, Cabinet Door Edge Router Bits, Door Making Router Bits, Router Bits

Item Description

Cuts a decorative edge on cabinet fronts. Shallow design will also work well with European hinges.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49535	47706	67096	67098	67101

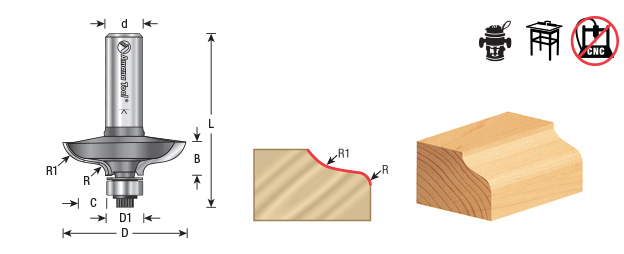

Specifications

Diameter (D)	1-9/16
D1	1/2
Radius (R)	9/64
Cutting Height (B)	7/16
Shank (d)	1/2
Overall Length (L)	2-19/64
Replacement Bearing	47706
R1	11/32
Flutes	2
C	17/32

Other Sizes Available

Diameter (D)	D1	Radius (R)	R1	R2	Cutting Height (B)	C	Shank (d)	Overall Length (L)	Replacement Bearing	Tool No.
15/16 (23.81mm)	–	9/64 (3.57mm)	–	–	1/4 (6.35mm)	7/32 (5.56mm)	1/4 (6.35mm)	1-5/8	47706	49532
1-1/4	1/2 (12.70mm)	5/64 (1.98mm)	–	–	3/8 (9.53mm)	3/8 (9.53mm)	1/2 (12.70mm)	1-7/8	47706	49530
1-1/4	–	7/32 (5.56mm)	9/64 (3.57mm)	–	7/16 (11.11mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-25/64	47706	49534
1-3/4	1/2 (12.70mm)	7/64 (2.78mm)	17/32 (13.49mm)	3/32 (2.38mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	47706	49536
1-3/4	1/2 (12.70mm)	1/8 (3.18mm)	31/64 (12.30mm)	–	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	47706	49537
1-3/4	1/2 (12.70mm)	1/4 (6.35mm)	17/64 (6.75mm)	–	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	47706	49538

Weight	0.22 lbs
