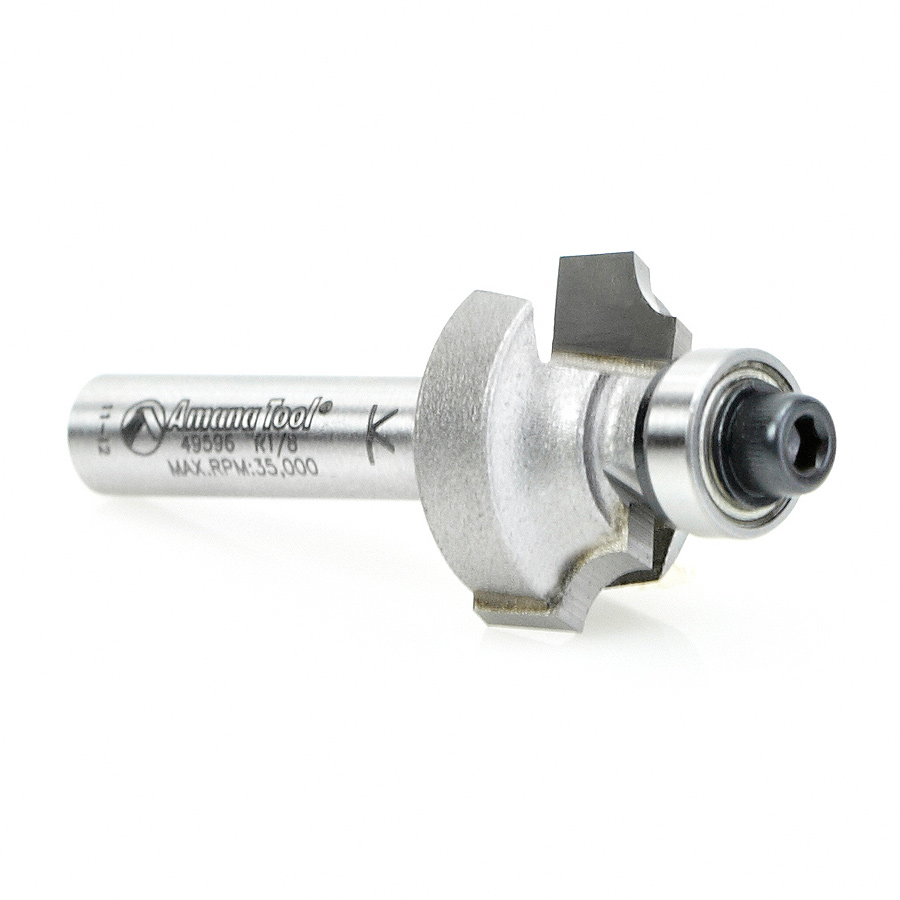

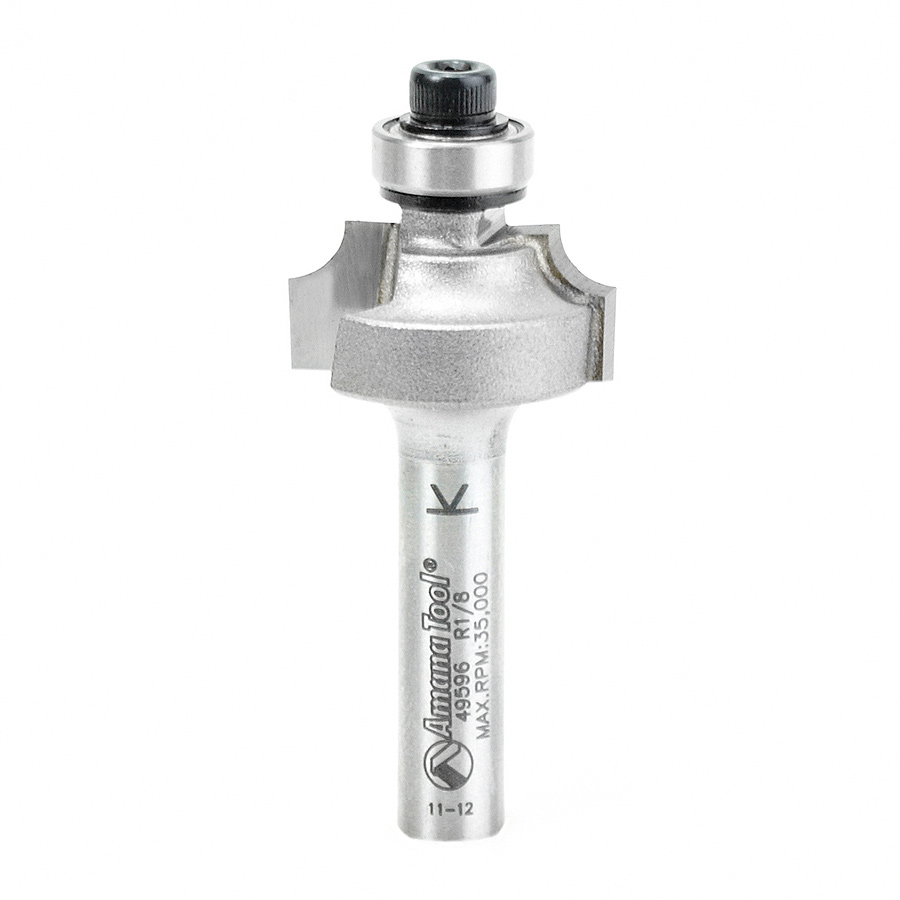

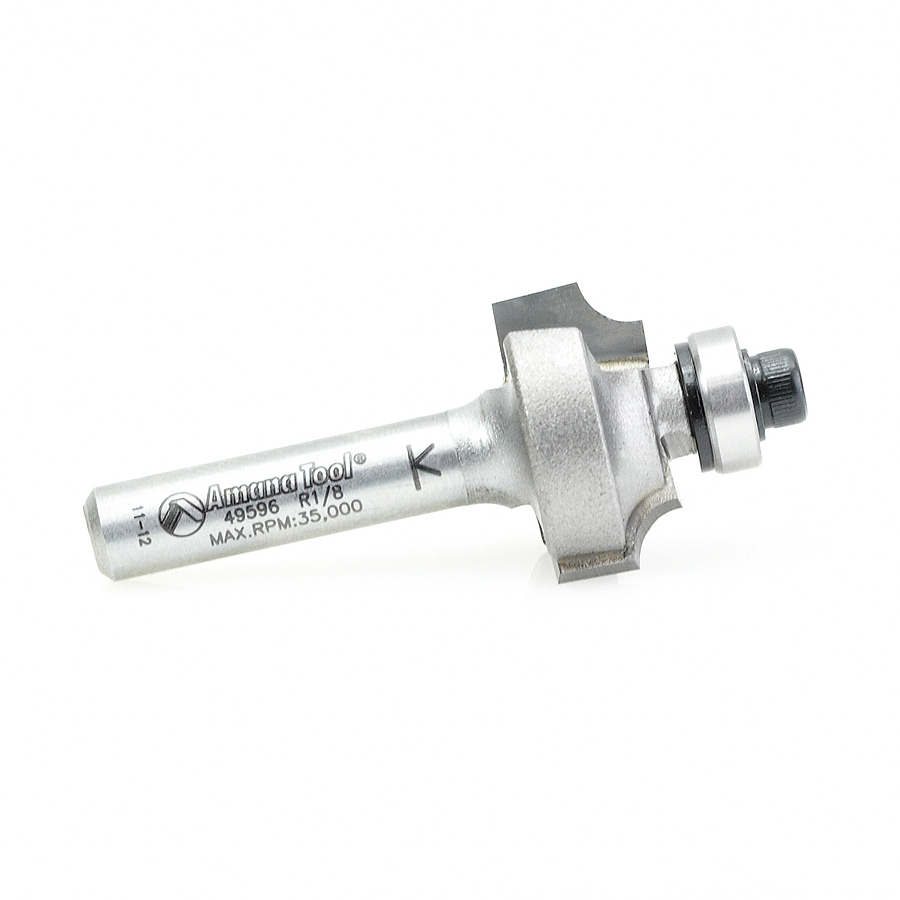

49596 Carbide Tipped Beading 1/8 Radius x 3/4 Dia x 3/8 x 1/4 Inch Shank

Amana 49596 Carbide Tipped Beading 1/8 Radius x 3/4 Dia x 3/8 x 1/4 Inch Shank

Name: Amana 49596 Carbide Tipped Beading 1/8 Radius x 3/4 Dia x 3/8 x 1/4 Inch Shank
SKU: Amana 49596
Availability: InStock

Original price was: $44.95.Current price is: $33.72.

BEADING BIT 1/8 RAD 1/4 SHK

UPC: 738685895962 SKU: Amana 49596 Categories: Amana Tool, Beading Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49596	47702	67096	67101	67202

Specifications

Diameter (D)	3/4
D1	3/8
Radius (R)	1/8
Cutting Height (B)	3/8
Shank (d)	1/4
Overall Length (L)	2
Replacement Bearing	47702
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
3/4 (19.05mm)	3/8 (9.53mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	2	47702	49598
7/8 (22.23mm)	3/8 (9.53mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	49600
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	49604
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47702	49606
1-1/8	3/8 (9.53mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	47702	49608
1-1/8	3/8 (9.53mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47702	49610

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
