Sale!

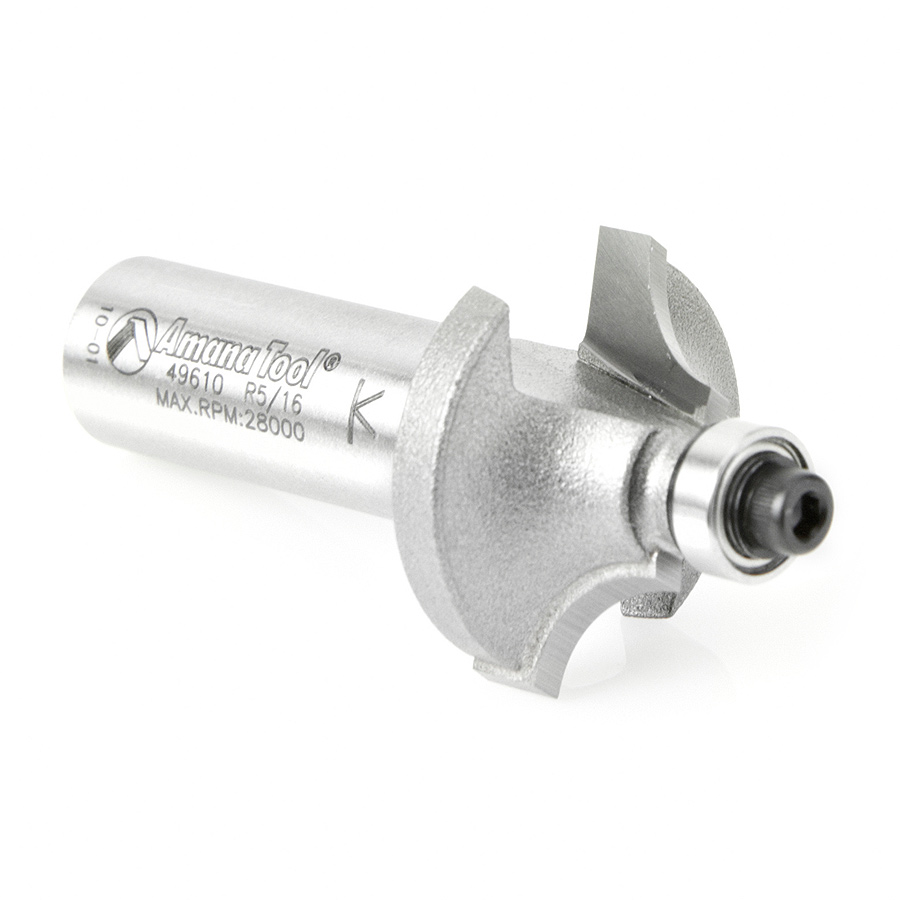

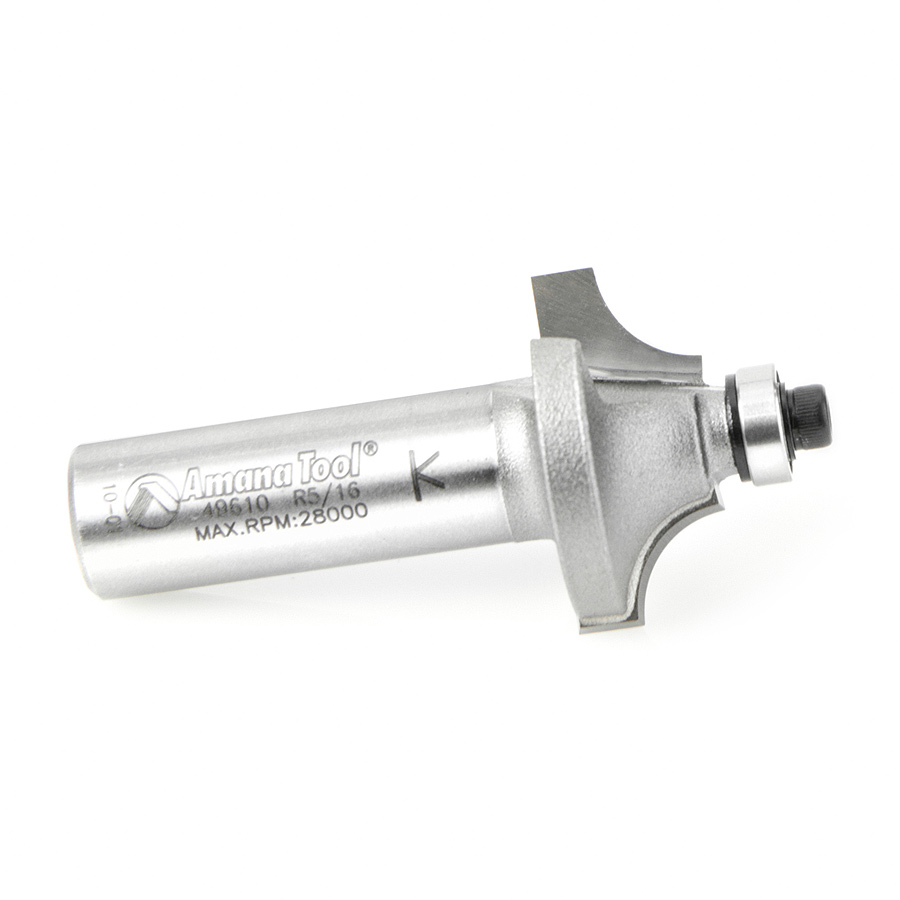

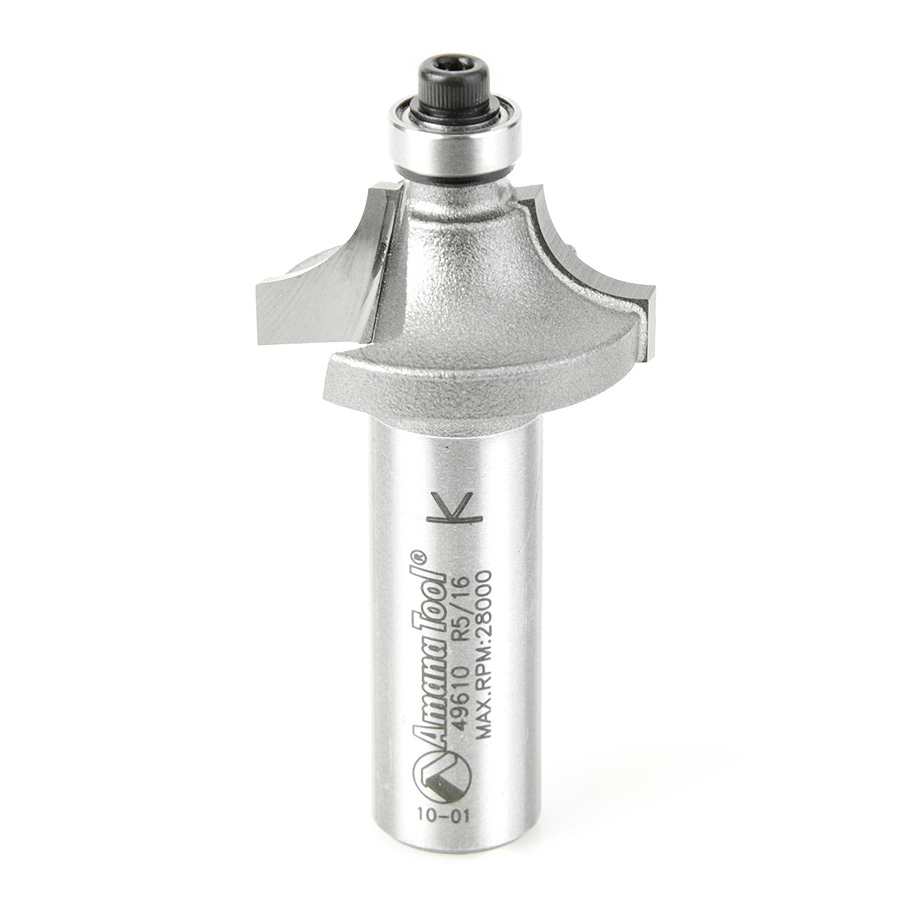

Amana 49610 Carbide Tipped Beading 5/16 Radius x 1-1/8 Dia x 1/2 x 1/2 Inch Shank
Original price was: $47.85.$35.89Current price is: $35.89.
BEADING BIT 5/16 RAD 1/2 SHK
Item Description
Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).
Replacement Parts
| Tool No. | Bearing(s) | Screw | Dust Shield | Flat Washer |
|---|---|---|---|---|
| 49610 | 47702 | 67096 | 67101 | 67202 |

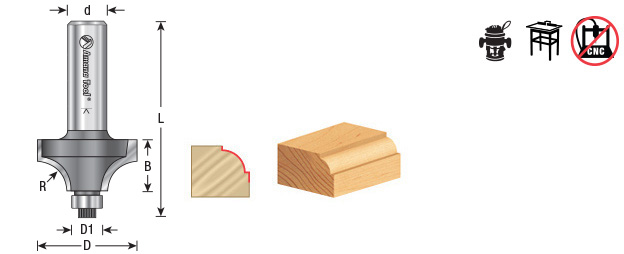

Specifications
| Diameter (D) | 1-1/8 |
|---|---|
| D1 | 3/8 |
| Radius (R) | 5/16 |
| Cutting Height (B) | 1/2 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-7/16 |
| Replacement Bearing | 47702 |
| Flutes | 2 |
Other Sizes Available
| Diameter (D) | D1 | Radius (R) | Cutting Height (B) | Shank (d) | Overall Length (L) | Flutes | Replacement Bearing | Tool No. |
|---|---|---|---|---|---|---|---|---|
| 5/8 (15.88mm) | 3/8 (9.53mm) | 1/16 (1.59mm) | 5/16 (7.94mm) | 1/4 (6.35mm) | 1-3/4 | 2 | 47702 | 49592 |
| 3/4 (19.05mm) | 3/8 (9.53mm) | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47702 | 49596 |
| 3/4 (19.05mm) | 3/8 (9.53mm) | 1/8 (3.18mm) | 3/8 (9.53mm) | 1/2 (12.70mm) | 2-5/16 | 2 | 47702 | 49598 |
| 7/8 (22.23mm) | 3/8 (9.53mm) | 3/16 (4.76mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47702 | 49600 |
| 1 (25.40mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 47702 | 49604 |
| 1 (25.40mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-7/16 | 2 | 47702 | 49606 |
| 1-1/8 | 3/8 (9.53mm) | 5/16 (7.94mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/16 | 2 | 47702 | 49608 |
| 1-1/4 | 3/8 (9.53mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-3/16 | 2 | 47702 | 49612 |
| 1-1/4 | 3/8 (9.53mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-9/16 | 2 | 47702 | 49614 |
| 1-3/4 | 3/8 (9.53mm) | 5/8 (15.88mm) | 7/8 (22.23mm) | 1/2 (12.70mm) | 2-3/4 | 2 | 47702 | 49619 |
| 1-1/2 | 3/8 (9.53mm) | 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 2 | 47702 | 49616 |
| 1-1/2 | 3/8 (9.53mm) | 1/2 (12.70mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-5/8 | 2 | 47702 | 49618 |
| 2-1/2 | 3/8 (9.53mm) | 1 (25.40mm) | 1-1/4 | 1/2 (12.70mm) | 3-3/16 | 2 | 47702 | 49622 |
| Weight | 0.15 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
