Sale!

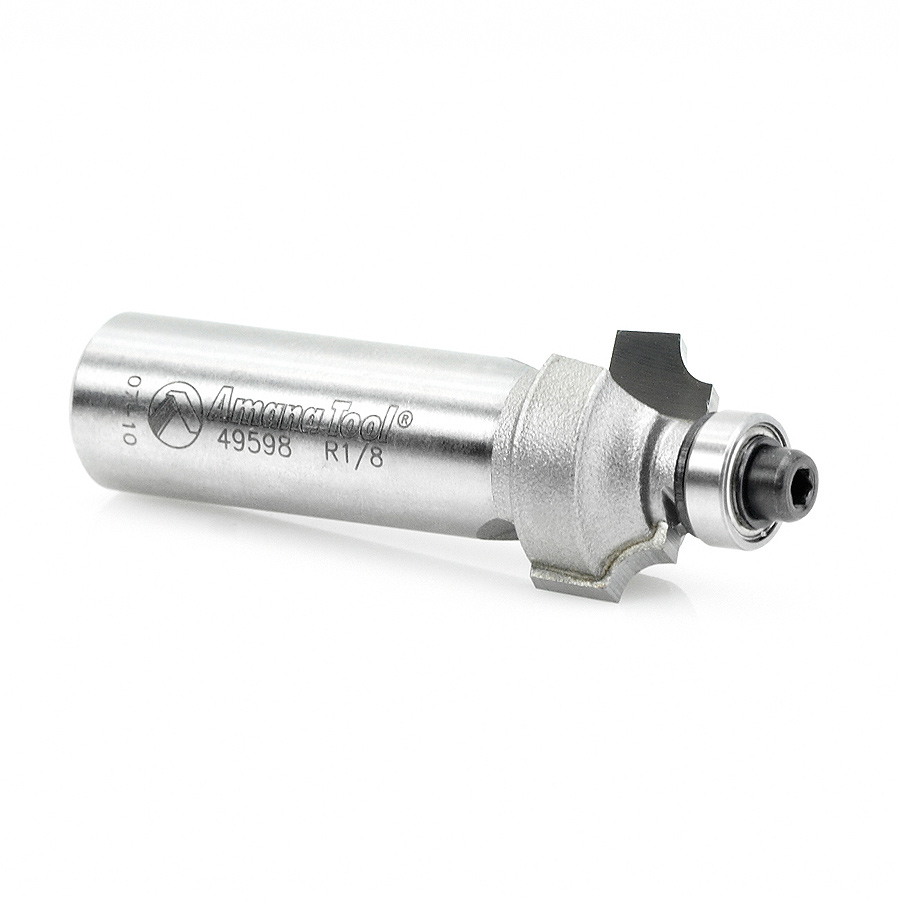

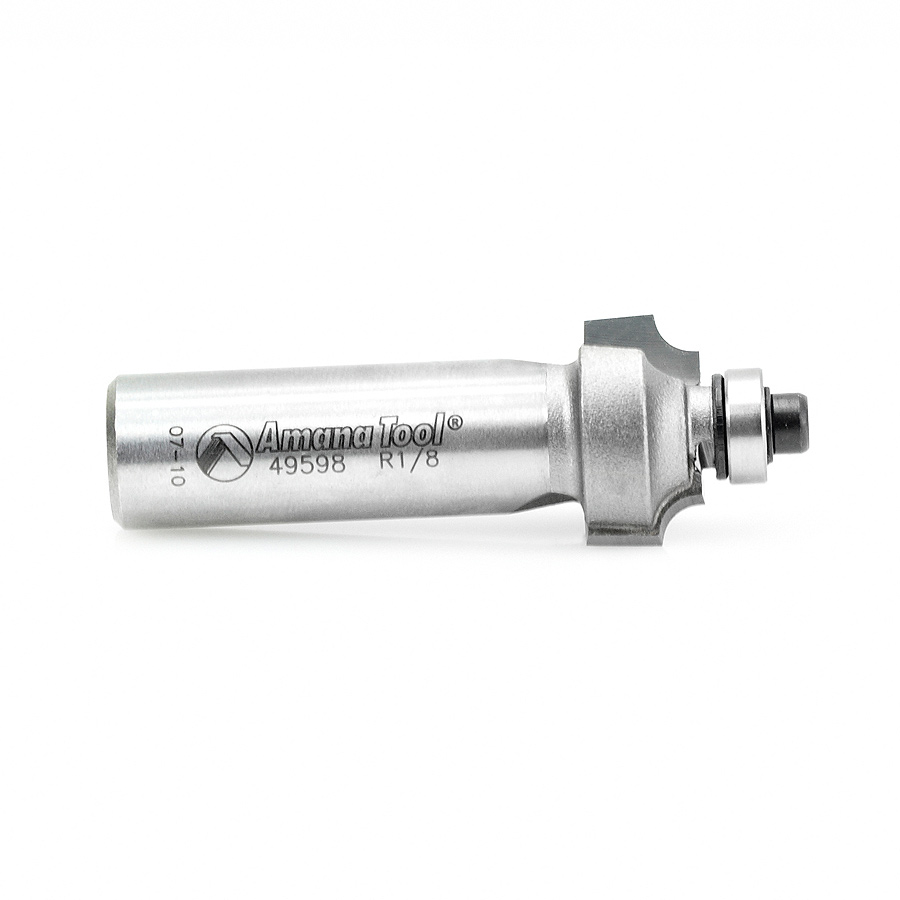

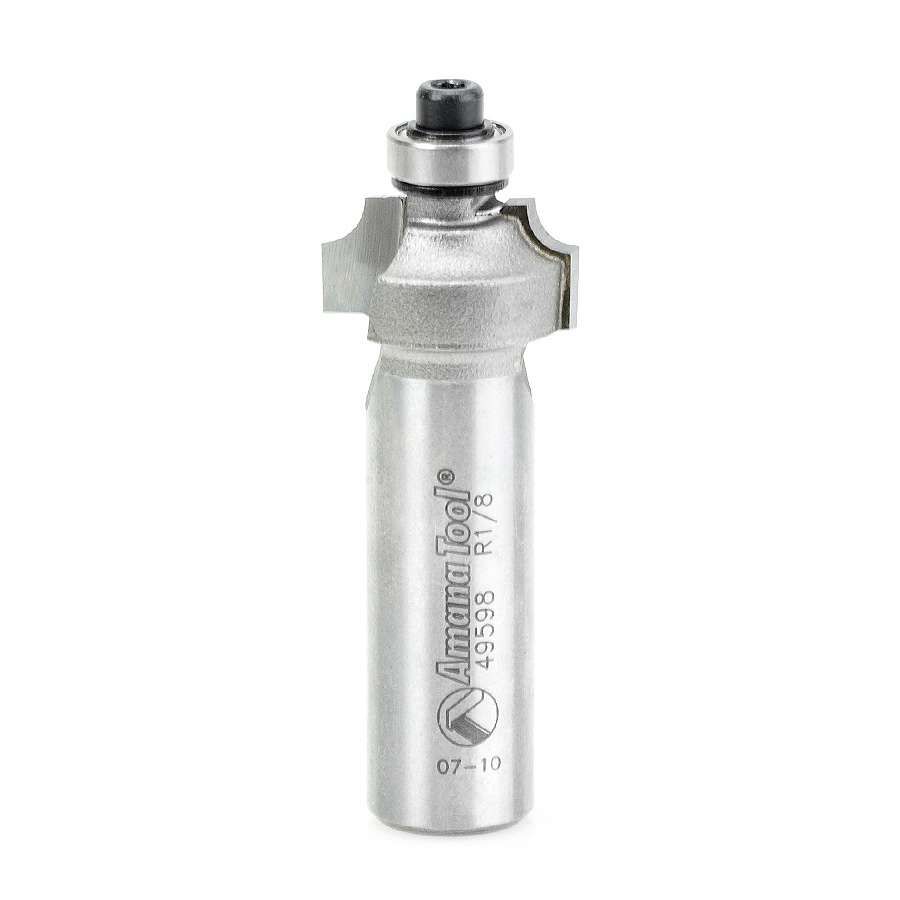

49598 Carbide Tipped Beading 1/8 Radius x 3/4 Dia x 3/8 x 1/2 Inch Shank

Amana 49598 Carbide Tipped Beading 1/8 Radius x 3/4 Dia x 3/8 x 1/2 Inch Shank

Name: Amana 49598 Carbide Tipped Beading 1/8 Radius x 3/4 Dia x 3/8 x 1/2 Inch Shank
SKU: Amana 49598
Availability: InStock

Original price was: $44.95.Current price is: $33.72.

BEADING BIT 1/8 RAD 1/2 SHK

UPC: 738685895986 SKU: Amana 49598 Categories: Amana Tool, Beading Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49598	47702	67096	67101	67202

Specifications

Diameter (D)	3/4
D1	3/8
Radius (R)	1/8
Cutting Height (B)	3/8
Shank (d)	1/2
Overall Length (L)	2-5/16
Replacement Bearing	47702
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
5/8 (15.88mm)	3/8 (9.53mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	2	47702	49592
3/4 (19.05mm)	3/8 (9.53mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	49596
7/8 (22.23mm)	3/8 (9.53mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	49600
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	49604
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47702	49606
1-1/8	3/8 (9.53mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	47702	49608
1-1/8	3/8 (9.53mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47702	49610
1-1/4	3/8 (9.53mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	47702	49612
1-1/4	3/8 (9.53mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	47702	49614
1-3/4	3/8 (9.53mm)	5/8 (15.88mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	2	47702	49619
1-1/2	3/8 (9.53mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	47702	49616
1-1/2	3/8 (9.53mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	2	47702	49618
2-1/2	3/8 (9.53mm)	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3-3/16	2	47702	49622

Weight	0.15 lbs
