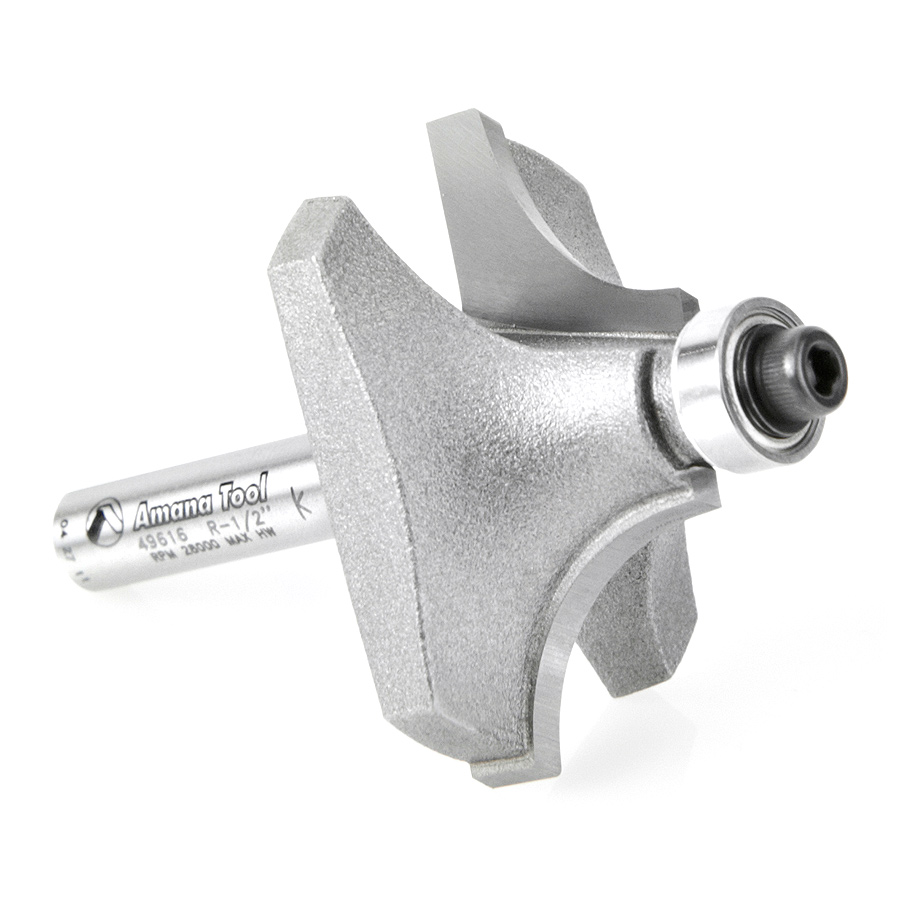

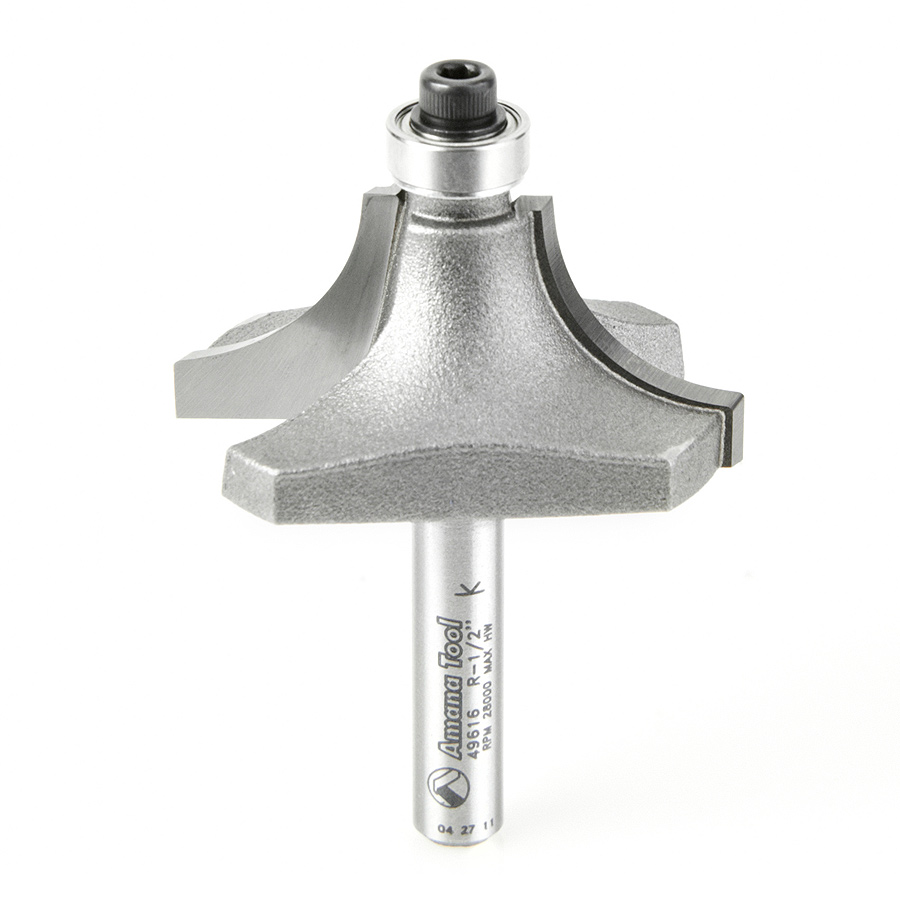

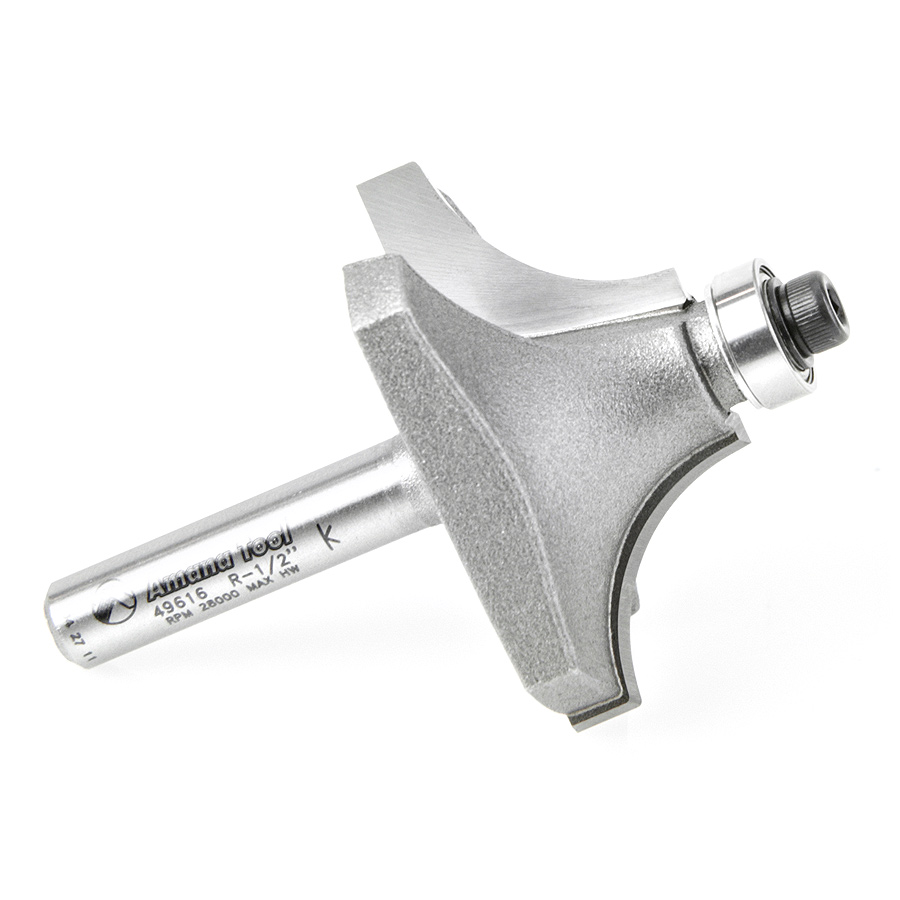

49616 Carbide Tipped Beading 1/2 Radius x 1-1/2 Dia x 3/4 x 1/4 Inch Shank

Amana 49616 Carbide Tipped Beading 1/2 Radius x 1-1/2 Dia x 3/4 x 1/4 Inch Shank

Name: Amana 49616 Carbide Tipped Beading 1/2 Radius x 1-1/2 Dia x 3/4 x 1/4 Inch Shank
SKU: Amana 49616
Availability: InStock

Original price was: $62.90.Current price is: $47.18.

BEADING BIT 1/2 RAD 1/4 SHANK

UPC: 738685896167 SKU: Amana 49616 Categories: Amana Tool, Beading Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49616	47702	67096	67101	67202

Specifications

Diameter (D)	1-1/2
D1	3/8
Radius (R)	1/2
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-1/4
Replacement Bearing	47702
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
5/8 (15.88mm)	3/8 (9.53mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/4 (6.35mm)	1-3/4	2	47702	49592
3/4 (19.05mm)	3/8 (9.53mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	49596
3/4 (19.05mm)	3/8 (9.53mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/2 (12.70mm)	2-5/16	2	47702	49598
7/8 (22.23mm)	3/8 (9.53mm)	3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	49600
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47702	49604
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47702	49606
1-1/8	3/8 (9.53mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	2	47702	49608
1-1/8	3/8 (9.53mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-7/16	2	47702	49610
1-1/4	3/8 (9.53mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	47702	49612
1-1/4	3/8 (9.53mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-9/16	2	47702	49614
1-3/4	3/8 (9.53mm)	5/8 (15.88mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	2	47702	49619
1-1/2	3/8 (9.53mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	2	47702	49618
2-1/2	3/8 (9.53mm)	1 (25.40mm)	1-1/4	1/2 (12.70mm)	3-3/16	2	47702	49622

Weight	0.16 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
