Sale!

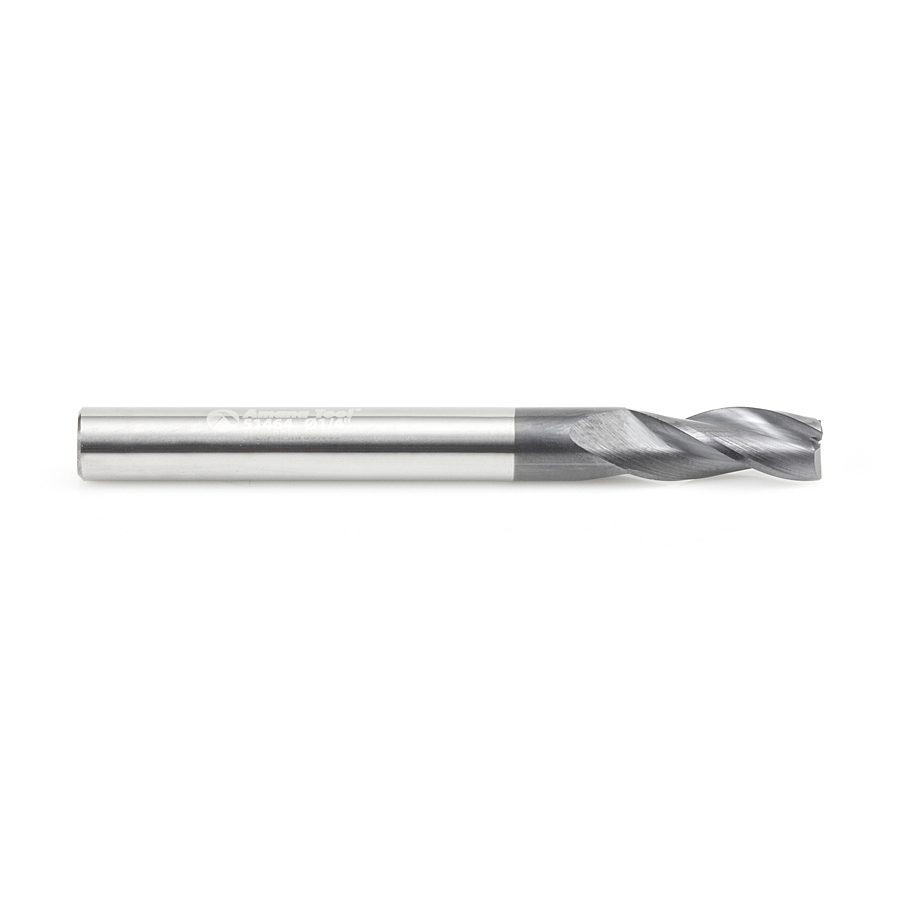

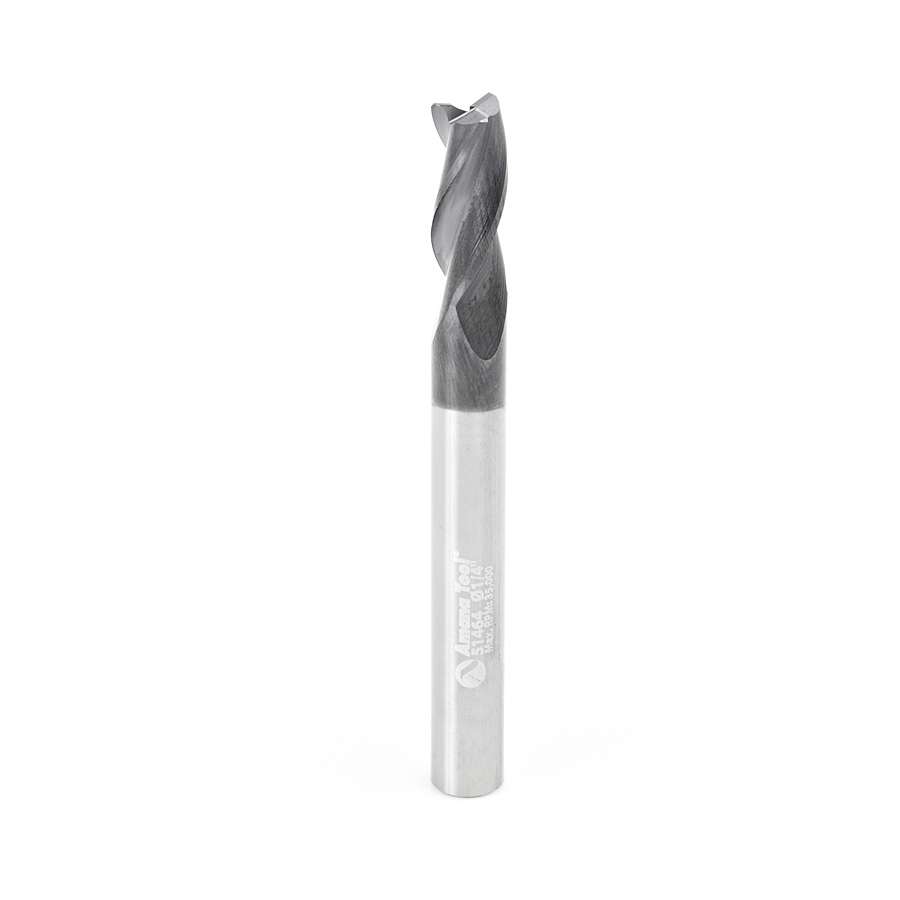

Amana 51464 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/4 Dia x 5/8 x 1/4 Shank x 2-3/8″ Long Up-Cut Router Bit / 45º Corner Chamfer End Mill

Name: Amana 51464 CNC Solid Carbide Spiral for Steel &amp; Stainless Steel with AlTiN Coating 3-Flute x 1/4 Dia x 5/8 x 1/4 Shank x 2-3/8" Long Up-Cut Router Bit / 45º Corner Chamfer End Mill
SKU: Amana 51464
Price: 46.65 USD
Availability: InStock

Original price was: $62.20.Current price is: $46.65.

Amana 51464 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/4 Dia x 5/8 x 1/4 Shank x 2-3/8 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill

Specifications

(D) Diameter	1/4
(B) Cutting Height	5/8
(d) Shank	1/4
Overall Length (L)	2-3/8
Max RPM	28,000
Flutes	3

UPC: 738685514641 SKU: Amana 51464 Categories: CNC Router Bits, Steel Cutting

These router bits are manufactured from our exclusive ultra-fine micrograin carbide and feature a 30 degree Center Cutting Mill End with a 45 degree corner chamfer (for extra strength) up cut design and very importantly Aluminum Titanium Nitride (AlTiN) coating for superior cut quality.

Increase the ruggedness of your solid carbide end mill’s number one major wear point by the addition of corner chamfers that enhance the edge strength.

Excellent for cutting:

Stainless Steel
Steel
Cast Iron
Composites
Low Carbon Steel
Magnesium
Metal Composite Material (MCM)
Plastics
Super Alloys
Titanium (up to 40HRc Hardness)

These bits are perfect for the signmaking industry. Our special carbide grade combined with the AlTiN coating gives amazing performance. The unique corner chamfer gives the bits great strength.

AlTiN coating has many benefits:

Extra wear resistance
Allows for faster feed and speed rates
Cutting edge protected from wear
Better chip evacuation
Less heat build up
Superior cutting quality and extended tool life

WARNING: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

Note: For optimal results and extended tool life use mist lubricant system or air cooling.

Vectric and Fusion 360 compatible tool files for 51464 available for download, click here.

Weight	0.08 lbs
