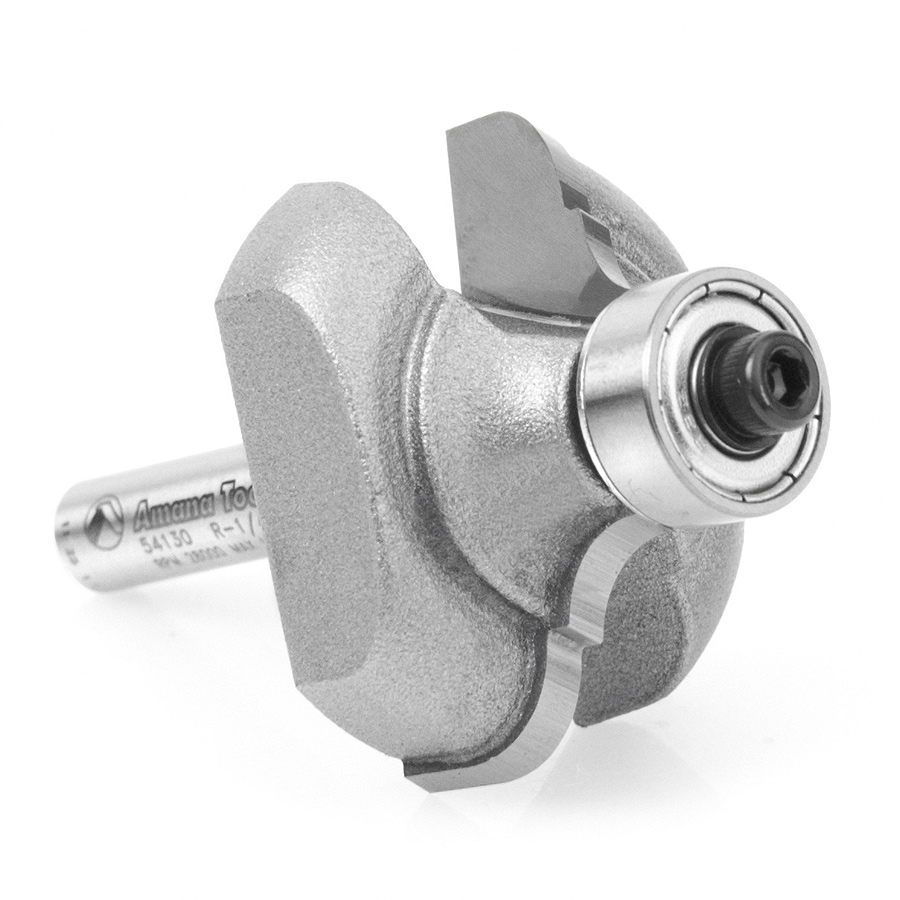

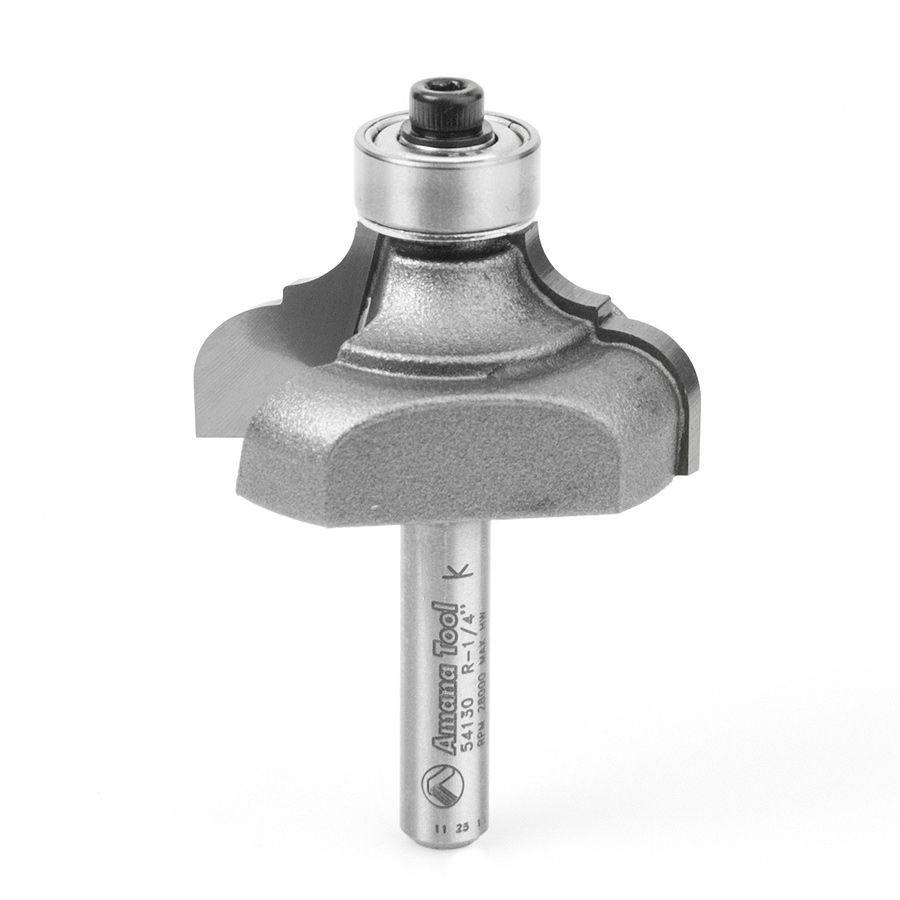

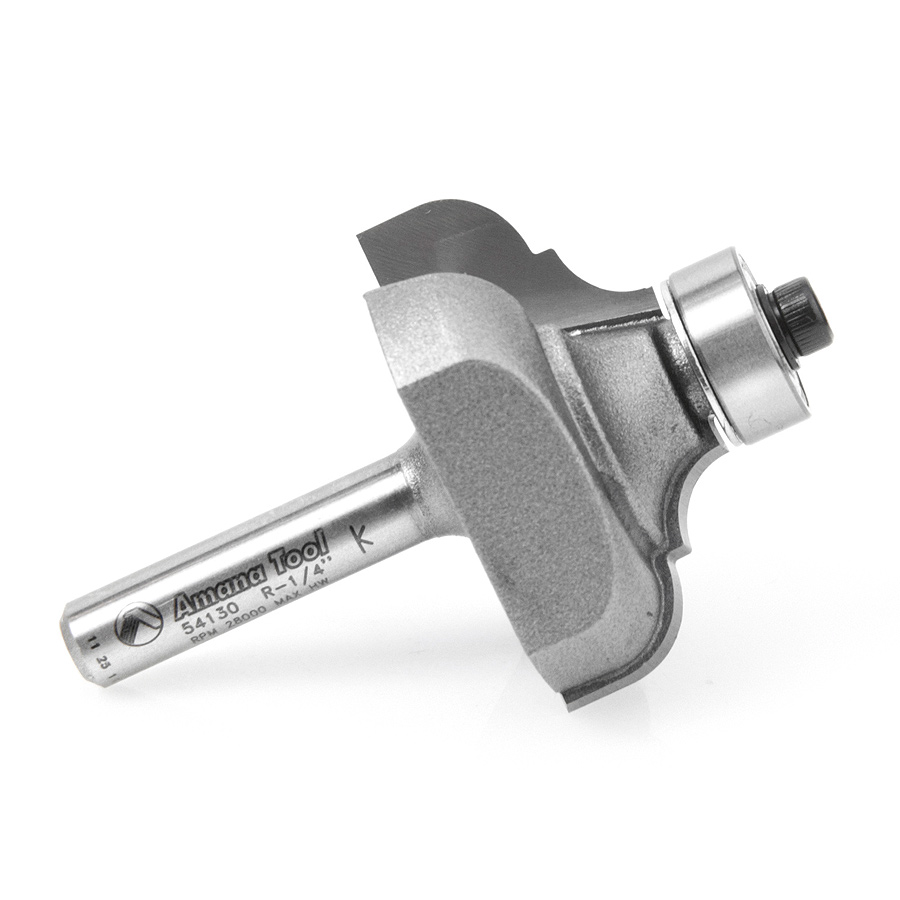

54130 Carbide Tipped Classical Cove & Bead 1/4 x 3/16 Radius x 1-3/8 Dia x 11/16 x 1/4 Inch Shank

Amana 54130 Carbide Tipped Classical Cove & Bead 1/4 x 3/16 Radius x 1-3/8 Dia x 11/16 x 1/4 Inch Shank

Name: Amana 54130 Carbide Tipped Classical Cove &amp; Bead 1/4 x 3/16 Radius x 1-3/8 Dia x 11/16 x 1/4 Inch Shank
SKU: Amana 54130
Availability: InStock

Original price was: $76.85.Current price is: $57.64.

CLASSICAL COVE &BEAD 1/4 SHANK

UPC: 738685941300 SKU: Amana 54130 Categories: Amana Tool, Classical Cove & Bead Router Bits, Profiling Router Bits, Router Bits

Item Description

The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8″ pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.

Replacement Parts

Bearing(s)	Optional 3/8 Bearing	Screw	Dust Shield	Flat Washer
47706	47702	67096	67098	67202

Specifications

Diameter (D)	1-3/8
Radius (R)	1/4
Cutting Height (B)	11/16
Shank (d)	1/4
Overall Length (L)	2-3/16
R1	3/16
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	R1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1-1/8	5/32 (3.97mm)	5/32 (3.97mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	54128
1-1/8	5/32 (3.97mm)	5/32 (3.97mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	54132
1-3/8	1/4 (6.35mm)	3/16 (4.76mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-9/16	54134
2 (50.80mm)	3/8 (9.53mm)	3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	54135
1-1/4	13/64 (5.16mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	54102
1-1/4	13/64 (5.16mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	54104
1-1/2	7/32 (5.56mm)	15/64 (5.95mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	54106
1-1/2	3/16 (4.76mm)	5/16 (7.94mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	54292

Weight	0.14 lbs
