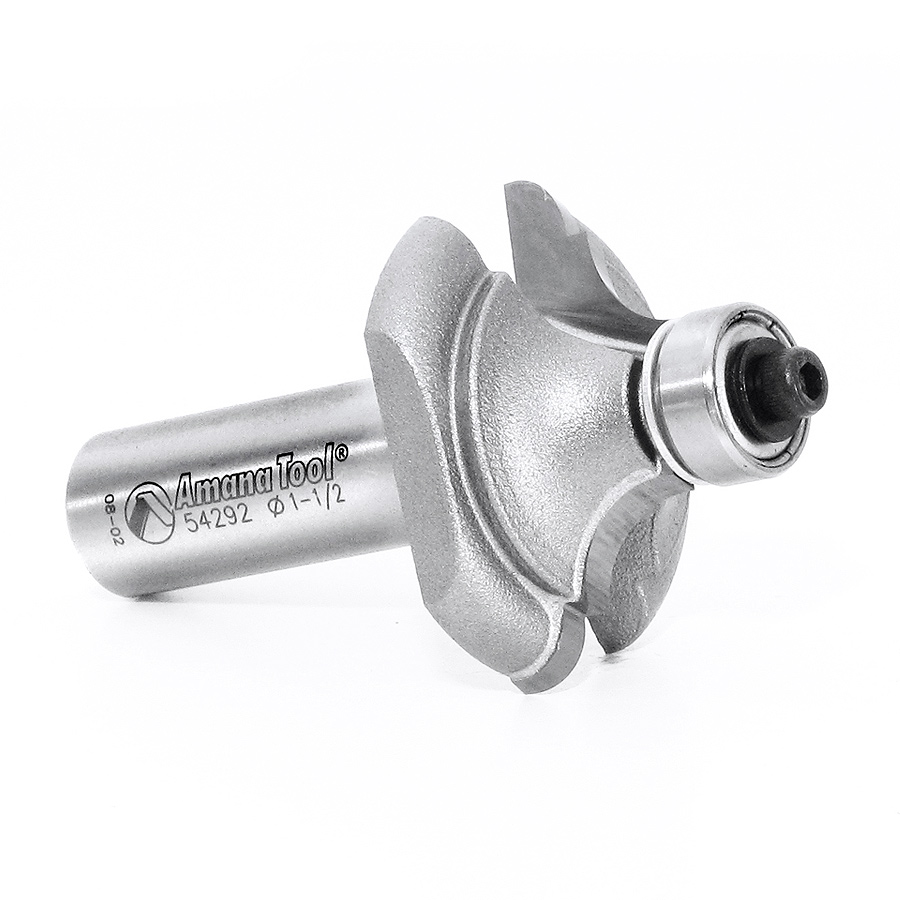

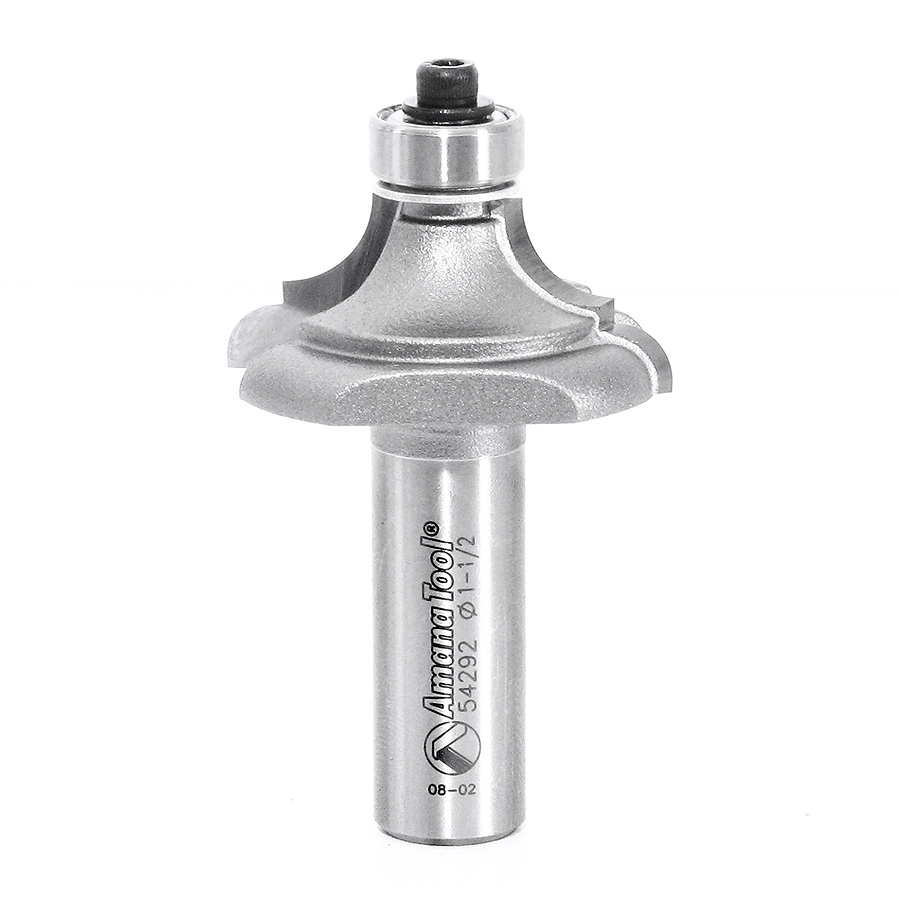

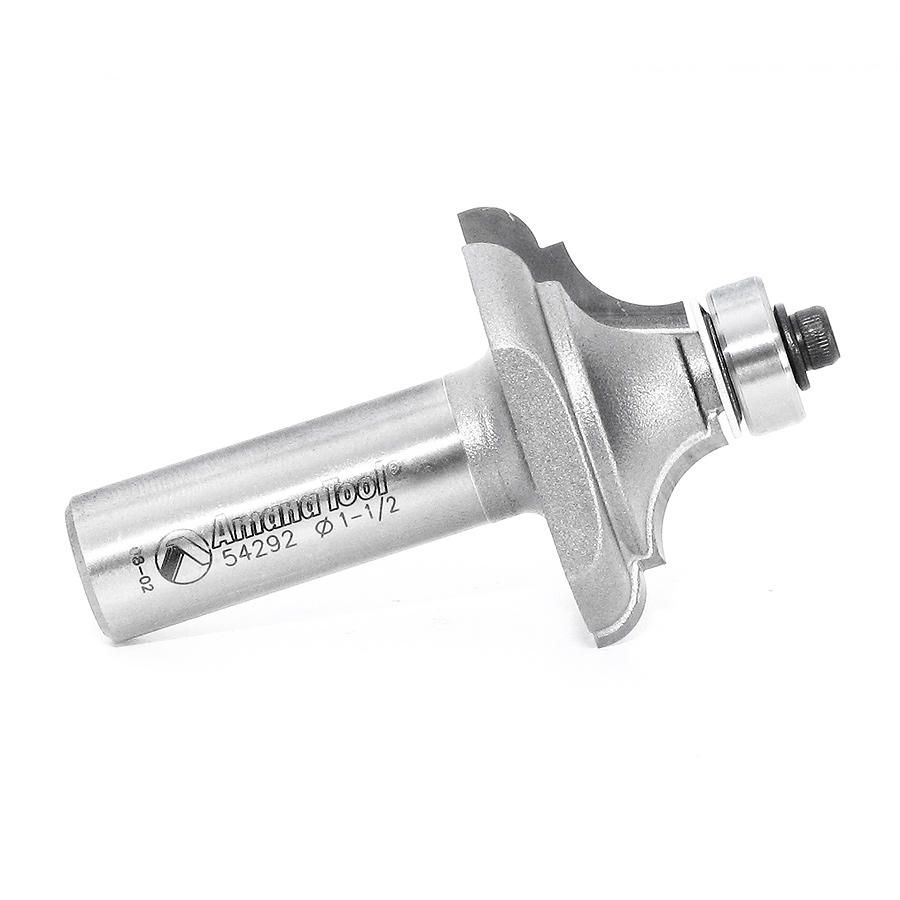

54292 Carbide Tipped Classical Cove & Bead 3/16 x 5/16 Radius x 1-1/2 Dia x 5/8 x 1/2 Inch Shank

Amana 54292 Carbide Tipped Classical Cove & Bead 3/16 x 5/16 Radius x 1-1/2 Dia x 5/8 x 1/2 Inch Shank

Name: Amana 54292 Carbide Tipped Classical Cove &amp; Bead 3/16 x 5/16 Radius x 1-1/2 Dia x 5/8 x 1/2 Inch Shank
SKU: Amana 54292
Availability: InStock

Original price was: $96.10.Current price is: $72.08.

EDGE FORMING BIT 1/2 SHANK

UPC: 738685942925 SKU: Amana 54292 Categories: Amana Tool, Classical Cove & Bead Router Bits, Profiling Router Bits, Router Bits

Item Description

The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8″ pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.

Replacement Parts

Bearing(s)	Optional 3/8 Bearing	Screw	Dust Shield	Flat Washer
47706	47702	67096	67098	67202

Specifications

Diameter (D)	1-1/2
Radius (R)	3/16
Cutting Height (B)	5/8
Shank (d)	1/2
Overall Length (L)	2-1/2
R1	5/16
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	R1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1-1/8	5/32 (3.97mm)	5/32 (3.97mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	54128
1-1/8	5/32 (3.97mm)	5/32 (3.97mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	54132
1-3/8	1/4 (6.35mm)	3/16 (4.76mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-3/16	54130
1-3/8	1/4 (6.35mm)	3/16 (4.76mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-9/16	54134
2 (50.80mm)	3/8 (9.53mm)	3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	54135
1-1/4	13/64 (5.16mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	54102
1-1/4	13/64 (5.16mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	54104
1-1/2	7/32 (5.56mm)	15/64 (5.95mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	54106

Weight	0.22 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
