54104 Carbide Tipped Classical Bead & Cove 13/64 x 5/16 Radius x 1-1/4 Dia x 1/2 x 1/2 Inch Shank

Amana 54104 Carbide Tipped Classical Bead & Cove 13/64 x 5/16 Radius x 1-1/4 Dia x 1/2 x 1/2 Inch Shank

Name: Amana 54104 Carbide Tipped Classical Bead &amp; Cove 13/64 x 5/16 Radius x 1-1/4 Dia x 1/2 x 1/2 Inch Shank
SKU: Amana 54104
Availability: InStock

Original price was: $76.85.Current price is: $57.64.

CLASSICAL 1-1/4 DIA. 1/2 SHANK

UPC: 738685941041 SKU: Amana 54104 Categories: Amana Tool, Classical Cove & Bead Router Bits, Profiling Router Bits, Router Bits

Item Description

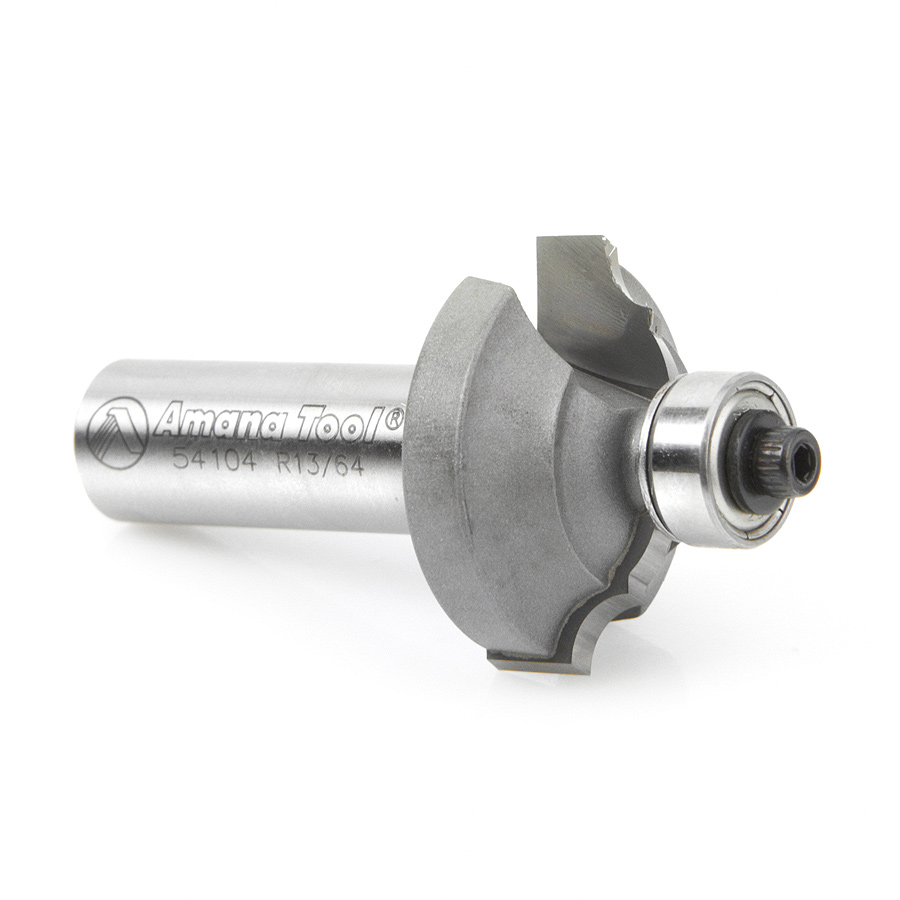

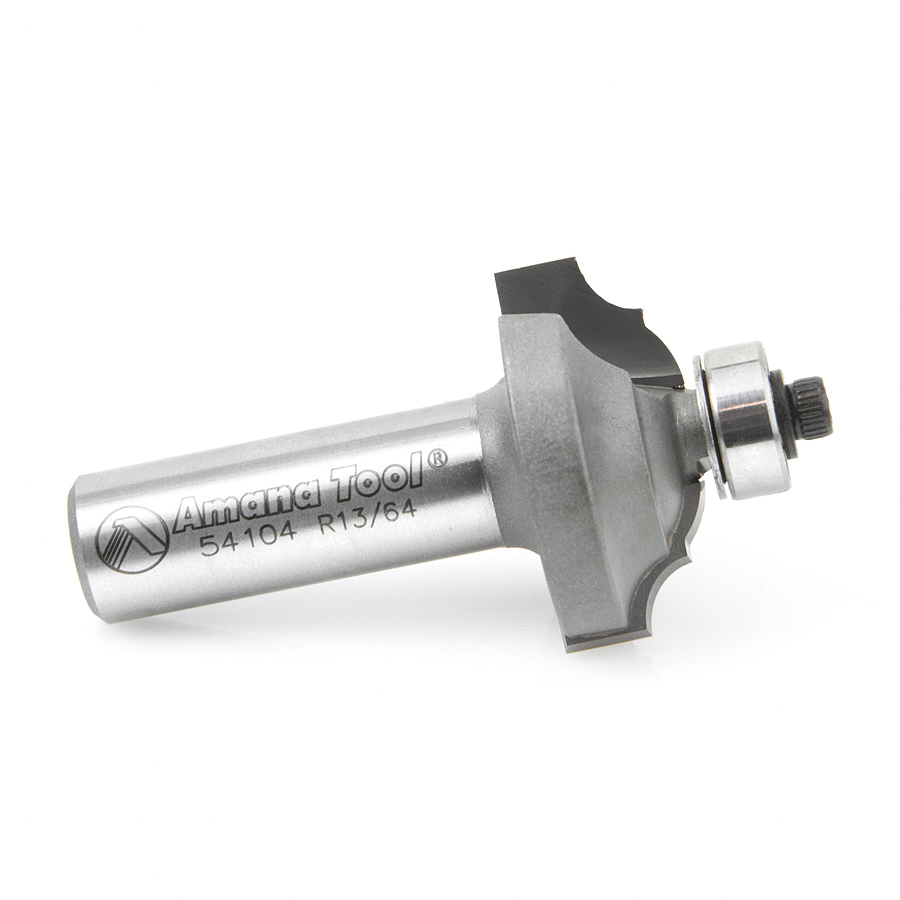

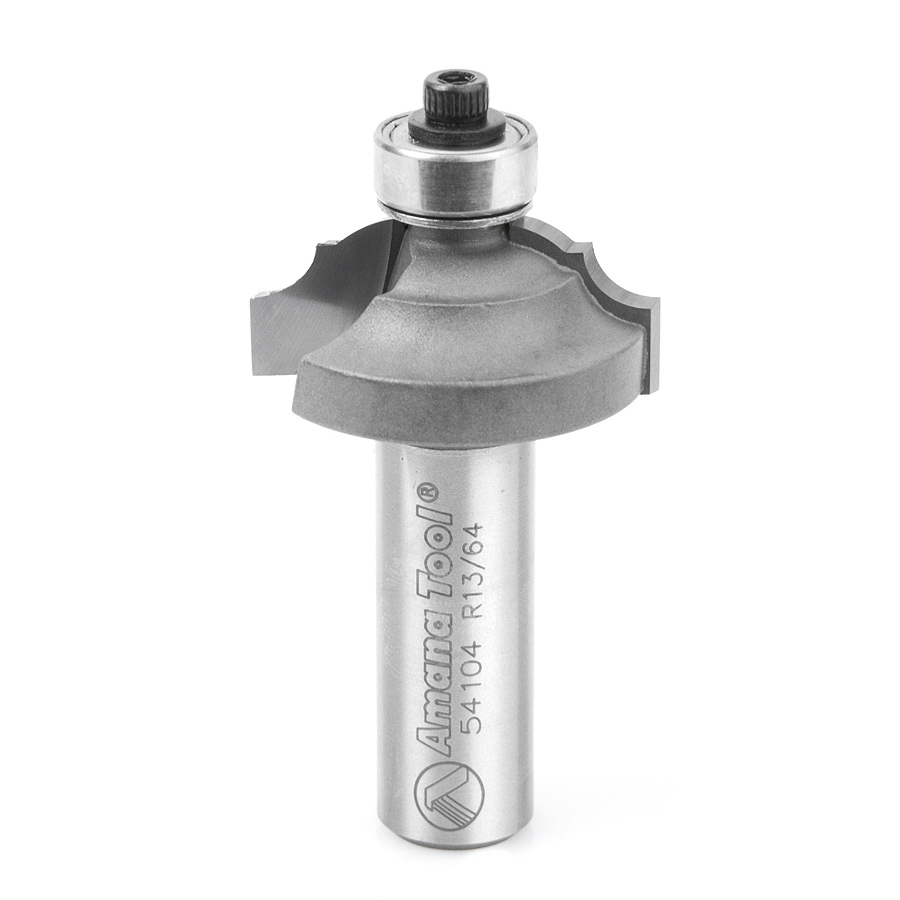

This bead and cove combines the two basic forms, separating them with a fillet. The cove comes off the pilot bearing. Produce a complex profile in a single pass. Use in a handheld or table-mounted router.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
54104	47706	67096	67098	67101

Specifications

Diameter (D)	1-1/4
Radius (R)	13/64
Cutting Height (B)	1/2
Shank (d)	1/2
Overall Length (L)	2-3/8
R1	5/16
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	R1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1-1/8	5/32 (3.97mm)	5/32 (3.97mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	54128
1-1/8	5/32 (3.97mm)	5/32 (3.97mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/8	54132
1-3/8	1/4 (6.35mm)	3/16 (4.76mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-3/16	54130
1-3/8	1/4 (6.35mm)	3/16 (4.76mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-9/16	54134
2 (50.80mm)	3/8 (9.53mm)	3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	54135
1-1/4	13/64 (5.16mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	54102
1-1/2	7/32 (5.56mm)	15/64 (5.95mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/8	54106
1-1/2	3/16 (4.76mm)	5/16 (7.94mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/2	54292

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
