Sale!

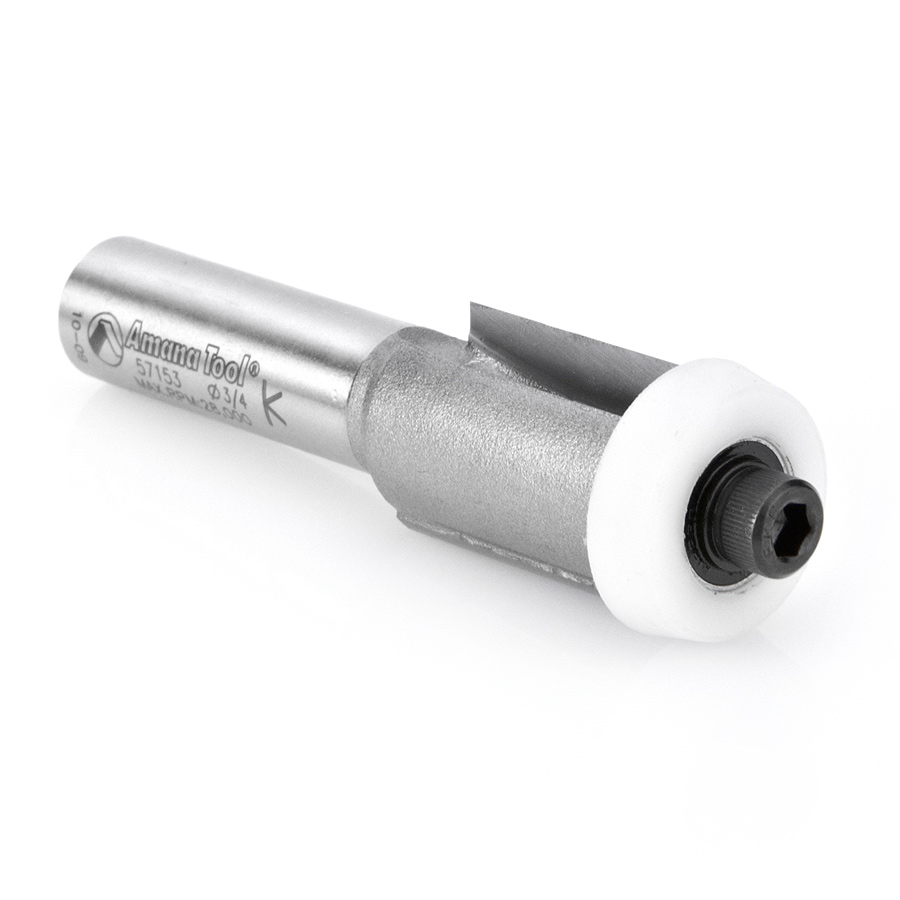

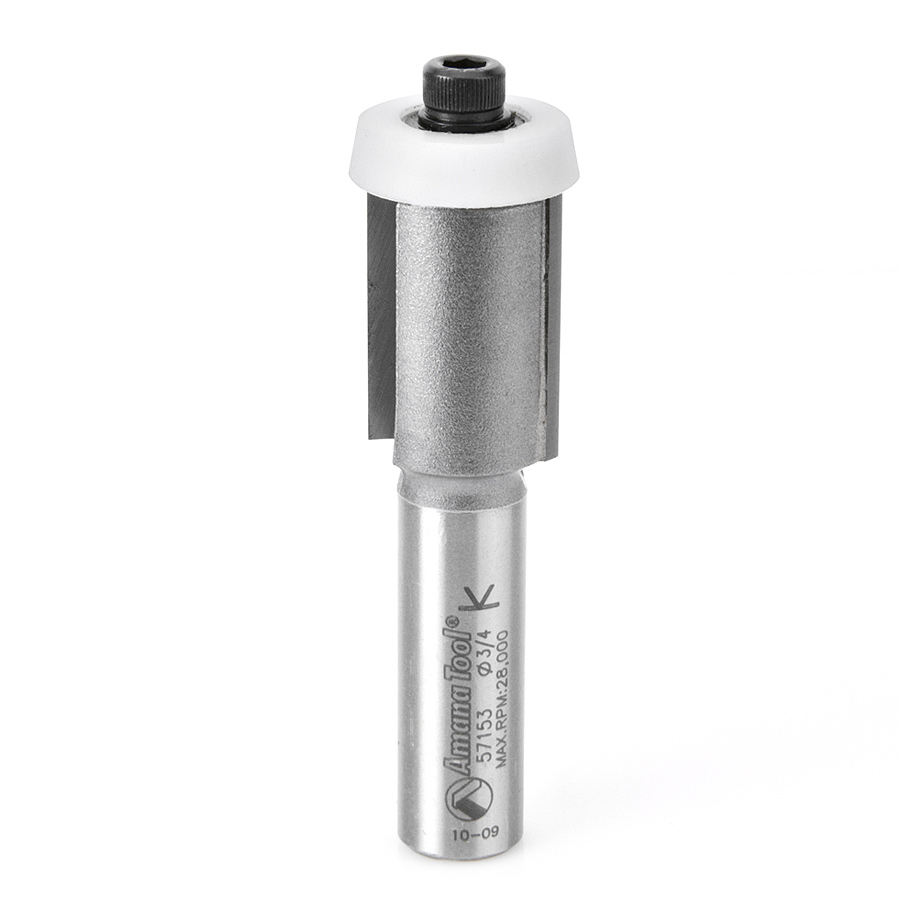

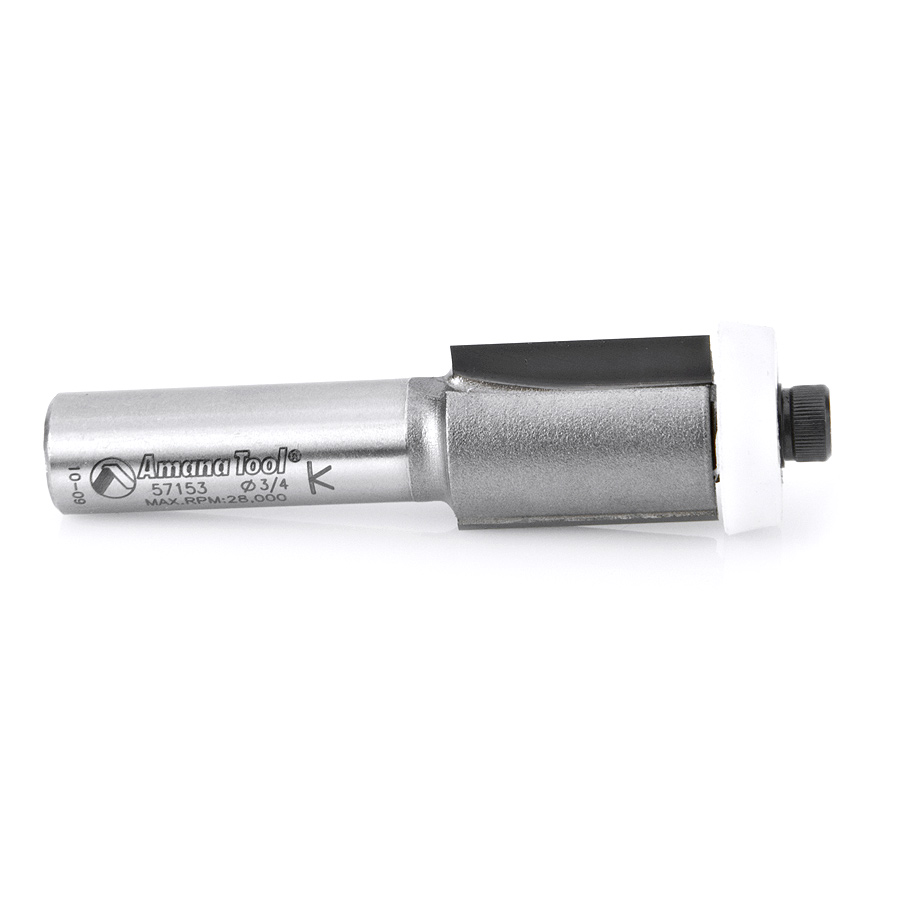

57153 Carbide Tipped Sink and Trim with Ultra-Glide Ball Bearing Guide Solid Surface 3/4 Dia x 1 Inch x 10 Deg x 1/2 Shank

Amana 57153 Carbide Tipped Sink and Trim with Ultra-Glide Ball Bearing Guide Solid Surface 3/4 Dia x 1 Inch x 10 Deg x 1/2 Shank

Name: Amana 57153 Carbide Tipped Sink and Trim with Ultra-Glide Ball Bearing Guide Solid Surface 3/4 Dia x 1 Inch x 10 Deg x 1/2 Shank
SKU: Amana 57153
Availability: InStock

Original price was: $76.85.Current price is: $57.64.

FLUSH TRIM 3/4 DIA OVERHANG

UPC: 738685571538 SKU: Amana 57153 Categories: Amana Tool, Bowl & Sink Trim Router Bits with Ultra-Glide Ball Bearing Guide, Router Bits, Solid Surface Router Bits

Item Description

Trim a sink cutout flush with the bowl in stages using these “over-hang” and flush trim bits in tandem. The overhang bits are equipped with non-marring Ultra-Glide™ bearings that are tapered to match the slope of the bowl’s side. A first pass with the appropriate overhang bit cleans the cutout edge, leaving a very slight overhang at the underside of the counter. A pass with the flush-trim bit completes the operation.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
57153	47726	67109	67103	67101

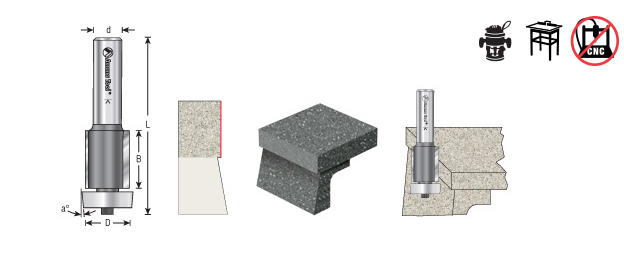

Specifications

Angle (a°)	10°
Diameter (D)	3/4
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	3-1/4
Type	1/16 Over-Hang
Replacement Bearing	47726
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Angle (a°)	Shank (d)	Overall Length (L)	Type	Tool No.
3/4 (19.05mm)	1 (25.40mm)	–	1/2 (12.70mm)	3-1/2	Flush Trim	57154
49/64 (19.45mm)	1-1/2	5°	1/2 (12.70mm)	3-1/2	1/8 Over Hang	57155

Weight	0.24 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
