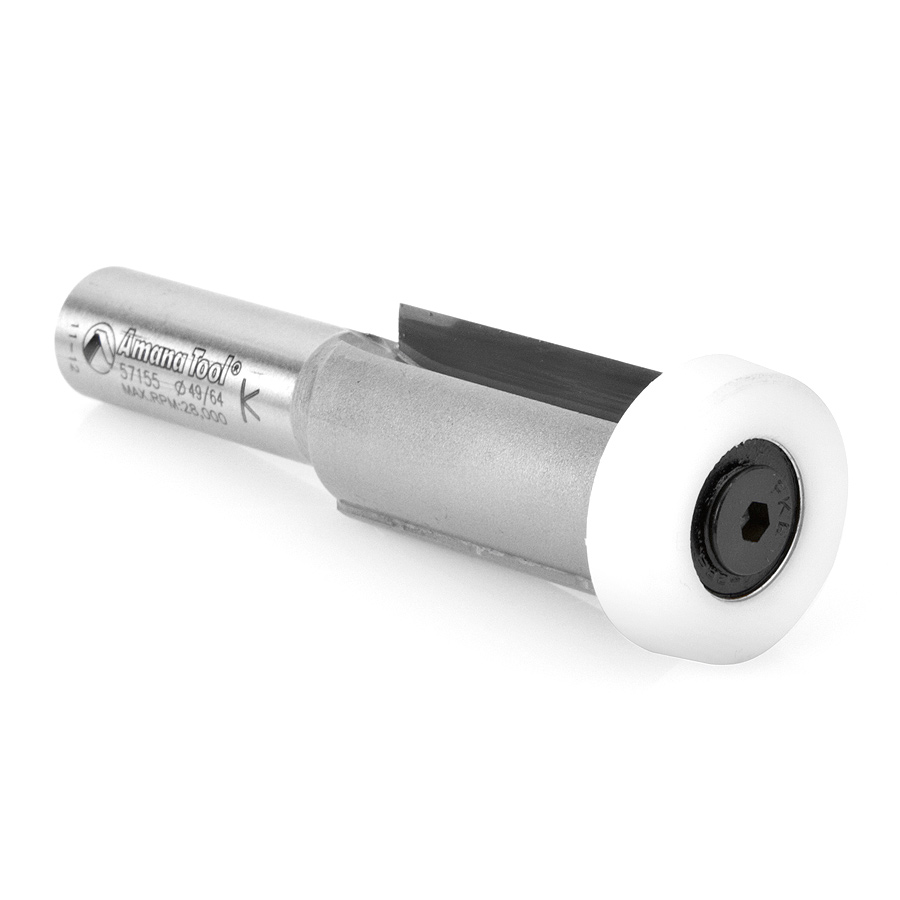

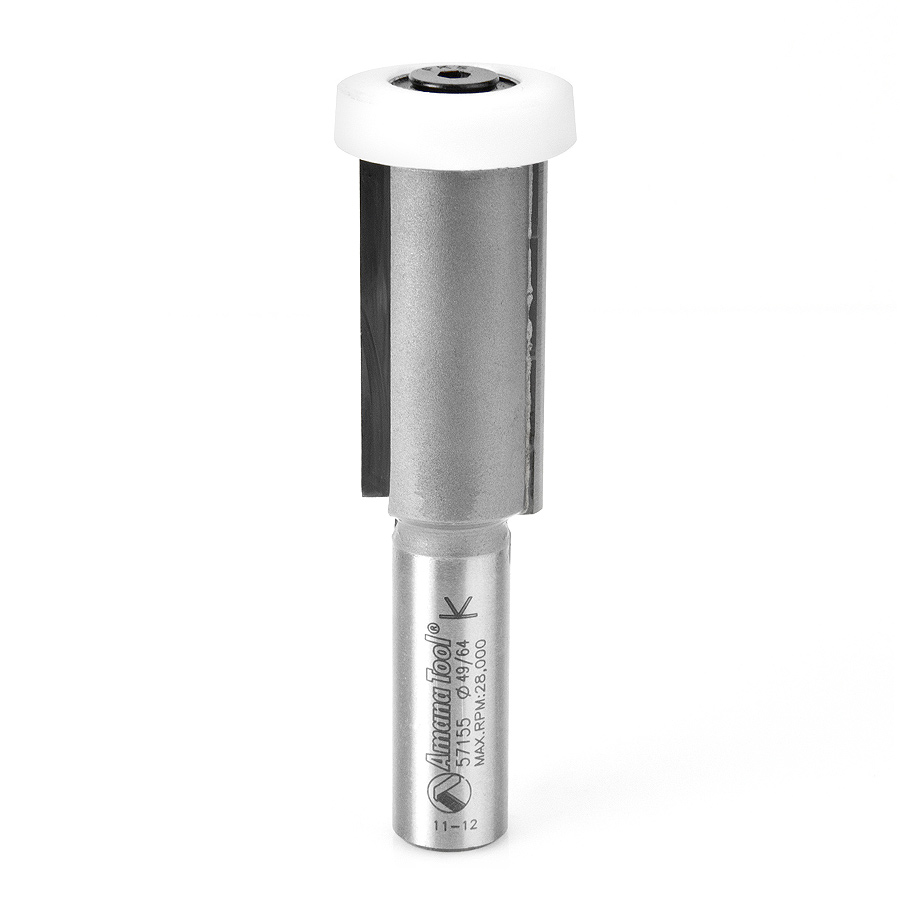

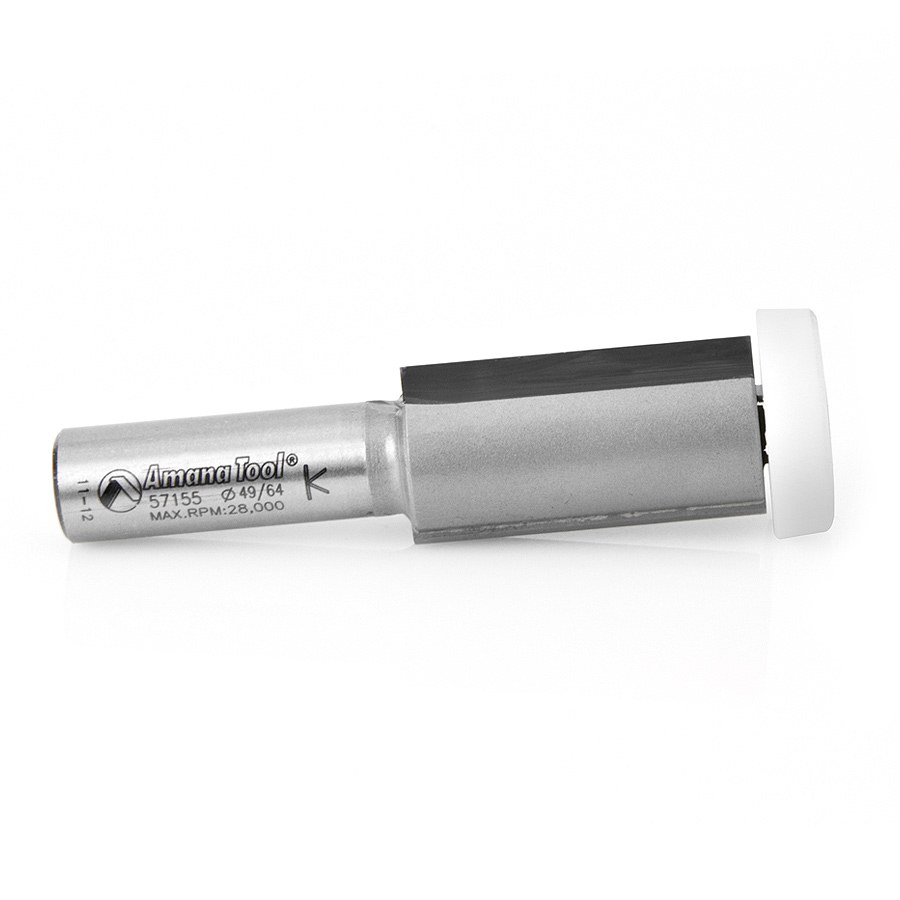

57155 Carbide Tipped Sink and Trim with Ultra-Glide Ball Bearing Guide Solid Surface 49/64 Dia x 1-1/2 x 5 Deg x 1/2 Inch Shank

Amana 57155 Carbide Tipped Sink and Trim with Ultra-Glide Ball Bearing Guide Solid Surface 49/64 Dia x 1-1/2 x 5 Deg x 1/2 Inch Shank

Name: Amana 57155 Carbide Tipped Sink and Trim with Ultra-Glide Ball Bearing Guide Solid Surface 49/64 Dia x 1-1/2 x 5 Deg x 1/2 Inch Shank
SKU: Amana 57155
Availability: InStock

Original price was: $102.45.Current price is: $76.84.

3/4″DIA OVERHANG W/ULTRA GLIDE

UPC: 738685571552 SKU: Amana 57155 Categories: Amana Tool, Bowl & Sink Trim Router Bits with Ultra-Glide Ball Bearing Guide, Router Bits, Solid Surface Router Bits

Item Description

This bit is designed specifically for use for the Karran stainless steel edgesinks for laminate and 1/2″ solid surface materials. They trim the counter-top edge after the bowl is mounted.

Trim a sink cutout flush with the bowl in stages using these “over-hang” and flush trim bits in tandem. The overhang bits are equipped with non-marring Ultra-Glide™ bearings that are tapered to match the slope of the bowl’s side. A first pass with the appropriate overhang bit cleans the cutout edge, leaving a very slight overhang at the underside of the counter. A pass with the flush-trim bit completes the operation.

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
57155	47733	67146	67101

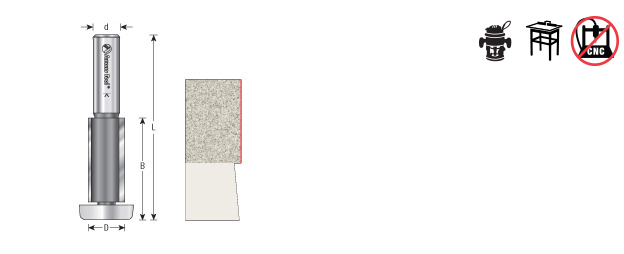

Specifications

Angle (a°)	5°
Diameter (D)	49/64
Cutting Height (B)	1-1/2
Shank (d)	1/2
Overall Length (L)	3-1/2
Type	1/8 Over Hang
Replacement Bearing	47733
Flutes	2
A	1/2 or 3/4

Other Sizes Available

Angle (a°)	Diameter (D)	A	Cutting Height (B)	Shank (d)	Overall Length (L)	Description	Tool No.
10°	3/4 (19.05mm)	–	1 (25.40mm)	1/2 (12.70mm)	3-1/4	1/16	57153
11.5°	1-3/16	1/2	1 (25.40mm)	1/2 (12.70mm)	3-1/8	Bevel	57169
15°	7/8 (22.23mm)	1/2	7/8 (22.23mm)	1/4 (6.35mm)	2-9/16	Bevel	49409
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	45415
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	45415-5
–	3/4 (19.05mm)	–	1 (25.40mm)	1/2 (12.70mm)	3-1/2	Flush	57154

Weight	0.26 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
