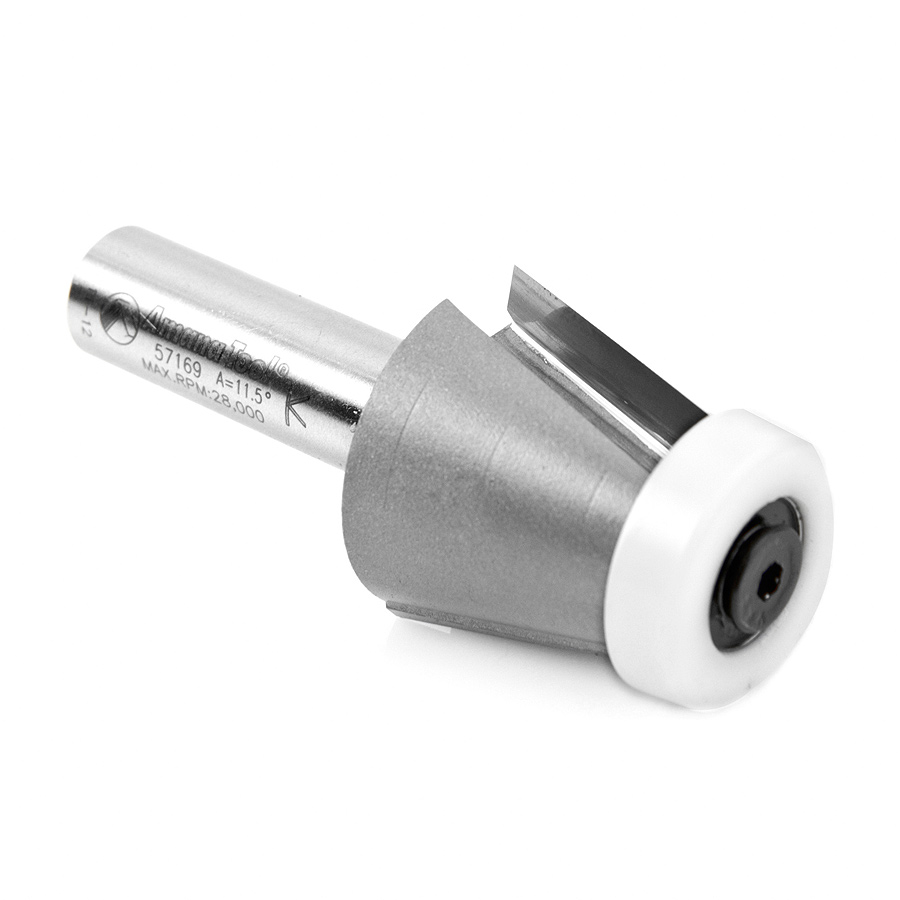

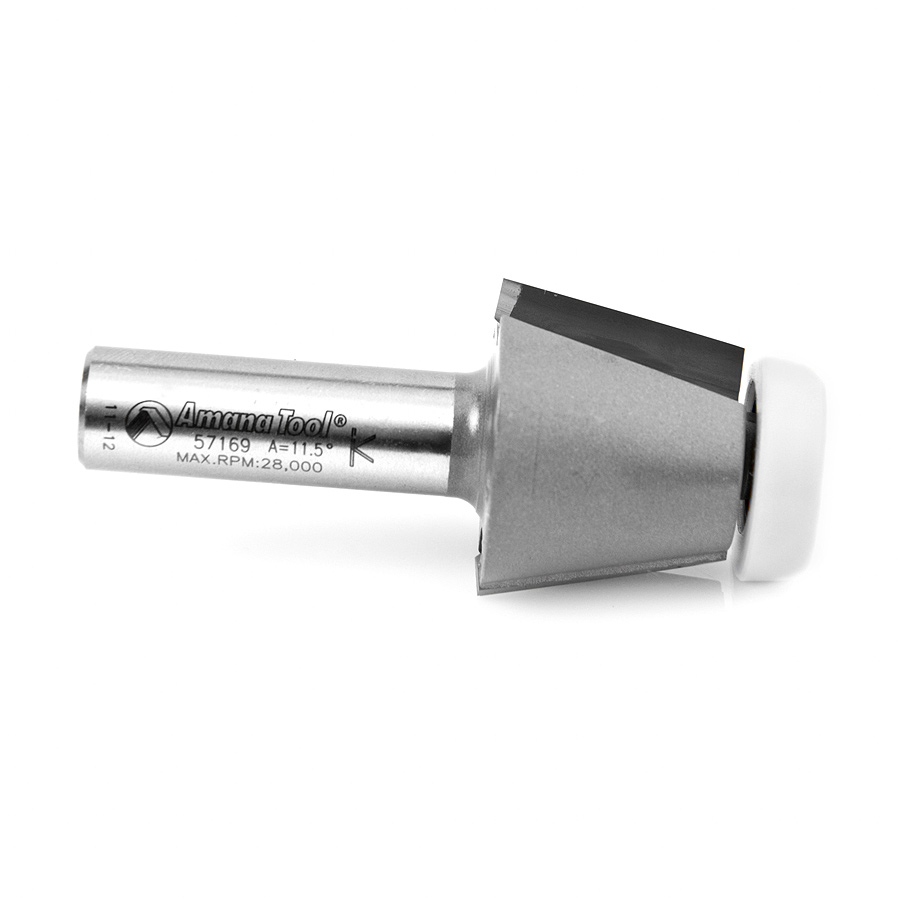

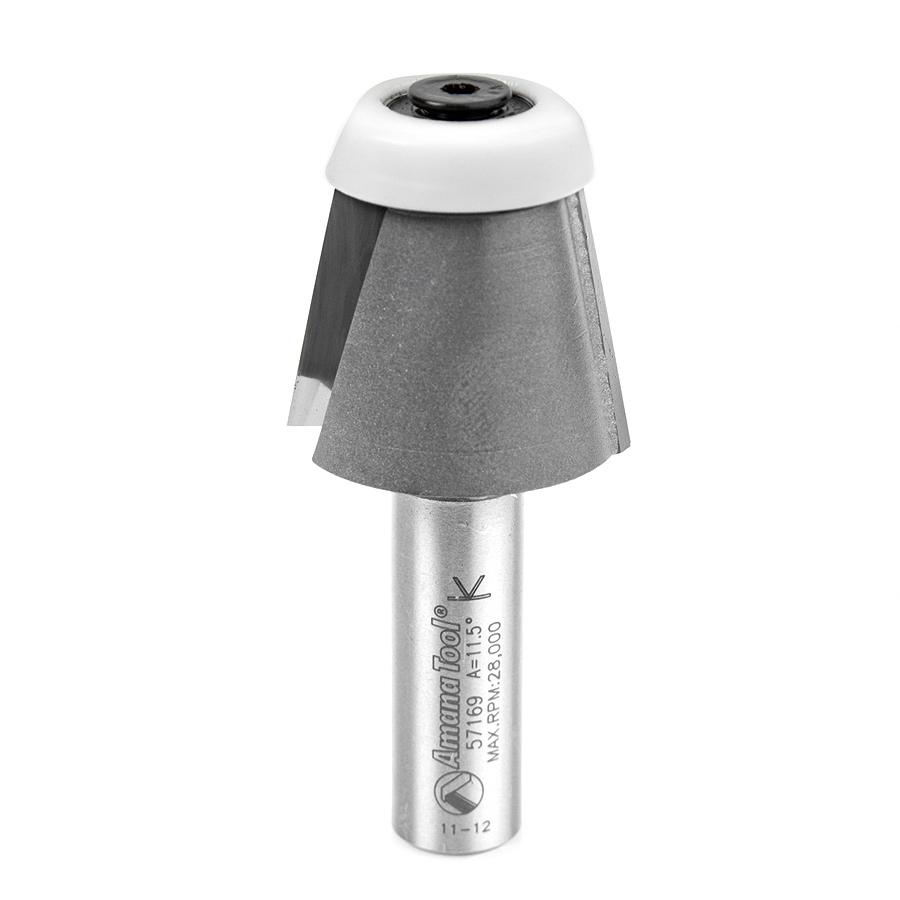

57169 Carbide Tipped Bevel Lansen Edge Sink Solid Surface 1-3/16 Dia x 1 x 1/2 Inch Shank

Amana 57169 Carbide Tipped Bevel Lansen Edge Sink Solid Surface 1-3/16 Dia x 1 x 1/2 Inch Shank

Original price was: $205.00.Current price is: $153.75.

LANSEN / KARRAN SINK EDGE BIT

UPC: 738685571699 SKU: Amana 57169 Categories: Amana Tool, Karran Stainless Steel Sink Edge Router Bits with Ultra-Glide Ball Bearing Guide Assembly, Router Bits, Solid Surface Router Bits

Item Description

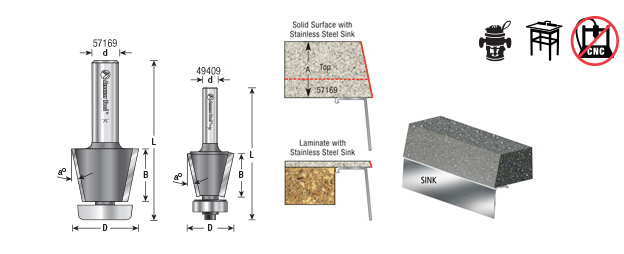

This bit is designed specifically for use for the Karran stainless steel edgesinks for laminate and 1/2″ solid surface materials. They trim the counter-top edge after the bowl is mounted.

Specifications

Angle (a°)	11.5°
Diameter (D)	1-3/16
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	3-1/8
Replacement Bearing	47733
Screw #	67146
Flutes	2
A	1/2 or 3/4

Other Sizes Available

Angle (a°)	Diameter (D)	A	Cutting Height (B)	Shank (d)	Overall Length (L)	Description	Tool No.
5°	49/64 (19.45mm)	1/2	1-1/2	1/2 (12.70mm)	3-1/2	Flush	57155
15°	7/8 (22.23mm)	1/2	7/8 (22.23mm)	1/4 (6.35mm)	2-9/16	Bevel	49409
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	45412
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	45412-5
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	45415
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	45415-5

Weight	0.34 lbs
