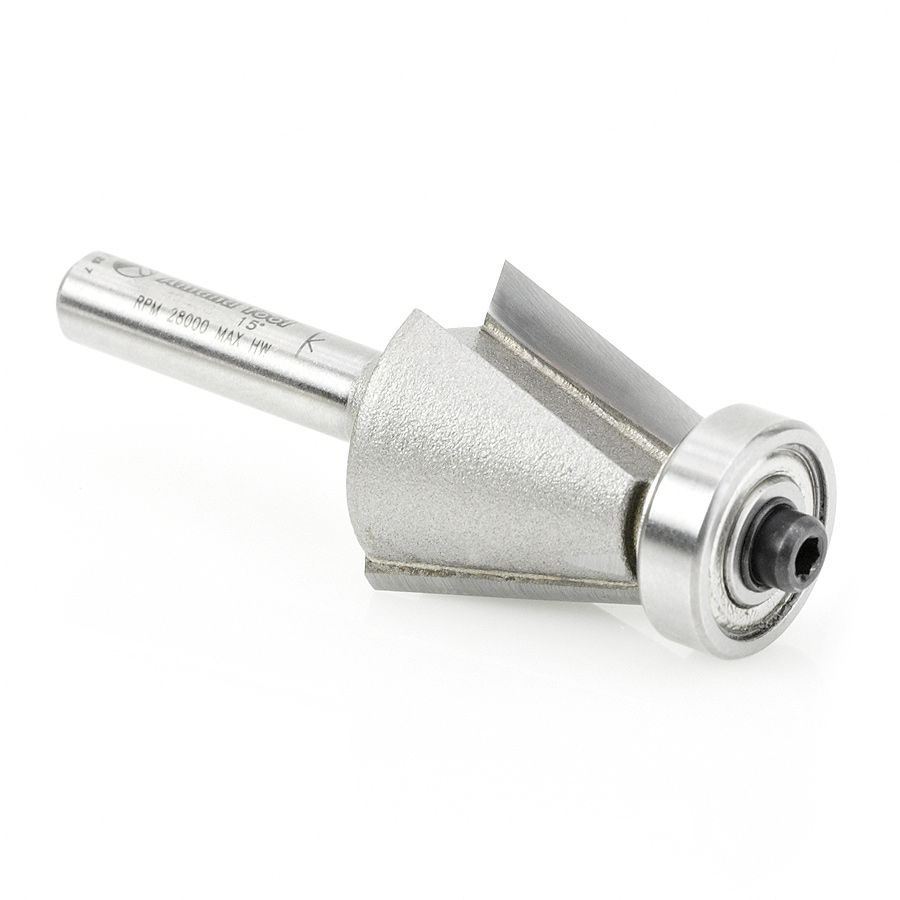

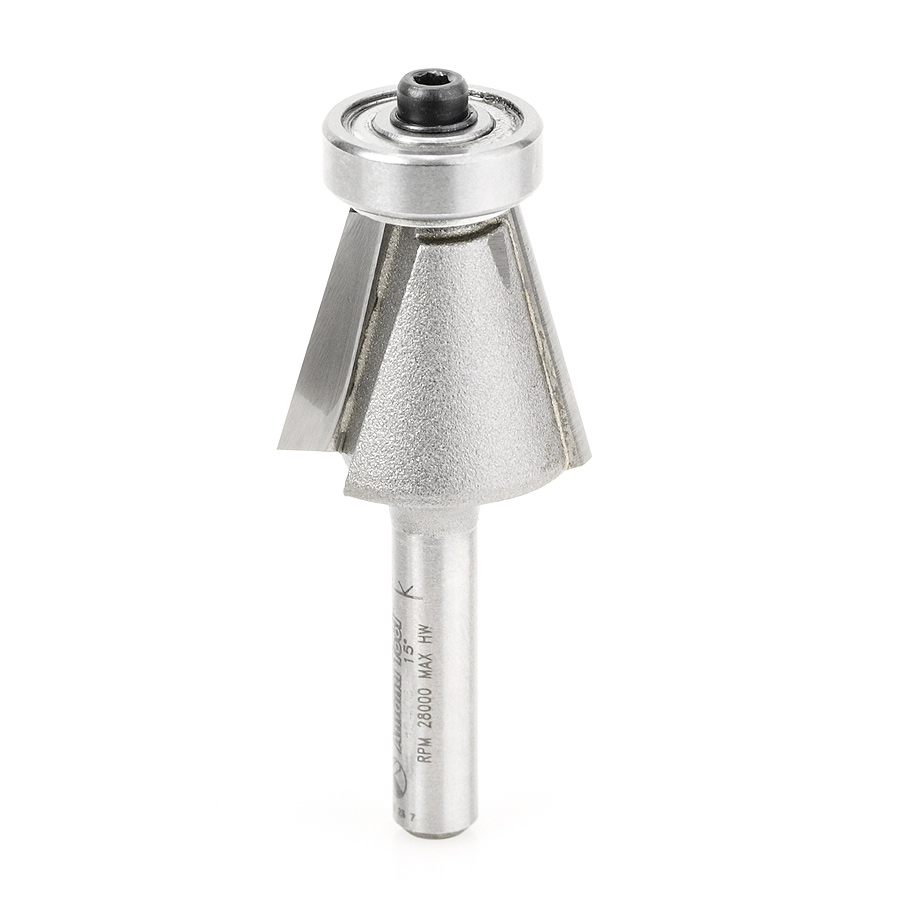

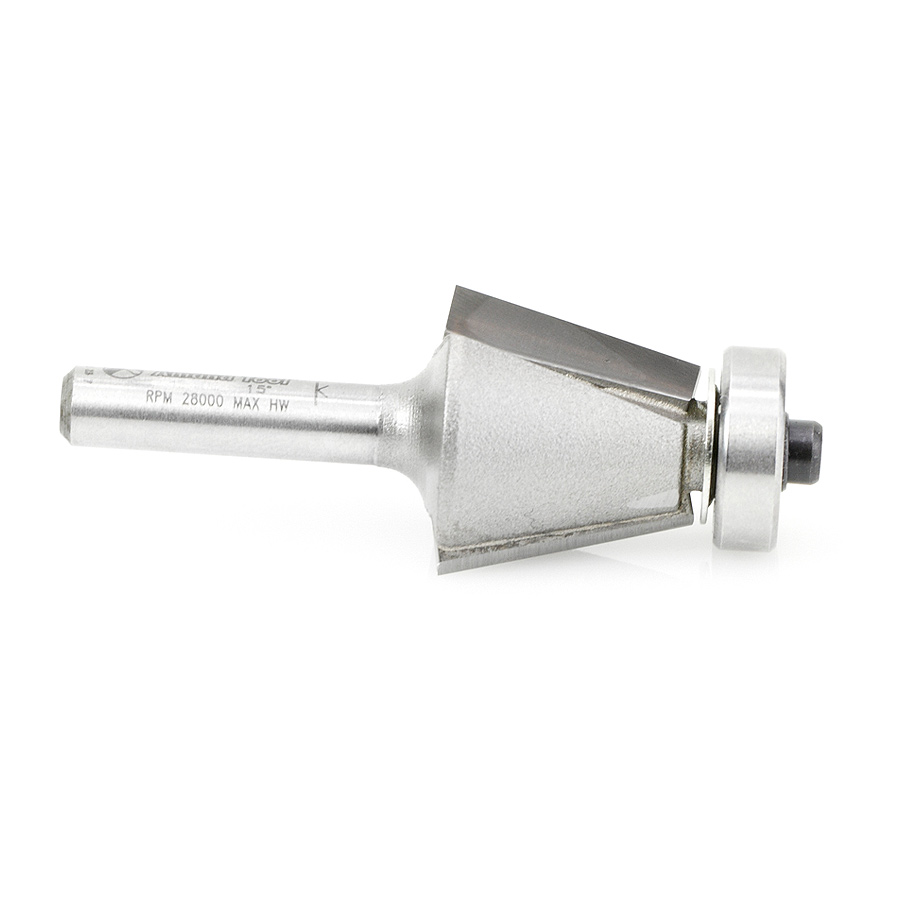

49409 Carbide Tipped Lansen Stainless Steel Edge Sinks 15 Deg Bevel x 7/8 Dia x 7/8 x 1/4 Inch Shank

Amana 49409 Carbide Tipped Lansen Stainless Steel Edge Sinks 15 Deg Bevel x 7/8 Dia x 7/8 x 1/4 Inch Shank

Name: Amana 49409 Carbide Tipped Lansen Stainless Steel Edge Sinks 15 Deg Bevel x 7/8 Dia x 7/8 x 1/4 Inch Shank
SKU: Amana 49409
Availability: InStock

Original price was: $58.90.Current price is: $44.18.

15 DEGREE CHAMFER 1/4 SHANK

UPC: 738685944097 SKU: Amana 49409 Categories: Amana Tool, Karran Stainless Steel Sink Edge Router Bits with Ultra-Glide Ball Bearing Guide Assembly, Router Bits, Solid Surface Router Bits

Item Description

This bit is designed specifically for use for the Karran stainless steel edgesinks for laminate and 1/2″ solid surface materials. They trim the counter-top edge after the bowl is mounted.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49409	47718	67096	67098	67101

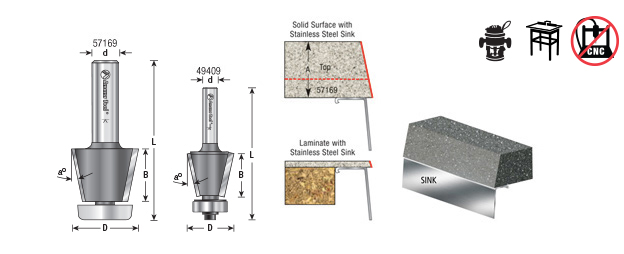

Specifications

Angle (a°)	15°
Diameter (D)	7/8
Cutting Height (B)	7/8
Shank (d)	1/4
Overall Length (L)	2-9/16
Replacement Bearing	47718
Flutes	2
A	1/2 or 3/4

Other Sizes Available

Angle (a°)	Diameter (D)	A	Cutting Height (B)	Shank (d)	Overall Length (L)	Description	Tool No.
5°	49/64 (19.45mm)	1/2	1-1/2	1/2 (12.70mm)	3-1/2	Flush	57155
11.5°	1-3/16	1/2	1 (25.40mm)	1/2 (12.70mm)	3-1/8	Bevel	57169
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	45412
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	45412-5
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	45415
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	45415-5

Weight	0.1 lbs
