Sale!

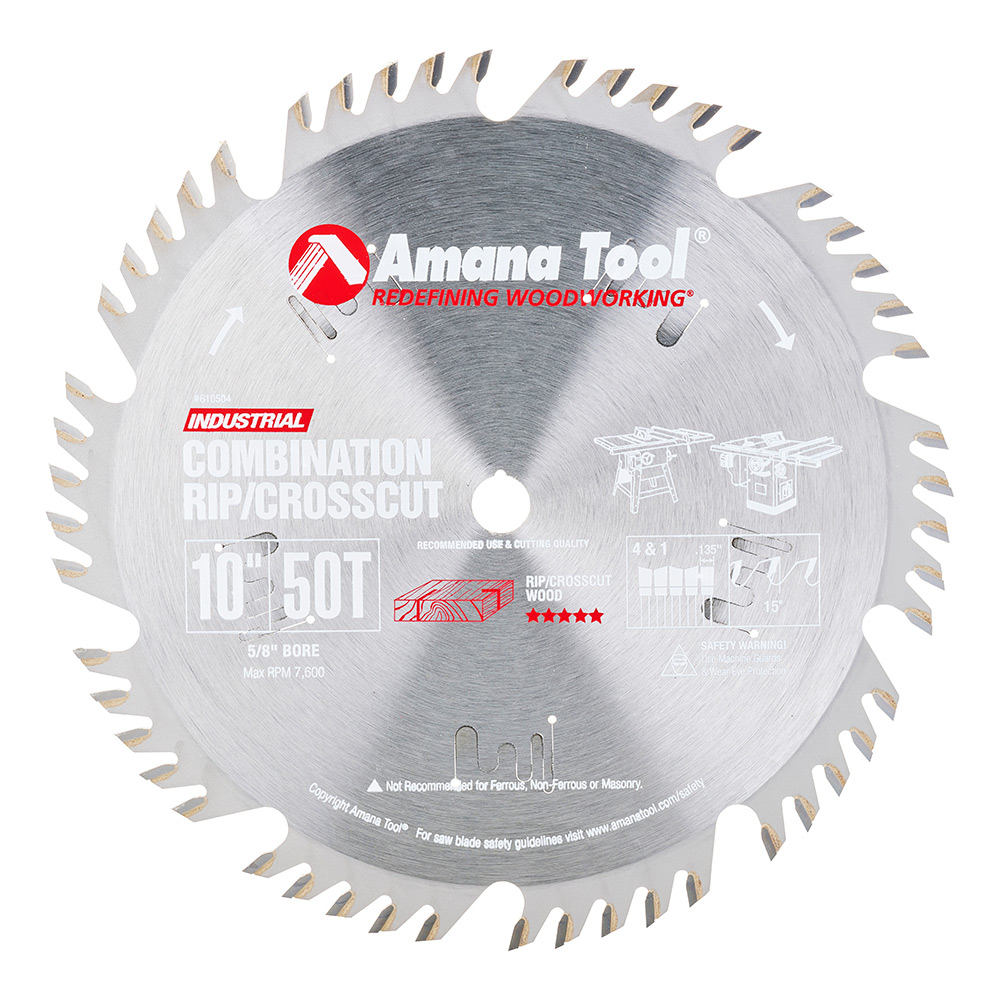

Amana 610504 Carbide Tipped Combination Ripping and Crosscut 10 Inch Dia x 50T 4+1, 15 Deg, 5/8 Bore

Name: Amana 610504 Carbide Tipped Combination Ripping and Crosscut 10 Inch Dia x 50T 4+1, 15 Deg, 5/8 Bore
SKU: Amana 610504
Availability: InStock

Original price was: $129.90.Current price is: $97.43.

10″/50T COMBINATION GRIND

UPC: N/A SKU: Amana 610504 Categories: Amana Tool, Combination Ripping & Crosscut Saw Blades, Saw Blades

Item Description

Where one blade must do almost everything– ripping and crosscutting hardwood and softwood, cutting plywood– this blade is a good choice. It is in the traditional combination-blade configuration, with a flat-top tooth and 4 alternate top bevel teeth in groupings of five. The large gullets at the raker tooth allow deep cuts with improved chip ejection.

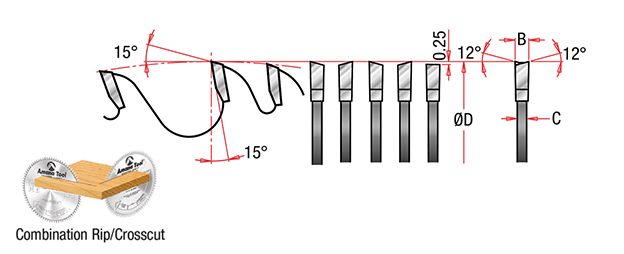

Specifications

(D) Diameter	10 (250mm)
Teeth	50
(d) Bore	5/8
Tooth Grind	4&1
Hook Angle	15°
Kerf (B)	.135 (3.4mm)
Plate (C)	.095 (2.4mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Tool No.
8	40	4&1	15°	.126	.087	5/8 (15.88mm)	684004
9	40	4&1	15°	.126	.087	5/8 (15.88mm)	694004
10	50	4&1	15°	.138	.100	5/8 (15.88mm)	610504C
12	60	4&1	15°	.150	.110	1 (25.40mm)	612604
14	70	4&1	15°	.150	.110	1 (25.40mm)	614704
16	80	4&1	15°	.158	.118	1 (25.40mm)	616804

Weight	2.5 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
