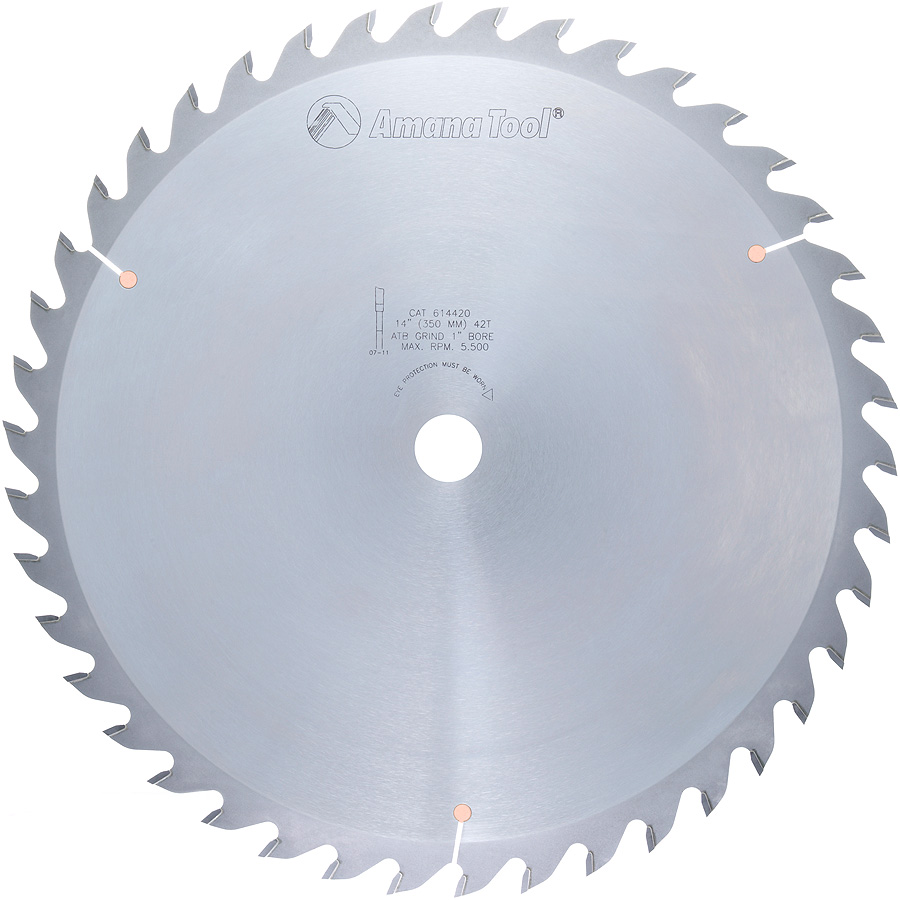

614420 Carbide Tipped General Purpose 14 Inch Dia x 42T ATB, 15 Deg, 1 Inch Bore

Amana 614420 Carbide Tipped General Purpose 14 Inch Dia x 42T ATB, 15 Deg, 1 Inch Bore

Name: Amana 614420 Carbide Tipped General Purpose 14 Inch Dia x 42T ATB, 15 Deg, 1 Inch Bore
SKU: Amana 614420
Availability: InStock

Original price was: $217.80.Current price is: $163.35.

14″/42T RIPPING A.T.B. GRIND

UPC: 738685614426 SKU: Amana 614420 Categories: Amana Tool, General Purpose Saw Blades, Multi-Use Ripping & General Purpose Saw Blades, Saw Blades

Item Description

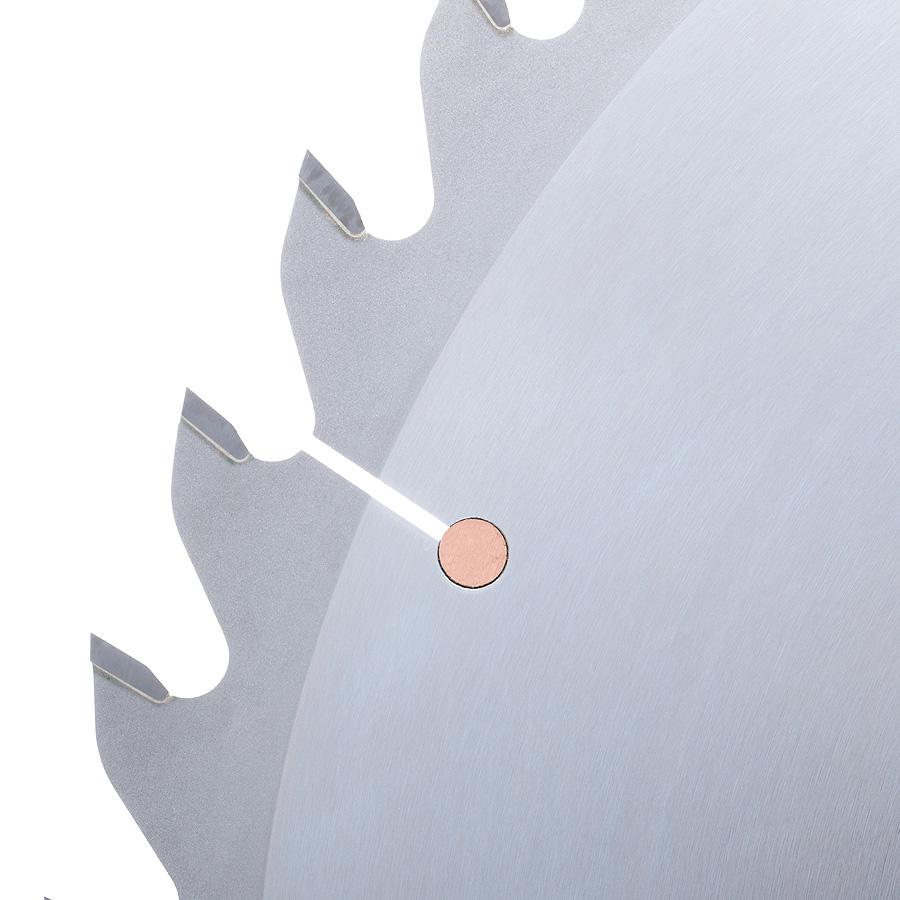

This is an excellent and popular general purpose configuration blade. Its low tooth count, high hook angle, and ample gullets make it an aggressive, fast-cutting ripping blade. But its ATB grind allows it to crosscut well. A good choice for all-around use.

Specifications

(D) Diameter	14 (350mm)
Teeth	42
(d) Bore	1
Tooth Grind	ATB
Hook Angle	15°
Kerf (B)	.137 (3.5mm)
Plate (C)	.098 (2.5mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	30	ATB	15°	.126	.087	5/8 (15.88mm)	–	610300
10	30	ATB	15°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	610300-30
12	36	ATB	15°	.126	.087	1 (25.40mm)	–	612360
12	36	ATB	15°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612360-30
14	42	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614420-30
16	48	ATB	15°	.137	.098	1 (25.40mm)	–	616480
16	48	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	616480-30
18	54	ATB	15°	.150	.110	1 (25.40mm)	–	618540
20	60	ATB	15°	.173	.110	1 (25.40mm)	–	620600

Weight	4.45 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
