Sale!

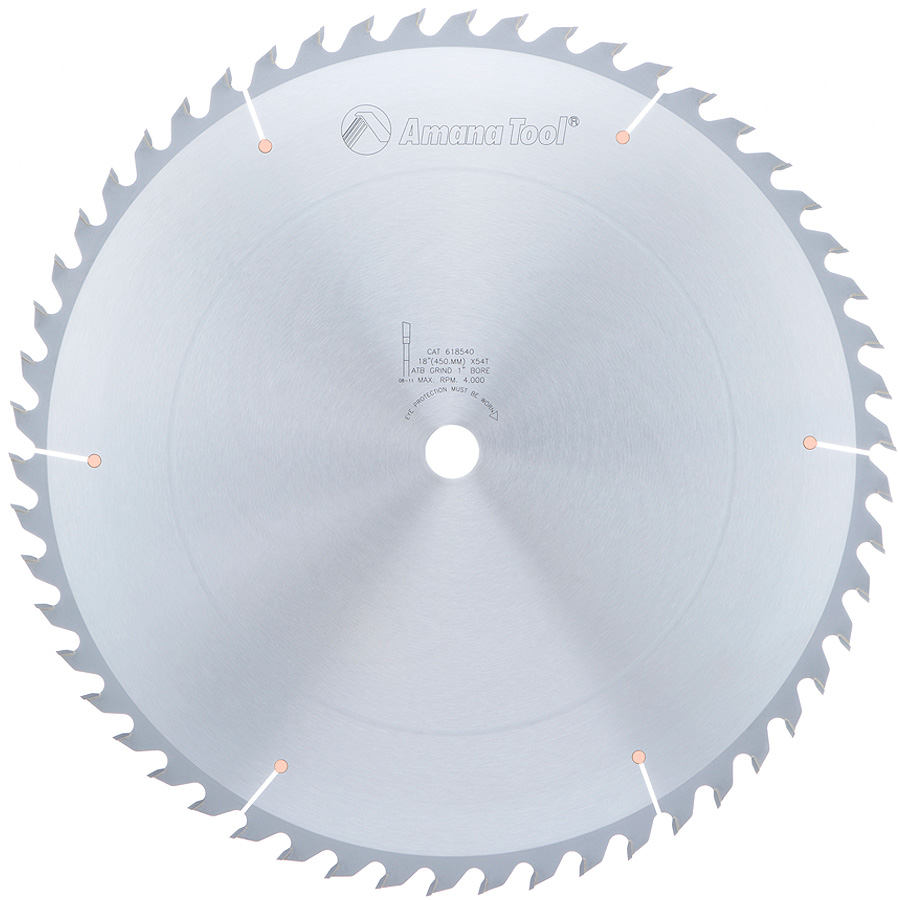

618540 Carbide Tipped General Purpose 18 Inch Dia x 54T ATB, 15 Deg, 1 Inch Bore

Amana 618540 Carbide Tipped General Purpose 18 Inch Dia x 54T ATB, 15 Deg, 1 Inch Bore

Name: Amana 618540 Carbide Tipped General Purpose 18 Inch Dia x 54T ATB, 15 Deg, 1 Inch Bore
SKU: Amana 618540
Availability: InStock

Original price was: $358.75.Current price is: $269.07.

18″/54T RIPPING A.T.B. GRIND

UPC: 738685618547 SKU: Amana 618540 Categories: Amana Tool, General Purpose Saw Blades, Multi-Use Ripping & General Purpose Saw Blades, Saw Blades

Item Description

This is an excellent and popular general purpose configuration blade. Its low tooth count, high hook angle, and ample gullets make it an aggressive, fast-cutting ripping blade. But its ATB grind allows it to crosscut well. A good choice for all-around use.

Specifications

(D) Diameter	18 (450mm)
Teeth	54
(d) Bore	1
Tooth Grind	ATB
Hook Angle	15°
Kerf (B)	.150 (3.8mm)
Plate (C)	.110 (2.8mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	30	ATB	15°	.126	.087	5/8 (15.88mm)	–	610300
10	30	ATB	15°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	610300-30
12	36	ATB	15°	.126	.087	1 (25.40mm)	–	612360
12	36	ATB	15°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612360-30
14	42	ATB	15°	.137	.098	1 (25.40mm)	–	614420
14	42	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614420-30
16	48	ATB	15°	.137	.098	1 (25.40mm)	–	616480
16	48	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	616480-30
20	60	ATB	15°	.173	.110	1 (25.40mm)	–	620600

Weight	8.05 lbs
