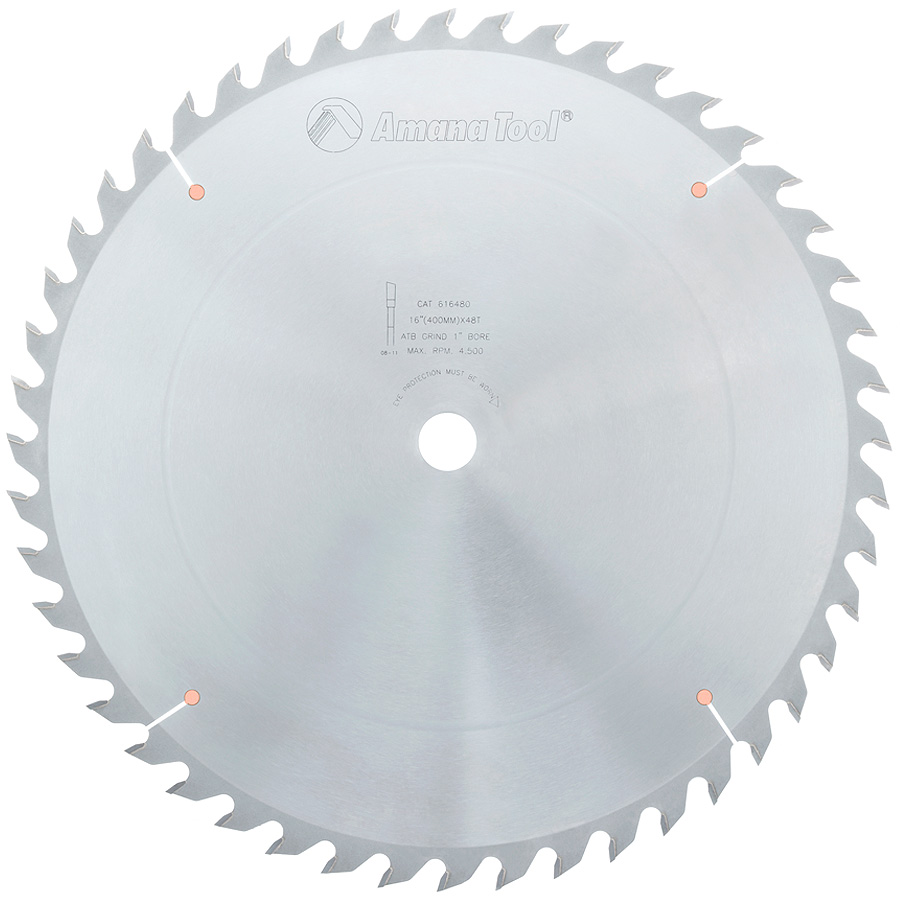

616480 Carbide Tipped General Purpose 16 Inch Dia x 48T ATB, 15 Deg, 1 Inch Bore

Amana 616480 Carbide Tipped General Purpose 16 Inch Dia x 48T ATB, 15 Deg, 1 Inch Bore

Name: Amana 616480 Carbide Tipped General Purpose 16 Inch Dia x 48T ATB, 15 Deg, 1 Inch Bore
SKU: Amana 616480
Availability: InStock

Original price was: $256.25.Current price is: $192.19.

16″/48T RIPPING A.T.B. GRIND

UPC: 738685616482 SKU: Amana 616480 Categories: Amana Tool, General Purpose Saw Blades, Multi-Use Ripping & General Purpose Saw Blades, Saw Blades

Item Description

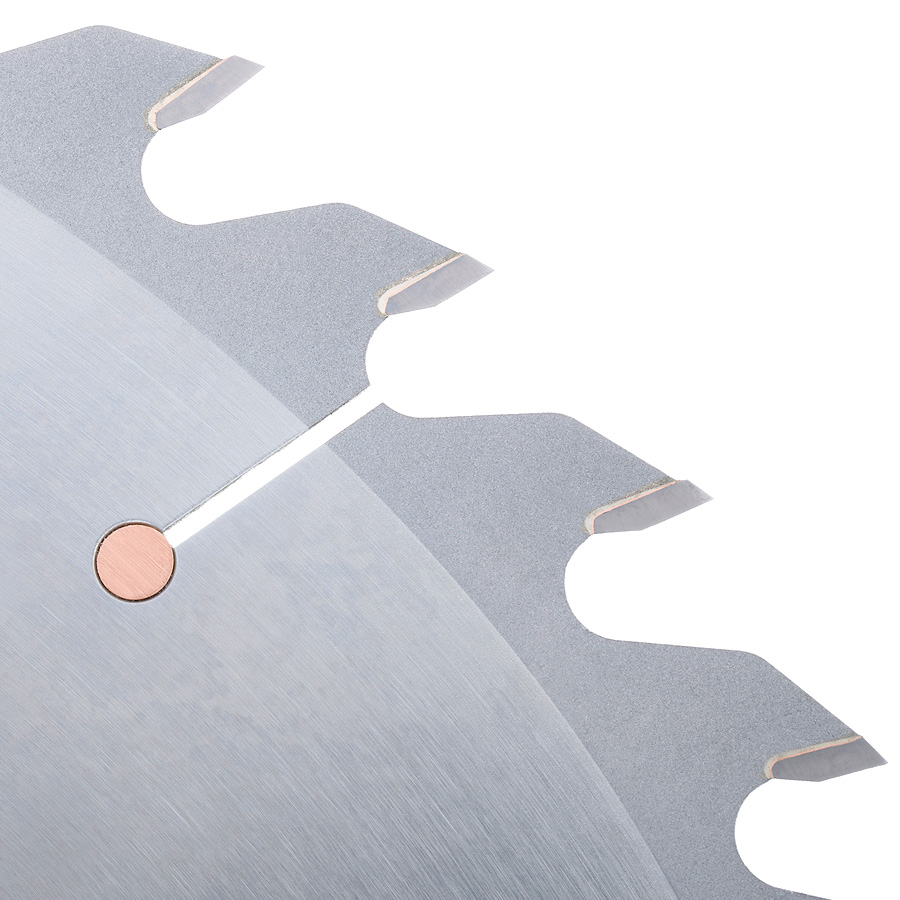

This is an excellent and popular general purpose configuration blade. Its low tooth count, high hook angle, and ample gullets make it an aggressive, fast-cutting ripping blade. But its ATB grind allows it to crosscut well. A good choice for all-around use.

Specifications

(D) Diameter	16 (400mm)
Teeth	48
(d) Bore	1
Tooth Grind	ATB
Hook Angle	15°
Kerf (B)	.137 (3.5mm)
Plate (C)	.098 (2.5mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	30	ATB	15°	.126	.087	5/8 (15.88mm)	–	610300
10	30	ATB	15°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	610300-30
12	36	ATB	15°	.126	.087	1 (25.40mm)	–	612360
12	36	ATB	15°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612360-30
14	42	ATB	15°	.137	.098	1 (25.40mm)	–	614420
14	42	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614420-30
16	48	ATB	15°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	616480-30
18	54	ATB	15°	.150	.110	1 (25.40mm)	–	618540
20	60	ATB	15°	.173	.110	1 (25.40mm)	–	620600

Weight	6.95 lbs
