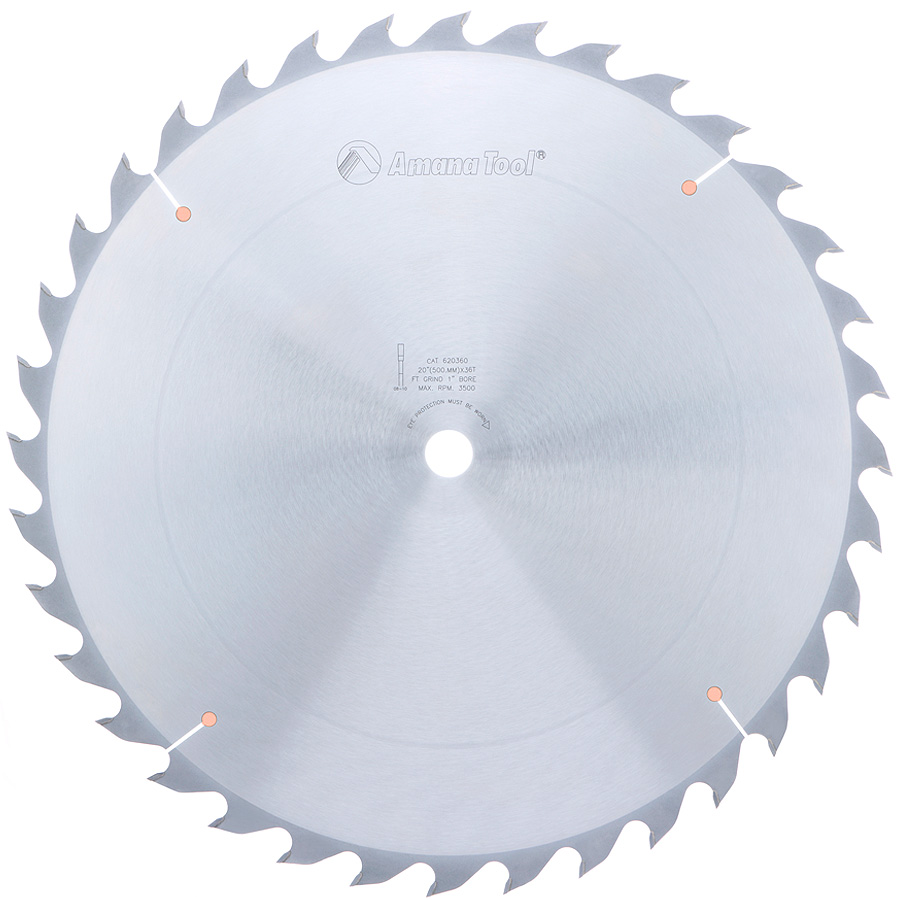

620360 Carbide Tipped Ripping Standard 20 Inch Dia x 36T FT, 18 Deg, 1 Inch Bore

Amana 620360 Carbide Tipped Ripping Standard 20 Inch Dia x 36T FT, 18 Deg, 1 Inch Bore

Name: Amana 620360 Carbide Tipped Ripping Standard 20 Inch Dia x 36T FT, 18 Deg, 1 Inch Bore
SKU: Amana 620360
Availability: InStock

Original price was: $345.95.Current price is: $259.47.

20″/36Tx1″ RIPPING STRAIGHT

UPC: 738685620366 SKU: Amana 620360 Categories: Amana Tool, Ripping Saw Blades, Ripping Standard Saw Blades, Saw Blades

Item Description

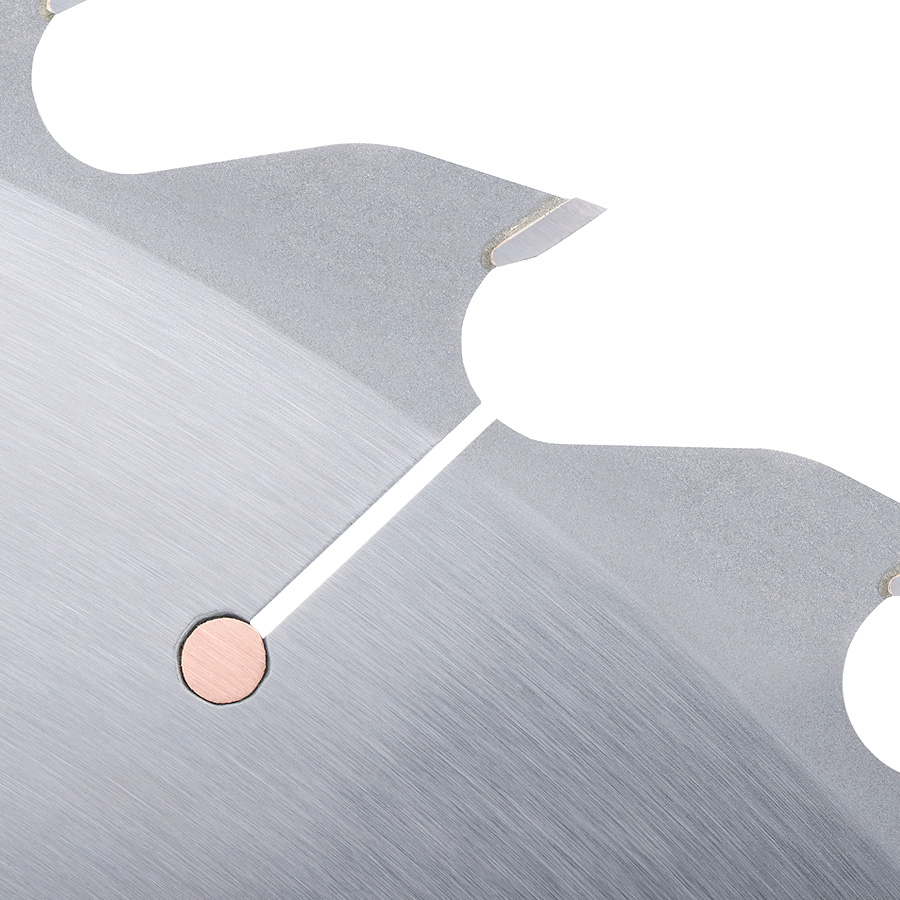

This blade is the classic ripper for both hardwood and softwood. It features the flat-top grind for cutting with the grain efficiently; ample gullets for fast chip-clearance; expansion slots and turbulence-reducing copper plugs. The new blade with the 20° hook angle features a thicker plate and cuts a wider kerf. Use in single and gang-rip saws.

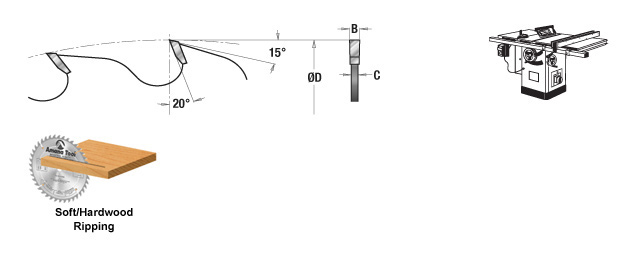

Specifications

(D) Diameter	20 (500mm)
Teeth	36
(d) Bore	1
Tooth Grind	FT
Hook Angle	20°
Kerf (B)	.173 (4.4mm)
Plate (C)	.110 (2.8mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	20	FT	18°	.126	.087	5/8 (15.88mm)	–	610200
10	24	FT	20°	.142	.095	5/8 (15.88mm)	–	610240
10	24	FT	20°	.142	.095	5/8 (15.88mm)	–	610240C
12	24	FT	18°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612240-30
12	30	FT	20°	.160	.110	1 (25.40mm)	–	612300
14	28	FT	18°	.137	.098	1 (25.40mm)	–	614280
16	32	FT	18°	.137	.098	1 (25.40mm)	–	616320
16	32	FT	18°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	616320-30
18	32	FT	20°	.157	.110	1 (25.40mm)	–	618320

Weight	11.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
