Sale!

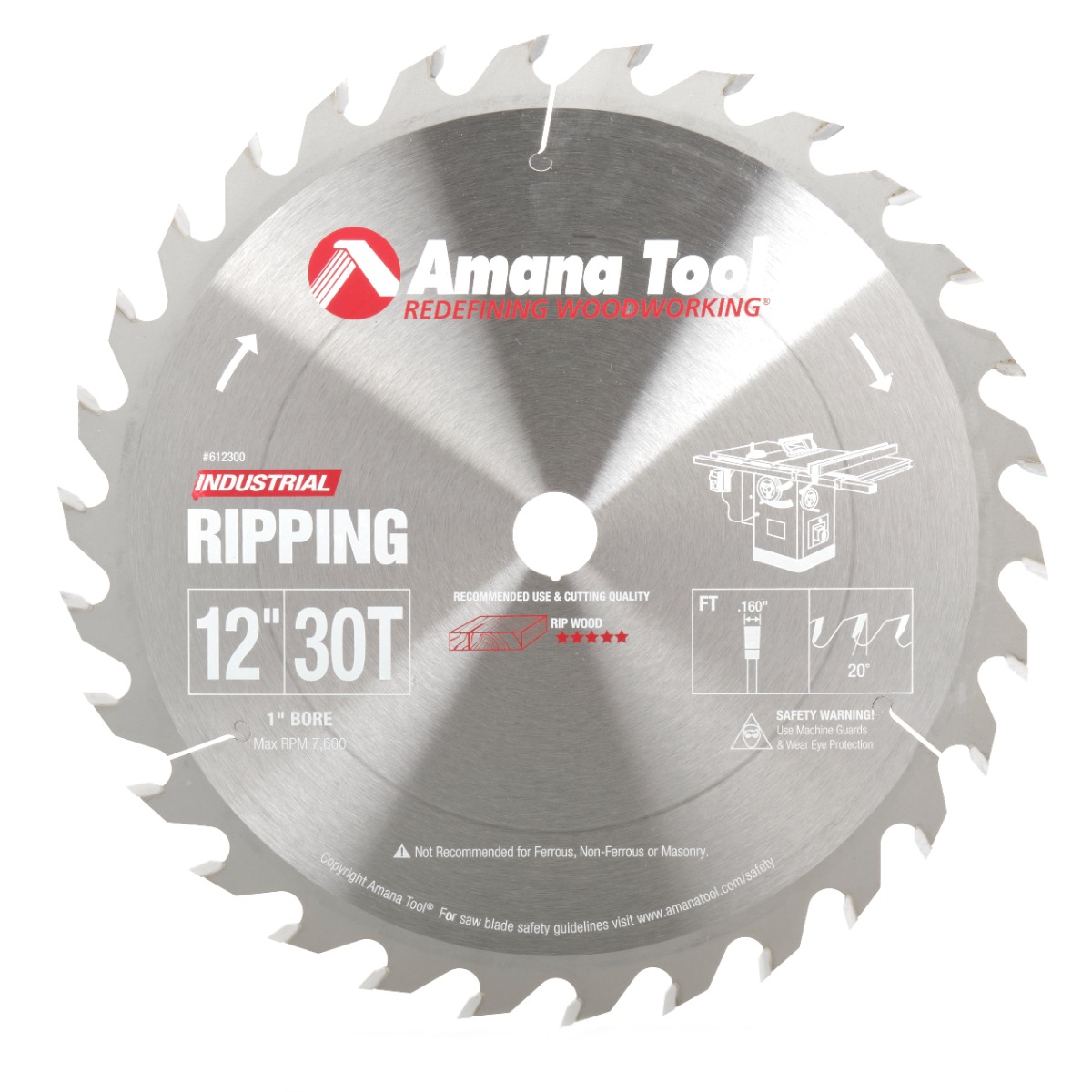

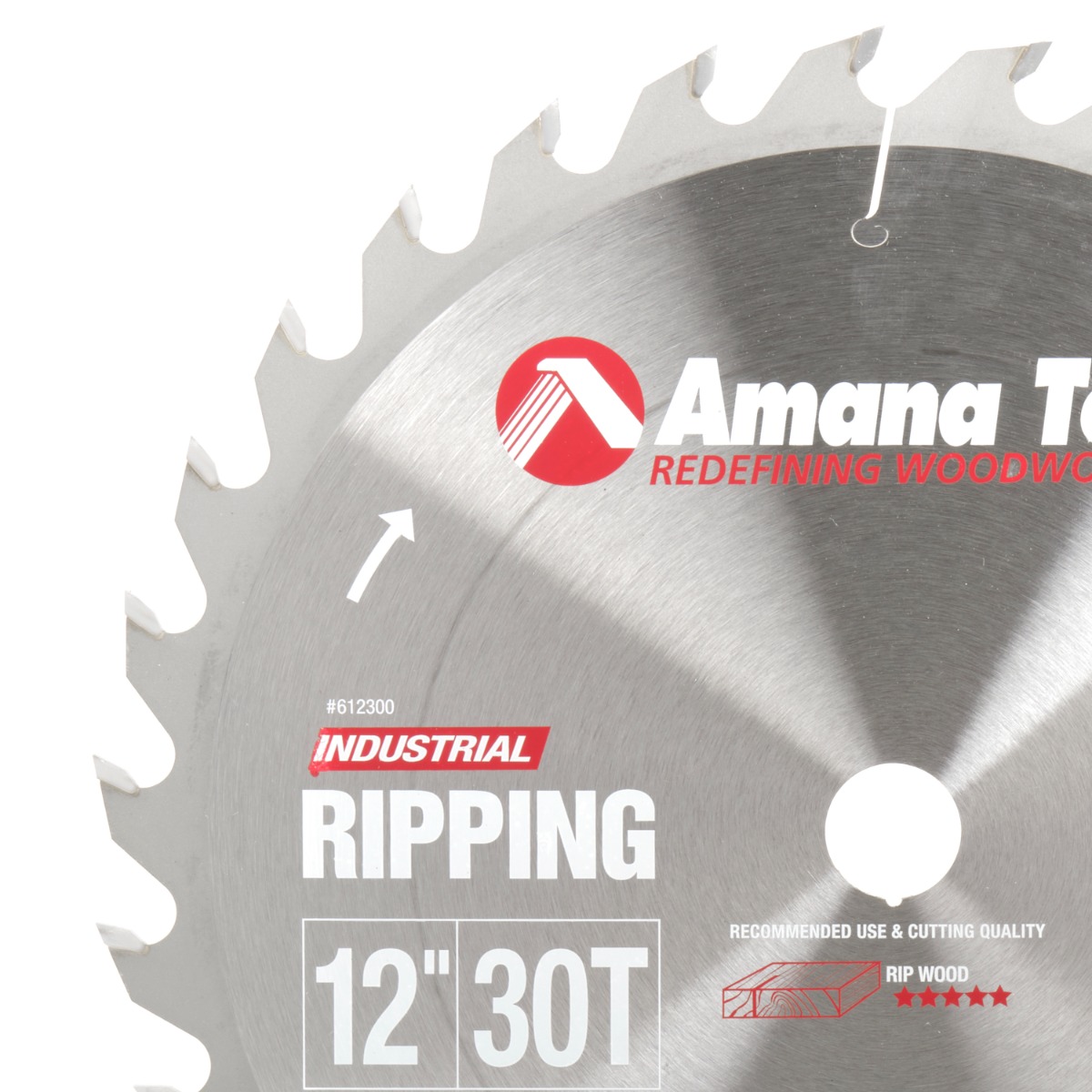

612300 Carbide Tipped Ripping Standard 12 Inch Dia x 30T FT, 20 Deg, 1 Inch Bore

Amana 612300 Carbide Tipped Ripping Standard 12 Inch Dia x 30T FT, 20 Deg, 1 Inch Bore

Original price was: $230.60.Current price is: $172.95.

12″/30T RIPPING STRAIGHT GRIND

Item Description

This blade is the classic ripper for both hardwood and softwood. It features the flat-top grind for cutting with the grain efficiently; ample gullets for fast chip-clearance; expansion slots and turbulence-reducing copper plugs. The new blade with the 20° hook angle features a thicker plate and cuts a wider kerf. Use in single and gang-rip saws.

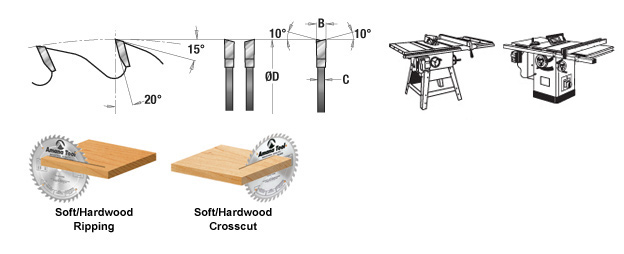

Specifications

(D) Diameter	12 (300mm)
Teeth	30
(d) Bore	1
Tooth Grind	FT
Hook Angle	20°
Kerf (B)	.160 (4.0mm)
Plate (C)	.110 (2.8mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	20	FT	18°	.126	.087	5/8 (15.88mm)	–	610200
10	24	FT	20°	.142	.095	5/8 (15.88mm)	–	610240
10	24	FT	20°	.142	.095	5/8 (15.88mm)	–	610240C
12	24	FT	18°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612240-30
14	28	FT	18°	.137	.098	1 (25.40mm)	–	614280
16	32	FT	18°	.137	.098	1 (25.40mm)	–	616320
16	32	FT	18°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	616320-30
18	32	FT	20°	.157	.110	1 (25.40mm)	–	618320
20	36	FT	20°	.173	.110	1 (25.40mm)	–	620360

Weight	3.7 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
