Sale!

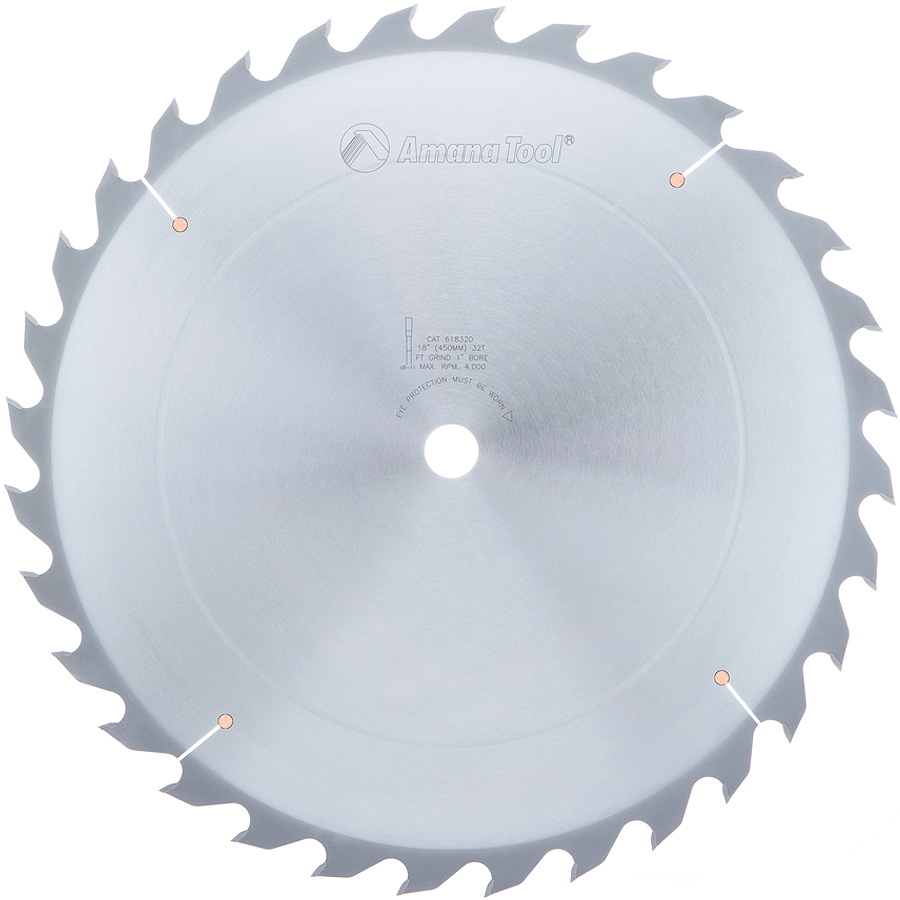

618320 Carbide Tipped Ripping Standard 18 Inch Dia x 32T FT, 18 Deg, 1 Inch Bore

Amana 618320 Carbide Tipped Ripping Standard 18 Inch Dia x 32T FT, 18 Deg, 1 Inch Bore

Name: Amana 618320 Carbide Tipped Ripping Standard 18 Inch Dia x 32T FT, 18 Deg, 1 Inch Bore
SKU: Amana 618320
Availability: InStock

Original price was: $281.90.Current price is: $211.43.

18″/32T RIPPNG STRAIGHT GRIND

UPC: 738685668320 SKU: Amana 618320 Categories: Amana Tool, Ripping Saw Blades, Ripping Standard Saw Blades, Saw Blades

Item Description

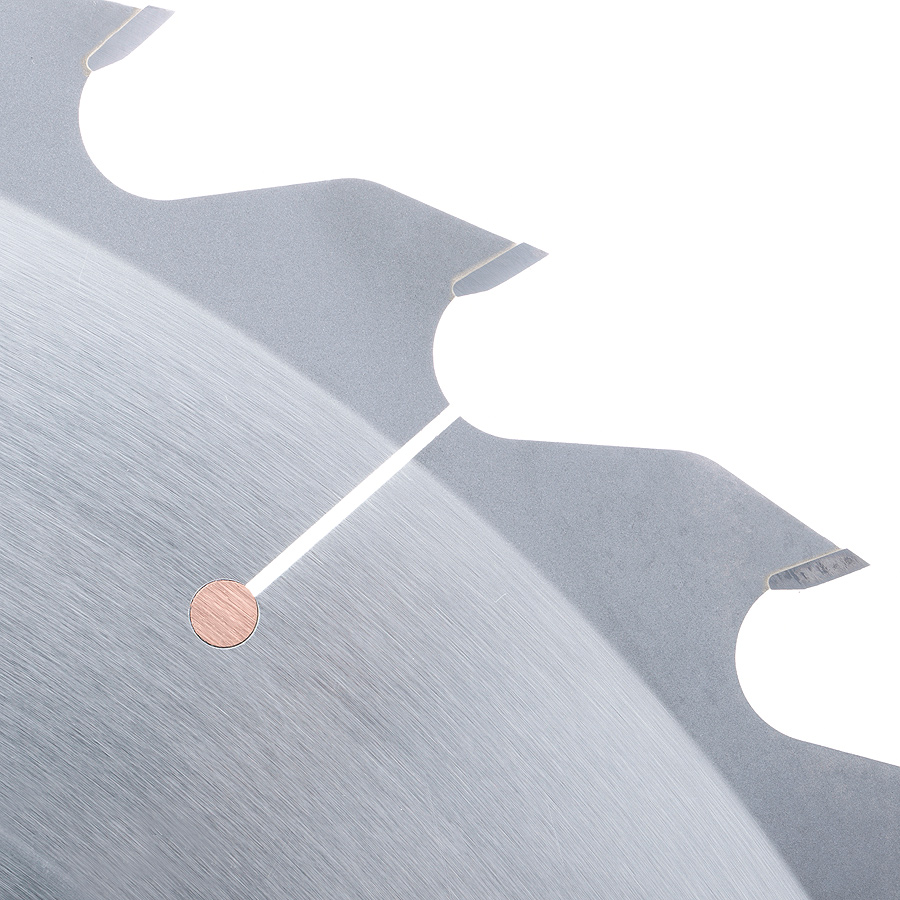

This blade is the classic ripper for both hardwood and softwood. It features the flat-top grind for cutting with the grain efficiently; ample gullets for fast chip-clearance; expansion slots and turbulence-reducing copper plugs. The new blade with the 20° hook angle features a thicker plate and cuts a wider kerf. Use in single and gang-rip saws.

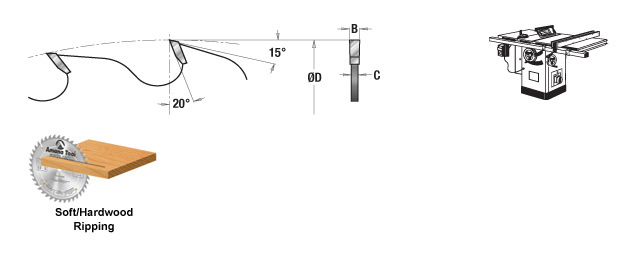

Specifications

(D) Diameter	18 (450mm)
Teeth	32
(d) Bore	1
Tooth Grind	FT
Hook Angle	20°
Kerf (B)	.157 (4.0mm)
Plate (C)	.110 (2.8mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	20	FT	18°	.126	.087	5/8 (15.88mm)	–	610200
10	24	FT	20°	.142	.095	5/8 (15.88mm)	–	610240
10	24	FT	20°	.142	.095	5/8 (15.88mm)	–	610240C
12	24	FT	18°	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612240-30
12	30	FT	20°	.160	.110	1 (25.40mm)	–	612300
14	28	FT	18°	.137	.098	1 (25.40mm)	–	614280
16	32	FT	18°	.137	.098	1 (25.40mm)	–	616320
16	32	FT	18°	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	616320-30
20	36	FT	20°	.173	.110	1 (25.40mm)	–	620360

Weight	8.86 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
