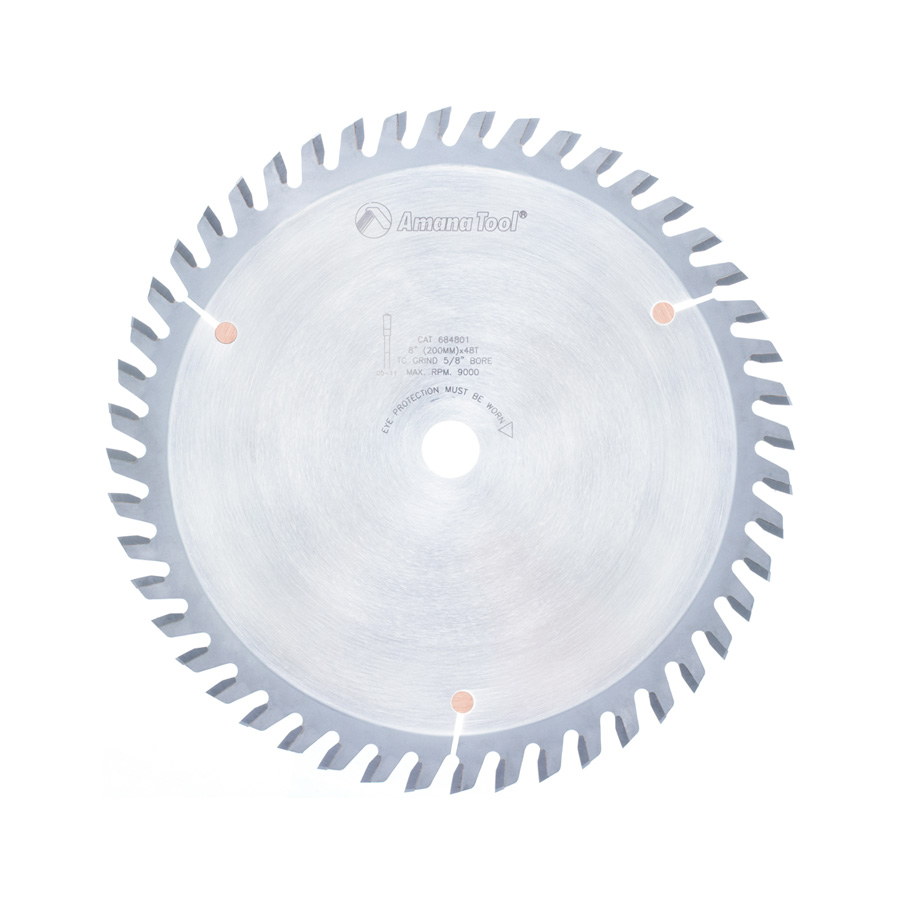

684801 Carbide Tipped Heavy Duty General Purpose 8 Inch Dia x 48T TCG, 10 Deg, 5/8 Bore

Amana 684801 Carbide Tipped Heavy Duty General Purpose 8 Inch Dia x 48T TCG, 10 Deg, 5/8 Bore

Name: Amana 684801 Carbide Tipped Heavy Duty General Purpose 8 Inch Dia x 48T TCG, 10 Deg, 5/8 Bore
SKU: Amana 684801
Availability: InStock

Original price was: $187.05.Current price is: $140.29.

8″/48T CUT-OFF SAW T.C.G.GRIND

UPC: 738685684818 SKU: Amana 684801 Categories: Amana Tool, General Purpose Cut-Off TC Grind Saw Blades, General Purpose Saw Blades, Saw Blades

Item Description

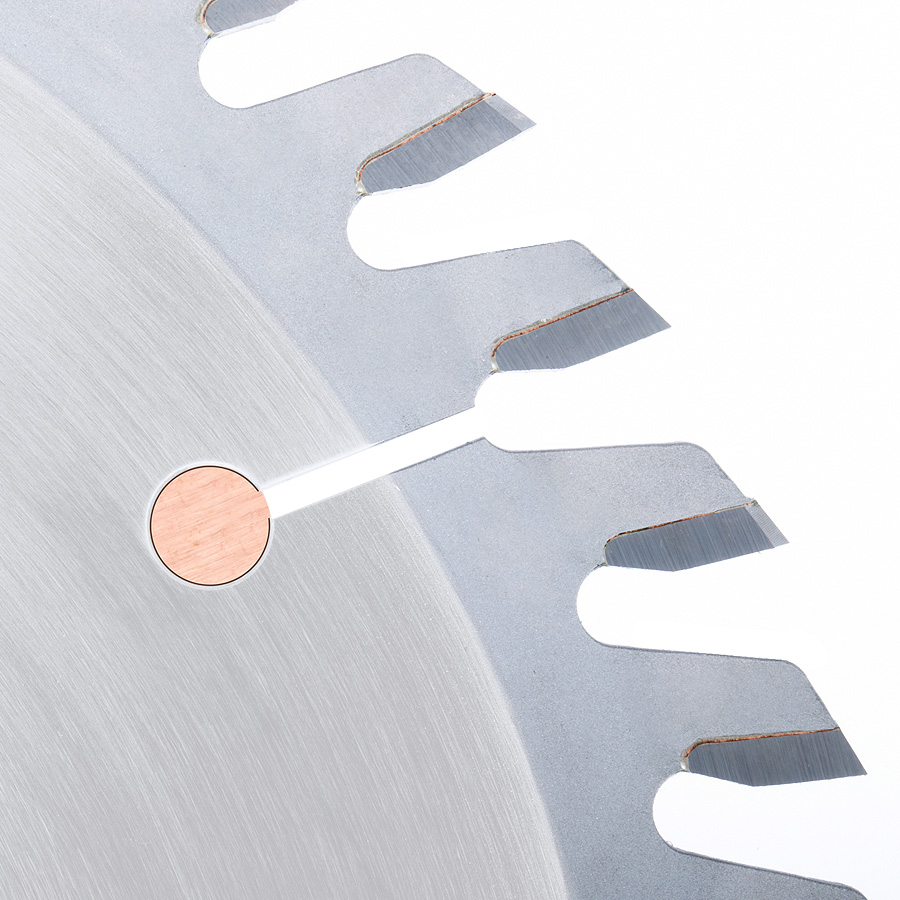

While this blade handles general trimming and crosscutting of hardwood and softwood, plywood and composition materials, it excels at cutting single or double-sided plastic-laminated material. It leaves a smooth, clean, chip-free finish on the top and bottom edges. The blades in this series feature a high tooth count, the triple-chip grind and a 10° hook angle for a successful compromise between feed effort and cut finish.

Specifications

(D) Diameter	8 (200mm)
Teeth	48
(d) Bore	5/8
Tooth Grind	TCG
Hook Angle	10°
Kerf (B)	.118 (3.0mm)
Plate (C)	.079 (2.0mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Tool No.
10	60	TCG	.126	.087	5/8 (15.88mm)	–	610601
10	60	TCG	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	610601-30
10	60	TCG	.126	.087	5/8 (15.88mm)	–	610601C
12	60	TCG	.126	.087	1 (25.40mm)	–	612601
12	60	TCG	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612601-30
12	72	TCG	.126	.087	1 (25.40mm)	–	612721
12	72	TCG	.126	.087	30mm	2/7/42, 2/9/46 & 2/10/60	612721-30
14	72	TCG	.137	.098	1 (25.40mm)	–	614721
14	72	TCG	.137	.098	30mm	2/7/42, 2/9/46 & 2/10/60	614721-30
14	84	TCG	.137	.098	1 (25.40mm)	–	614841
16	96	TCG	.137	.098	1 (25.40mm)	–	616961
18	108	TCG	.158	.110	1 (25.40mm)	–	618109

Weight	1.3 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
