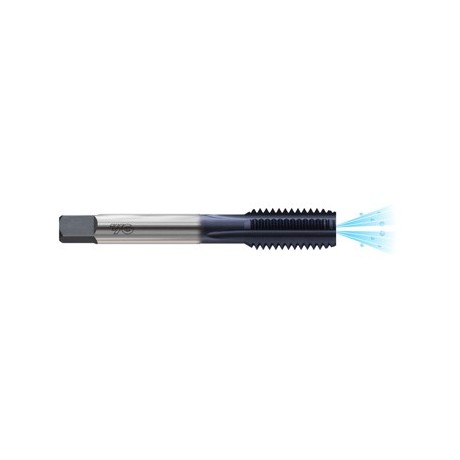

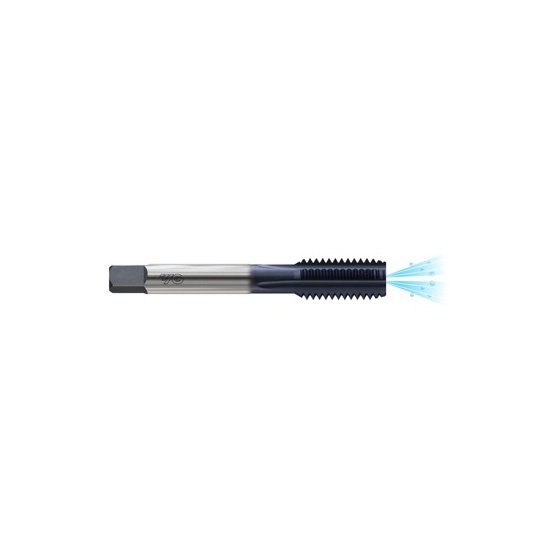

YG1-TR284A – M5 x .8 D4 – Hss-Pm Straight Flute Axial Coolant Hole Tialn Coated Tap

Original price was: $35.35.Current price is: $26.55.

YG Tap TiNi

UPC: N/A SKU: YG1-TR284A Categories: High Performance & HSS PM Tap, Tapping, YG Tap Cast Iron, YG-1

EDP No.	TR284A
Description	HSS-PM STRAIGHT FLUTE AXIAL COOLANT HOLE TIALN COATED TAP
Size	M5 x .8 D4
Available Qty.	Call for availability

Specifications

Serial #	84
Series	TR-A
Long Description	M5x0.8," 2.374 OAL HSS-PM 4 Flute TiALN D4 Modified Bottoming Straight Flute YG Cast Iron
Tap Type	Straight Flute
Size & Pitch	M5x0.8
# of Flutes	4
Diameter (inch)	0.1969
Diameter (metric)	5
Pitch	0.8
Thread Series	M
Pitch Limit	D4
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	TiALN
Material	HSS-PM
Blank Standard	302A
Overall Length (inch)	2.374
OAL (metric)	60.3
Thd. Lgth. (inch)	0.531
Thd. Lgth. (metric)	13.49
Sqr. Lgth. (inch)	0.25
Sqr. Lgth. (metric)	6.35
Shk. Dia. (inch)	0.194
Shk. Dia. (metric)	4.93
Sqr. Size (inch)	0.152
Sqr. Size (metric)	3.86
Neck Dia (inch)	0.152
Neck Dia (metric)	3.86
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.1682
Drill Size (mm)	4.273
Connection (in)	0.194 x 0.152
Connection (mm)	4.93 x 3.86
Length/ Diameter	2.0xD
Useable Length (in)	0.933
Useable Length (mm)	23.7
Coolant Thru 0 With and X without	Yes
Trade Name	YG Tap Cast
Application	Cast Iron, Aluminium
Application Code	K,N
